PDF-25SS-W datasheet, PDF - EEWORLD Datasheet

PDF-25SS-W: DescriptionD Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size233KB，3 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Parametric View All

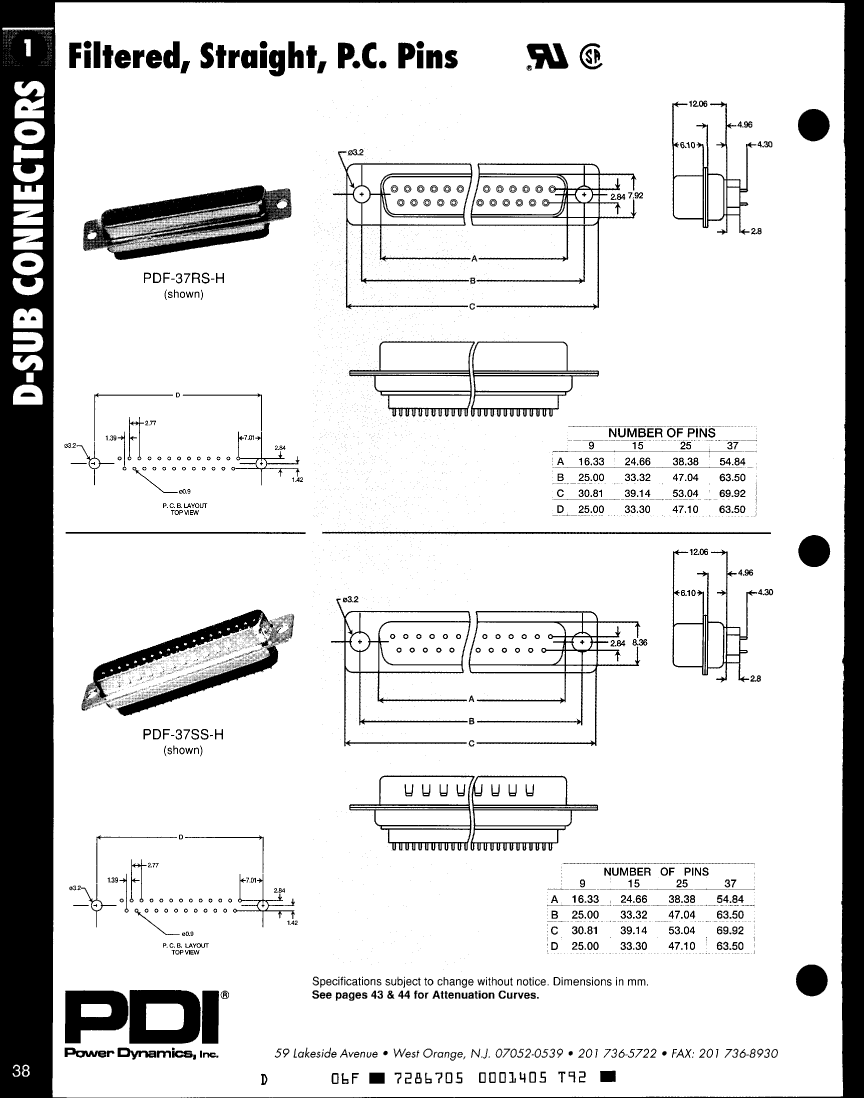

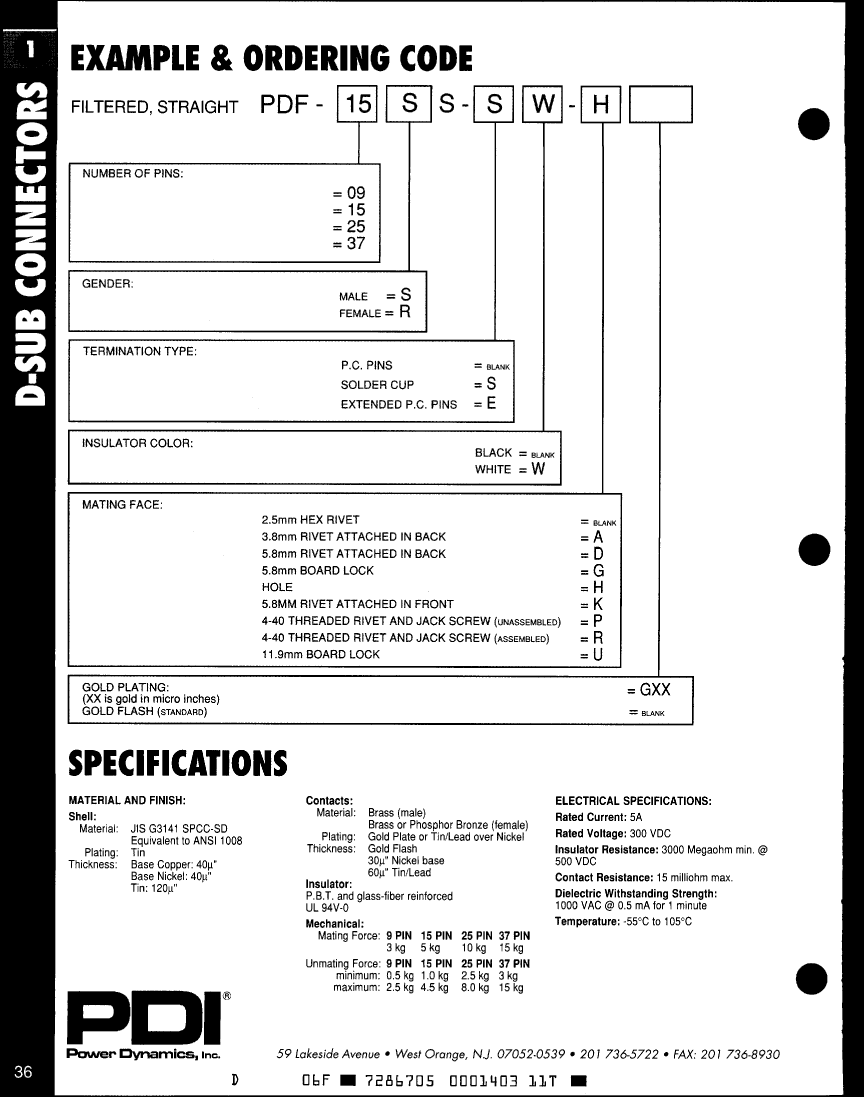

PDF-25SS-W Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	300159936
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FERRITE PLATE FILTER
subject depth	0.306 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	YES
maximum insertion force	3.892 N
Insulation resistance	3000000000 Ω
Insulator color	WHITE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	PDF
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch

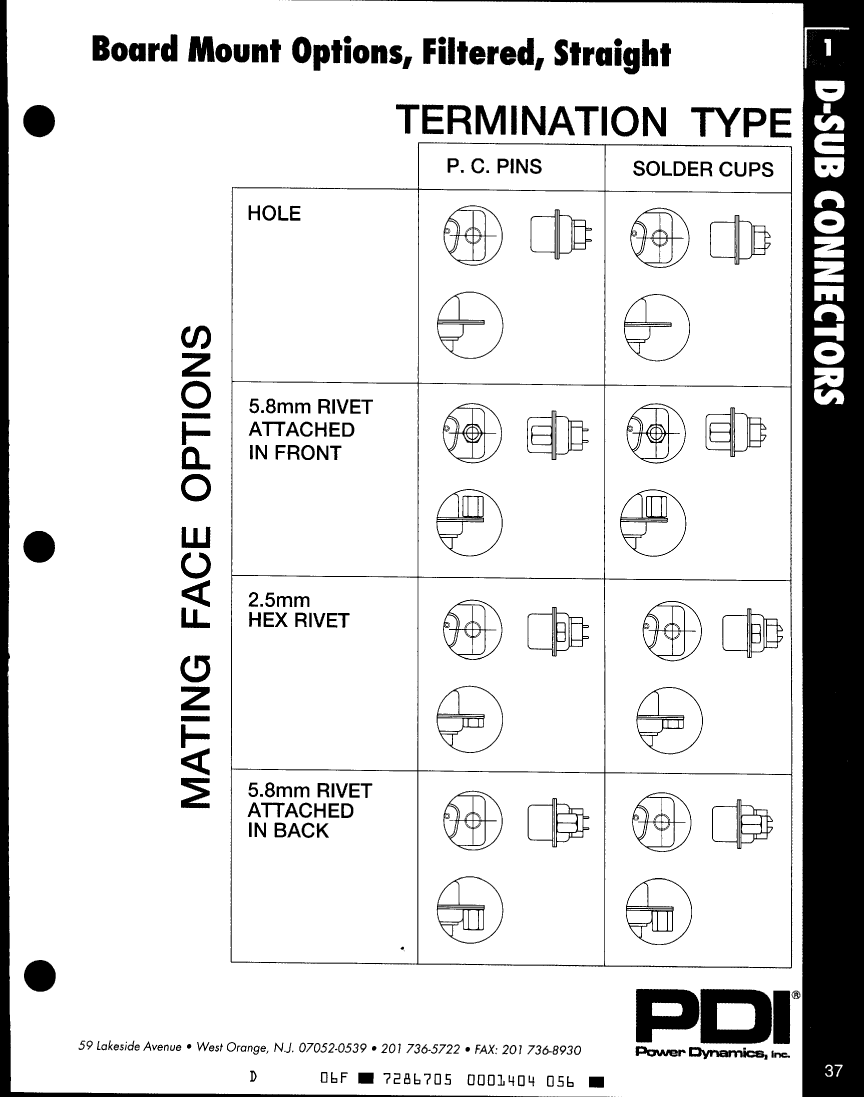

Installation option 2	2.5mm HEX RIVET
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	CARBON STEEL
Terminal length	0.059 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Evacuation force-minimum value	.973 N
