20021612-00060T4LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 20021612-00060T4LF

Preview

20021612-00060T4LF: Descriptionheaders & wire housings 60p eject hdr R/A 1.27x1.27mm btb TH; CategoryThe connector; File Size63KB，1 Pages; ManufacturerFCI [First Components International]; Environmental Compliance

Download Datasheet Parametric View All

20021612-00060T4LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20021612-00060T4LF	-	-	View	Buy Now

20021612-00060T4LF Overview

headers & wire housings 60p eject hdr R/A 1.27x1.27mm btb TH

20021612-00060T4LF Parametric

Parameter Name	Attribute value
Manufacture	FCI
Product Category	Headers & Wire Housings
RoHS	Yes
Type	Latch / Eject Heade
Pitch	1.27 mm
Number of Positions	60
Number of Rows	2
Contact Plating	Gold
Housing Material	Plastic
Termination Style	Through Hole
Mounting Style	-
Mounting Angle	Righ
Contact Material	Nickel
Current Rating	60 A
Packaging	Tube
Factory Pack Quantity	5
Voltage Rating	125 V

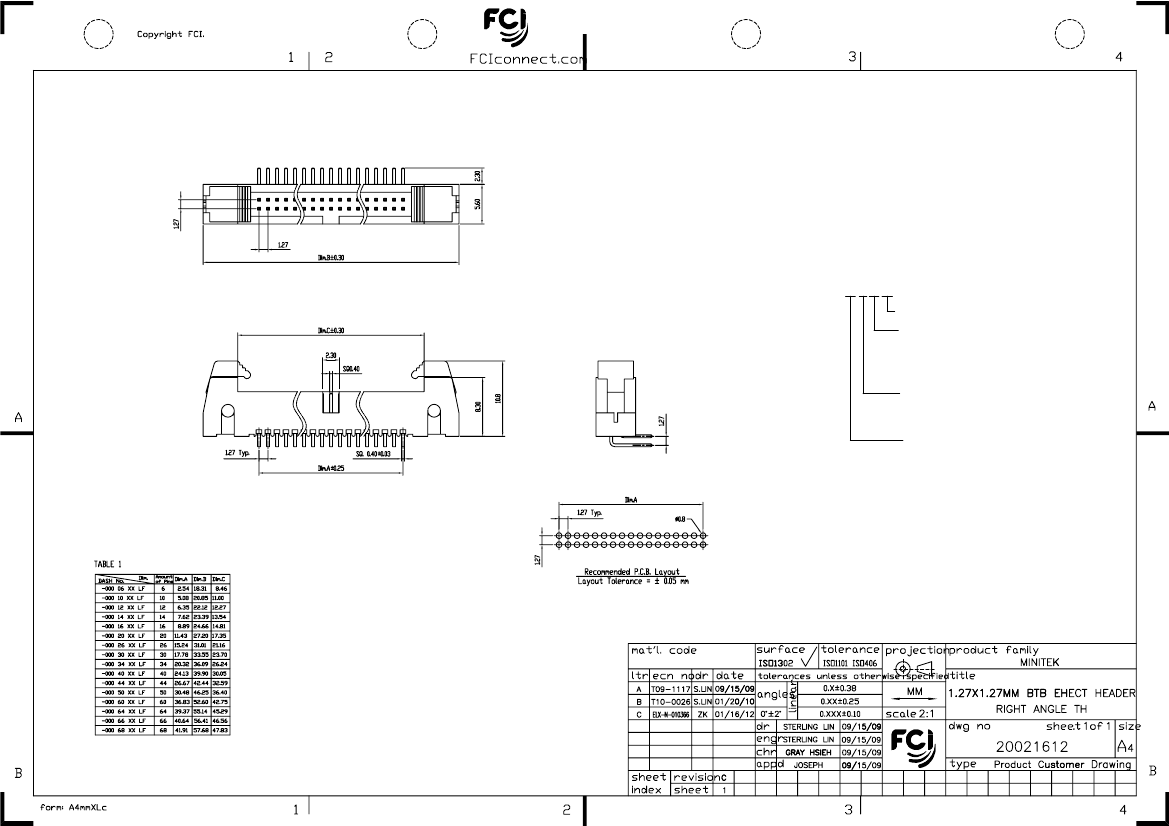

Preview

Download Datasheet

View All

NOTE:

1. MATERIAL,

HOUSING: HIGH TEMP PLASTIC, UL94-V0,BLACK

TERMINAL: COPPER ALLOY , SQ=0.40±0.03MM

2. FINISH:

TERMINAL: GOLD AT CONTACT,

G/F OVER 1um(40u")MIN Ni OVER ALL

3. SPEC.:

PRODUCT SPEC: GS-12-629

PACKING SPEC: GS-14-1420

4. THE HSG. WILL WITHSTAND EXPOSURE TO 260C

PEAK TEMP. FOR 5 SEC. IN A WAVE SOLDER APPLICATION

WITH A PCB.

5. PRODUCT NUMBERING:

20021612 - 0 0 0 XX X X LF

LEAD FREE

PLATING:

1:GOLD FLASH ALL OVER

4:0.25um(10U")GOLD AT CONTACT

8:0.76um(30U")GOLD AT CONTACT

9:1u" GOLD OVER 30u" PdNi AT CONTACT

PACKING

T: TUBE

PIN COUNT

SEE TABLE 1

PDS: Rev :C

STATUS:Released

Printed: Mar 02, 2012
