Anti-Surge, High Power Thick Film Chip Resistors
FEATURES
• Excellent surge pulse capability
• Superior ESD surge characteristics
• High power rating
• AEC-Q200 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
LINKS TO ADDITIONAL RESOURCES
APPLICATIONS
• Automotive
• Industrial
• Telecommunications
• Medical
D
D
3
3
3D Models

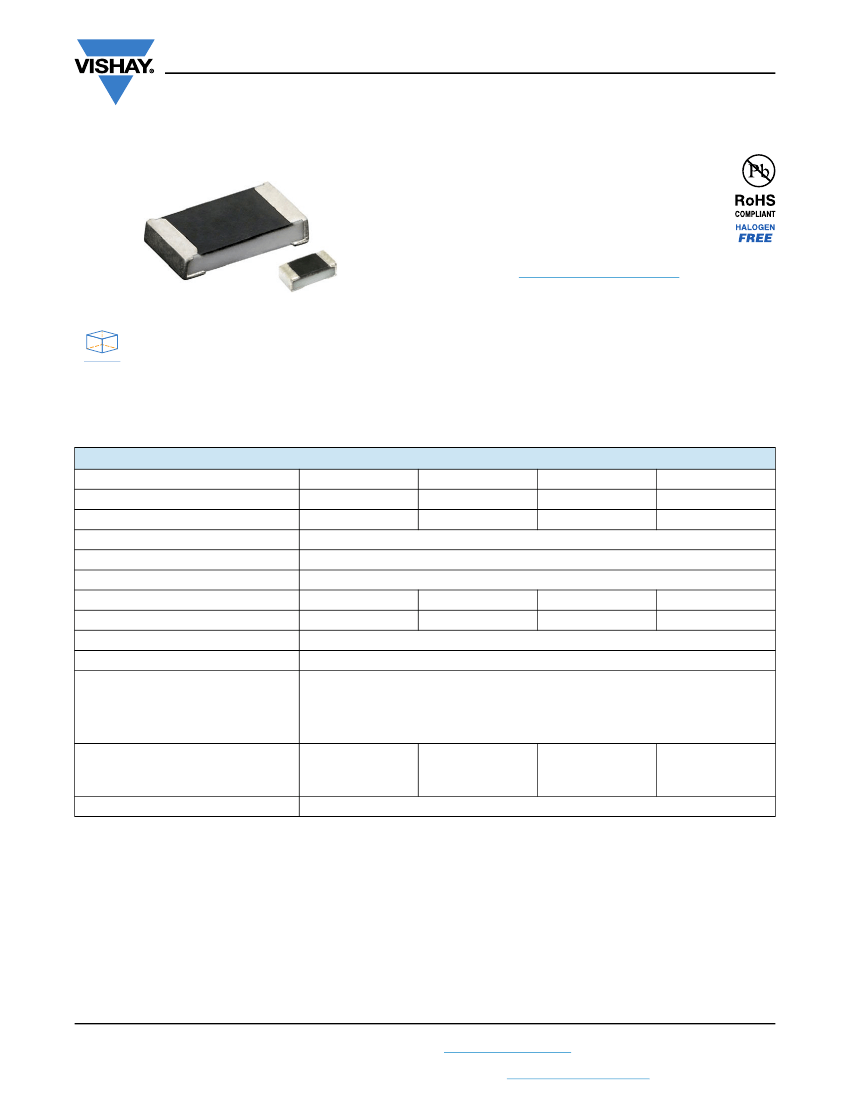

The anti-surge thick film chip resistor series combines a
significantly higher power rating and pulse load
performance as compared to standard chip resistors.
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70 (1)
Operating voltage,
U
max.
AC
RMS
/DC
Permissible film temperature,
ϑ
F max. (1)
Operating temperature range
Max. resistance change at
P
70
for
resistance range, |ΔR/R| after:
1000 h
8000 h
Permissible voltage against ambient
(insulation):
1 min,
U
ins
Failure rate: FIT
observed
Note
(1)
Please refer to APPLICATION INFORMATION below
75 V
100 V
≤
0.1 x 10
-9
/h
200 V
300 V
≤
1.0 %
≤
2.0 %
0.2 W
50 V
RCS0402 e3
0402
RR1005M
RCS0603 e3
0603
RR1608M
RCS0805 e3
0805
RR2012M
RCS1206 e3
1206
RR3126M
1
Ω
to 10 MΩ; jumper (0
Ω)
± 5 %; ± 1 %; ± 0.5 %
± 200 ppm/K; ± 100 ppm/K
0.25 W
75 V
155 °C
-55 °C to +155 °C
0.5 W
150 V
0.5 W
200 V
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Revision: 21-Mar-2022
Document Number: 20065
1
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCS e3
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive set
of instructions established for reproducibility. A cermet film
layer and a glass-over are deposited on a high grade (AI
2
O
3
)
ceramic substrate with its prepared inner contacts on both
sides. A special laser is used to achieve the target value and
the desired power dissipation performance by smoothly fine
trimming the resistive layer without damaging the ceramics.
The resistor elements are covered by a protective coating
designed for electrical, mechanical and climatic protection.
The terminations receive a final pure matte tin on nickel
plating.
The result of the determined production is verified by an
extensive testing procedure on 100 % of the individual chip
resistors. Only accepted products are laid directly into the
tape in accordance with
IEC 60286-3 Type 1a
(1)
.
Vishay
The products do not contain any of the banned
substances as per IEC 62474, GADSL, or the SVHC list,
see
www.vishay.com/how/leadfree.
Hence the products fully comply with the following
directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems. They are suitable for automatic
soldering using wave, reflow or vapor phase as shown in
IEC 61760-1.
The encapsulation is resistant to all cleaning
solvents commonly used in the electronics industry,
including alcohols, esters and aqueous solutions. The
suitability of conformal coatings potting compounds and
their processes, if applied, shall be qualified by appropriate
means to ensure the long-term stability of the whole system.
The resistors are RoHS-compliant, the pure matte tin plating
provides
compatibility
with
lead
(Pb)-free
and
lead-containing soldering processes. Solderability is
specified for 2 years after production or requalification. The
permitted storage time is 20 years. The immunity of the
plating against tin whisker growth has been proven under
extensive testing.
APPROVALS
The resistors are qualified according to AEC-Q200.
Where applicable, the resistors are tested in accordance
with
EN 140401-802
which refers to
EN 60115-1,
EN 60115-8
and the variety of environmental test
procedures of the
IEC 60068
(1)
series.
RELATED PRODUCTS
For more information about products with superior surge
and pulse performance please refer to D/CRCW-IF e3,
Pulse Proof Thick Film Chip Resistors datasheet
(www.vishay.com/doc?20024).
The CRCW-HP e3 product series is designed for those
applications where both enhanced power rating and
superior pulse loading performance is required.
For ordering CRCW-HP e3 please refer to latest edition of
datasheet (www.vishay.com/doc?20043).
For thick film resistors with standard requirements for power
rating, please refer to D/CRCW e3, Standard Thick Film Chip
Resistors datasheet (www.vishay.com/doc?20035)
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474.
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table
Revision: 21-Mar-2022
Document Number: 20065
4
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
