R46KF215000H1K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> R46KF215000H1K

R46KF215000H1K: DescriptionFilm Capacitor, Polypropylene, 560V, 10% +Tol, 10% -Tol, 0.015uF, Through Hole Mount, 5120, RADIAL LEADED; CategoryPassive components capacitor; File Size717KB，11 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric Compare View All

R46KF215000H1K Overview

Film Capacitor, Polypropylene, 560V, 10% +Tol, 10% -Tol, 0.015uF, Through Hole Mount, 5120, RADIAL LEADED

R46KF215000H1K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	RADIAL LEADED
Reach Compliance Code	compli
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 275; SAFETY CLASS X2
capacitance	0.015 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	11 mm
JESD-609 code	e3
length	13 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	10%
Rated (AC) voltage (URac)	275 V
Rated (DC) voltage (URdc)	560 V
Guideline	IEC60384-14
size code	5120
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	10 mm
Terminal shape	WIRE
width	5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

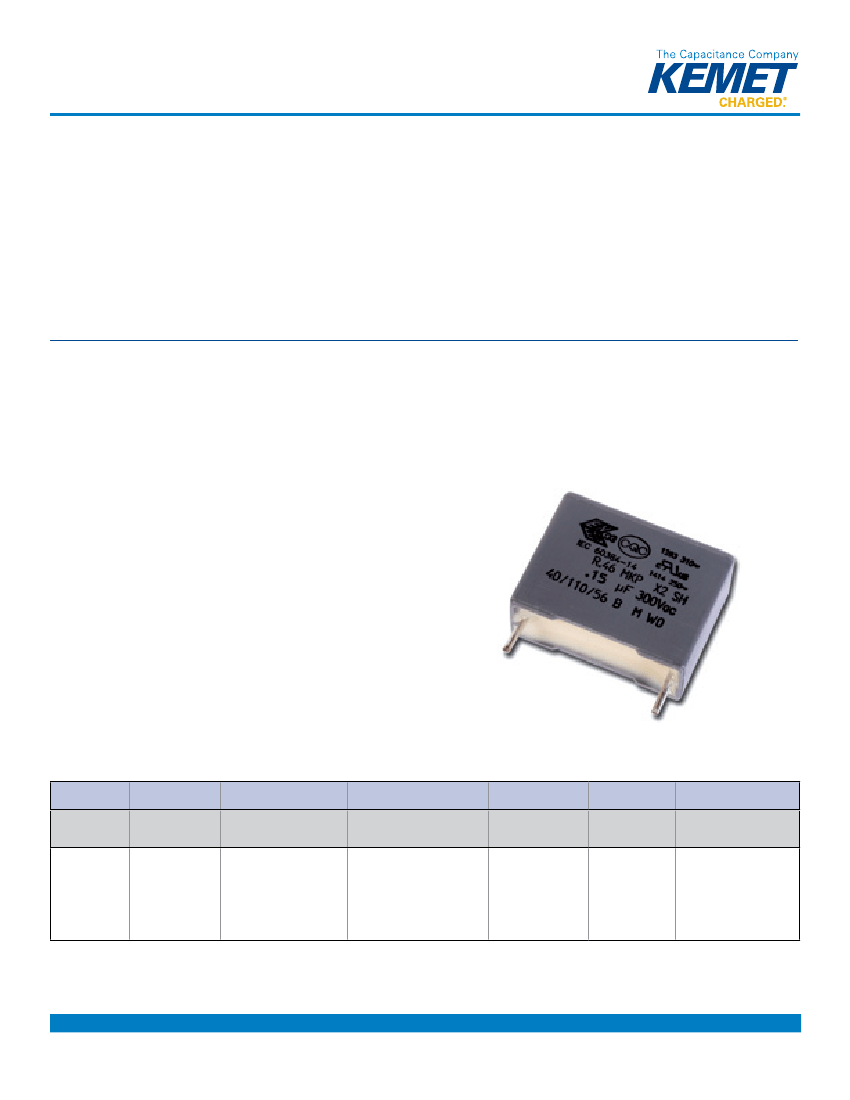

EMI Suppressors Metallized Polypropylene

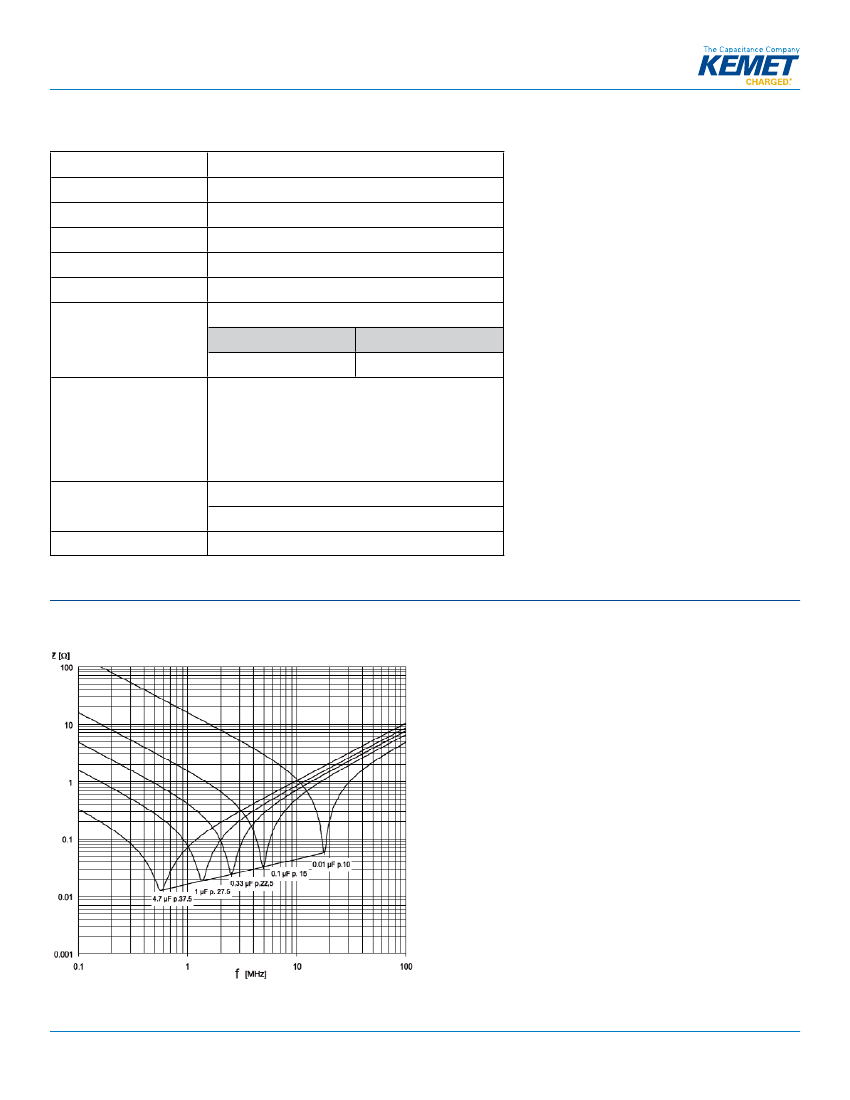

R46 125°C EMI Capacitors Class X2, 275-310 VAC

Construction

Metallized polypropylene film encapsulated with self-extinguishing

resin in a box of material recognized to UL 94 V–0.

Benefits

•

Approvals: ENEC, UL, cUL

Rated Voltage: 275VAC 50/60Hz

Capacitance Range: 0.01–1µF

Pitch: 10.0–22.5 mm

Capacitance Tolerance: ± 20% standard, ± 10% option, ± 5%

on request

Climatic category 40/125/56, IEC 60068-1

Tape and reel in accordance with IEC 60286-2

RoHS-compliant and lead-free terminations

Operating temperature range of -40˚C to +125˚C

100% screening factory test at 2200VDC/1500VAC

Applications

For worldwide use in electromagnetic interference suppression in

all X2 and across-the-line applications. Not for use in series with

the mains.

Ordering Information

R46

Series

X2, Metallized

Polypropylene

Rated Voltage

K = 275VAC

Pitch

F = 10.0

I = 15.0

N = 22.5

R = 27.5

W = 37.5

2100

Capacitance Code (pF)

Digits 2-4 indicate the

first three digits of the

capacitance value.

First digit indicates the

number of zeros to be added.

Packing Option

and Leadform

see Ordering

Options Table

Internal Use

"H" for High

Temperature

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

One WORLD

One Brand

One Strategy

One Focus

One Team

One KEMET

F3006_R46_X2_275-310_125ºC • 8/12/2011

R46KF215000H1K Related Products

	R46KF215000H1K	R46KI215000H1K	R46KF233000H1K	R46KI233000H1K	R46KI210000H1K
Description	Film Capacitor, Polypropylene, 560V, 10% +Tol, 10% -Tol, 0.015uF, Through Hole Mount, 5120, RADIAL LEADED	Film Capacitor, Polypropylene, 560V, 10% +Tol, 10% -Tol, 0.015uF, Through Hole Mount, 7120, RADIAL LEADED	Film Capacitor, Polypropylene, 560V, 10% +Tol, 10% -Tol, 0.033uF, Through Hole Mount, 5120, RADIAL LEADED	Film Capacitor, Polypropylene, 560V, 10% +Tol, 10% -Tol, 0.033uF, Through Hole Mount, 7120, RADIAL LEADED	Film Capacitor, Polypropylene, 560V, 10% +Tol, 10% -Tol, 0.01uF, Through Hole Mount, 7120, RADIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	RADIAL LEADED	, 7120	, 5120	, 7120	, 7120
Reach Compliance Code	compli	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	RATED AC VOLTAGE (V): 275; SAFETY CLASS X2	RATED AC VOLTAGE (V): 275; SAFETY CLASS X2	SAFTEY CLASS: X2	SAFTEY CLASS: X2	RATED AC VOLTAGE (V): 275; SAFETY CLASS X2
capacitance	0.015 µF	0.015 µF	0.033 µF	0.033 µF	0.01 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE
high	11 mm	11 mm	11 mm	11 mm	11 mm
JESD-609 code	e3	e3	e3	e3	e3
length	13 mm	18 mm	13 mm	18 mm	18 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	10%	10%	10%	10%	10%
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	Radial	Radial	Radial	Radial	Radial
method of packing	BULK	BULK	BULK	BULK	BULK
positive tolerance	10%	10%	10%	10%	10%
Rated (AC) voltage (URac)	275 V	275 V	275 V	275 V	275 V
Rated (DC) voltage (URdc)	560 V	560 V	560 V	560 V	560 V
Guideline	IEC60384-14	IEC60384-14	IEC60384-14	IEC60384-14	IEC60384-14
size code	5120	7120	5120	7120	7120
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal pitch	10 mm	15 mm	10 mm	15 mm	15 mm
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE
width	5 mm	5 mm	5 mm	5 mm	5 mm
Base Number Matches	1	1	1	1	-
Maker	-	-	KEMET	KEMET	KEMET
