35301-0650 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35301-0650

35301-0650: Descriptionheaders & wire housings tube packaged for 52 packaged for 5267-NA; CategoryThe connector The connector; File Size48KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

35301-0650 Overview

headers & wire housings tube packaged for 52 packaged for 5267-NA

35301-0650 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	35301
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

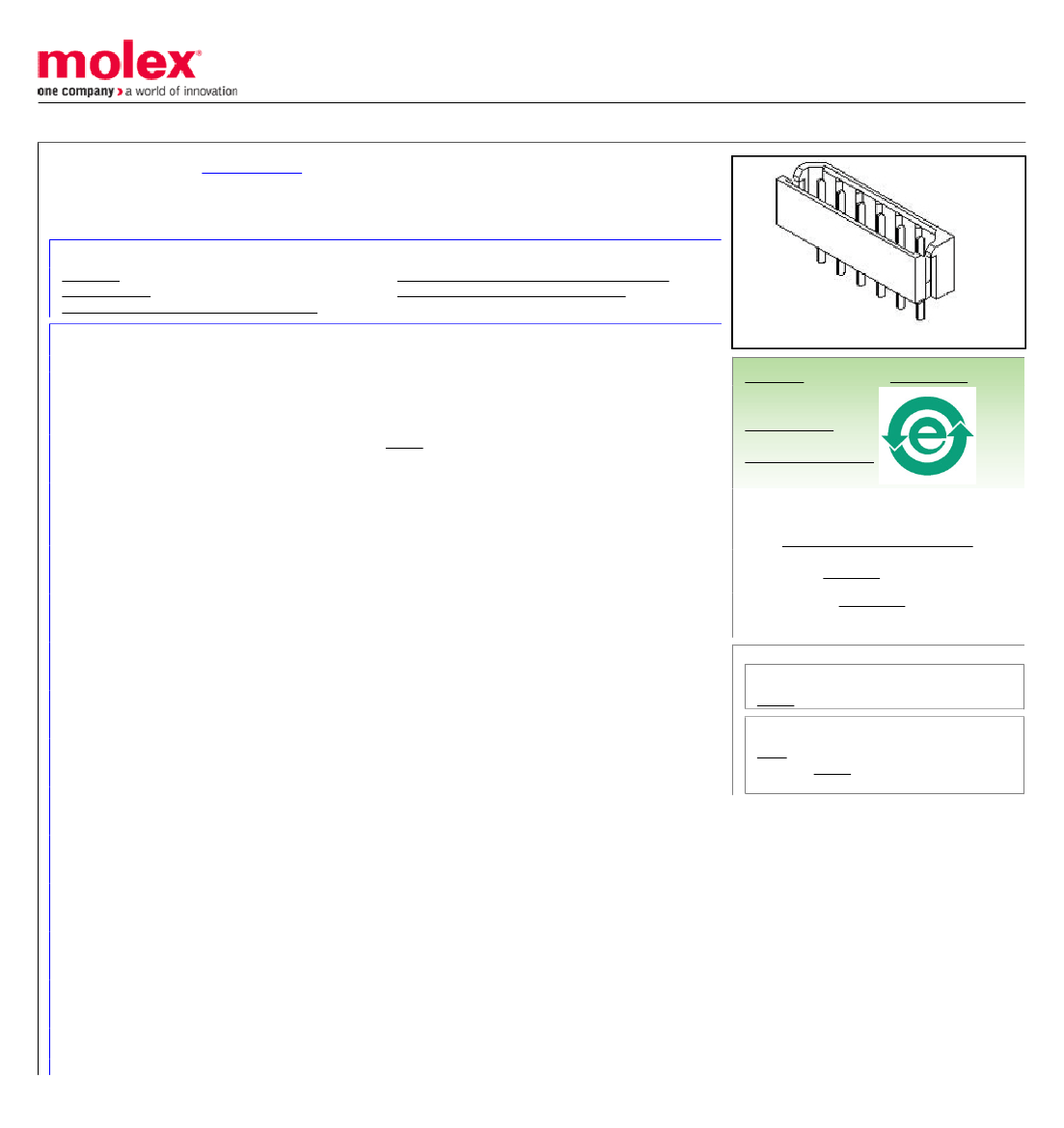

This document was generated on 01/16/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

35301-0650

Active

2.50mm Pitch SPOX™ Wire-to-Board Header, Vertical, Shrouded, Tube Packaged

Version of 5267, 6 Circuits, Tin (Sn) Plating, with Swaged PC Tails

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35301-001 (PDF)

Packaging Specification PK-35301-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Low-Halogen

China RoHS

General

Product Family

Series

Application

Product Name

UPC

PCB Headers

35301

Signal, Wire-to-Board

SPOX™

756054267561

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Yes

Tin

Nylon

0.531/g

Vertical

Yes

1.60mm

Tube

2.50mm

4.064µm

Yes

Partial

-40°C to +105°C

Through Hole

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

35301Series

Mates With

5264 SPOX™ Wire-to-Board Crimp

Housing, 42219 SPOX™ IDT Receptacle

Housing

Electrical

Current - Maximum per Contact
