Part Number

Search

87340-1623

Description
headers & wire housings mgrid rec smt vlpr2 R2 /Pg .76aulf 16ckt
CategoryThe connector    The connector
File Size156KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

87340-1623 Online Shopping

Suppliers Part Number Price MOQ In stock
87340-1623 - - View Buy Now

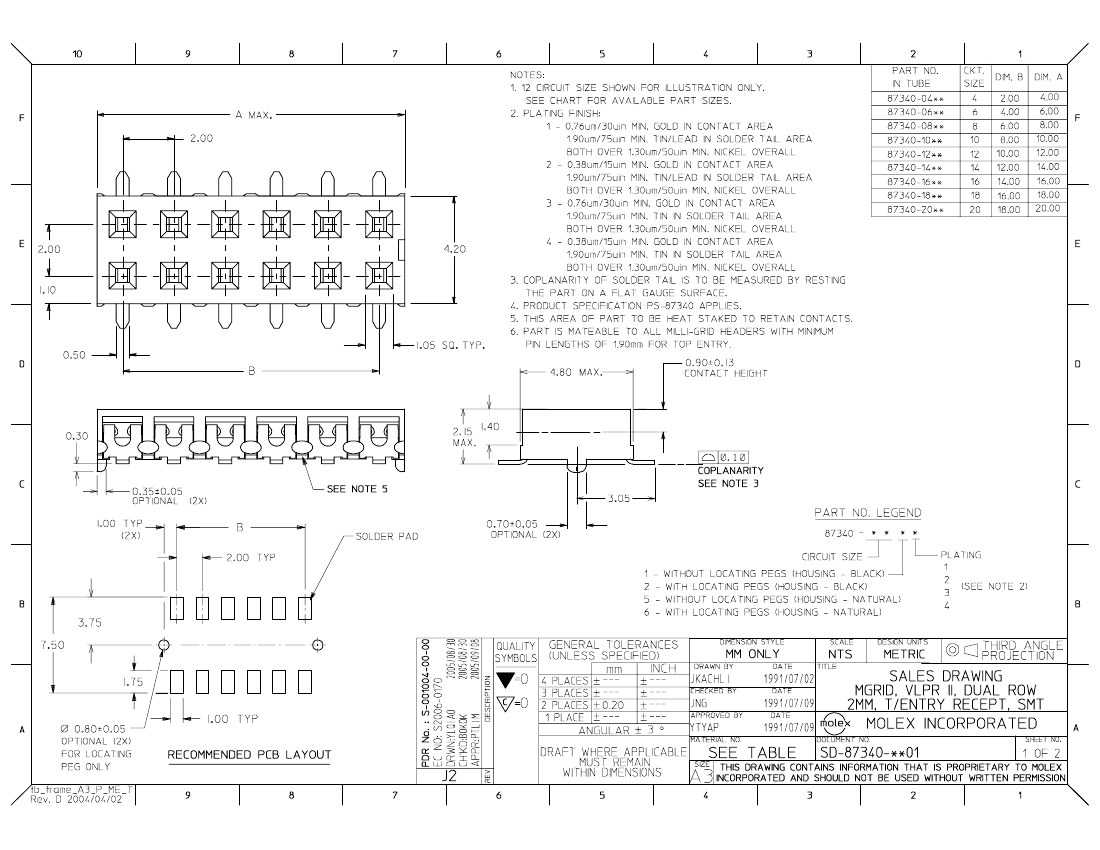

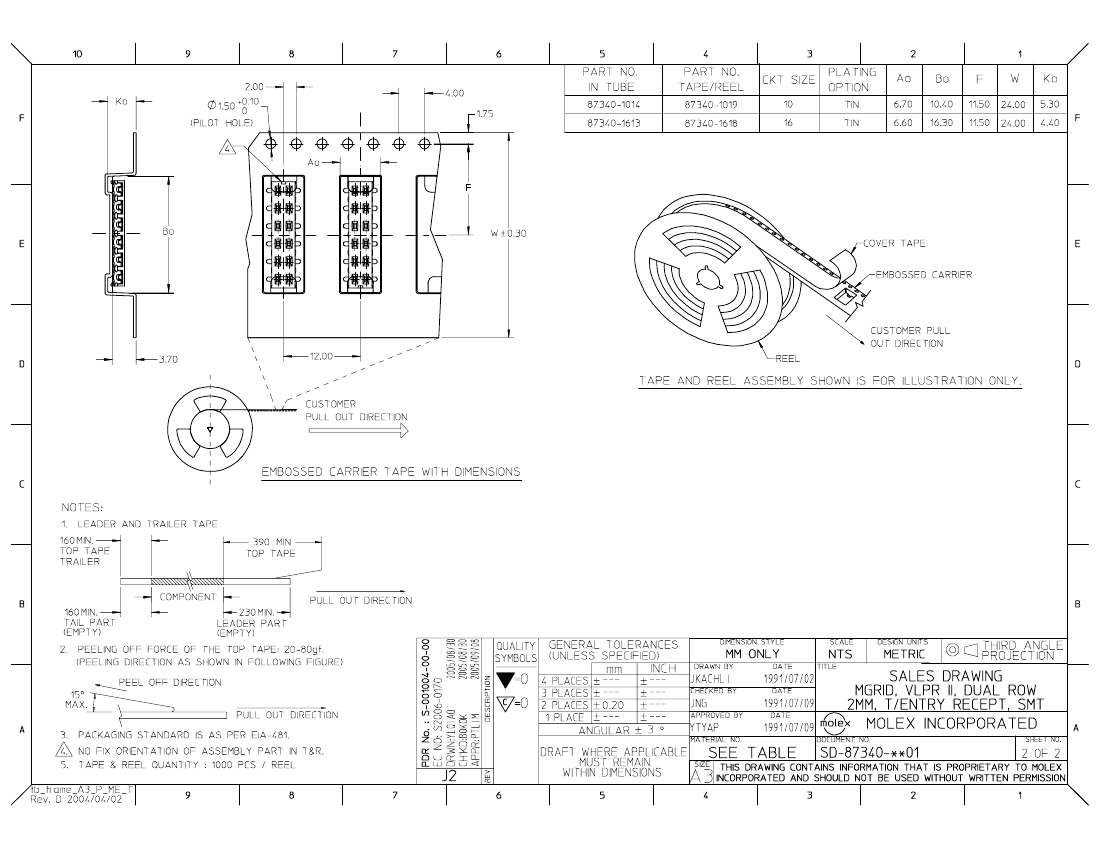

87340-1623 Overview

headers & wire housings mgrid rec smt vlpr2 R2 /Pg .76aulf 16ckt

87340-1623 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresTOP ENTRY
Board mount optionsLOCATING POSTS
body width0.173 inch
subject depth0.085 inch
body length0.63 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN (75) OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance15 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force1.7514 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number87340
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.7404 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts16
Evacuation force-minimum value.1946 N
Base Number Matches1

87340-1623 Related Products

87340-1623 87340-1275
Description headers & wire housings mgrid rec smt vlpr2 R2 /Pg .76aulf 16ckt headers & wire housings mgrid rec smt vlpr2 2 /cap .38aulf 12ckt
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker Molex Molex
Reach Compliance Code compli compli
ECCN code EAR99 EAR99
Other features TOP ENTRY ROHS,ELV COMPLIANT W/TUBE PKG
Board mount options LOCATING POSTS PEG
body width 0.173 inch 0.165 inch
subject depth 0.085 inch 0.085 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (30) OVER NICKEL NOT SPECIFIED
Contact completed and terminated TIN (75) OVER NICKEL TIN OVER NICKEL
Contact point gender FEMALE FEMALE
Contact material PHOSPHOR BRONZE NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR
Contact resistance 15 mΩ 15 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 1000VAC V 1000VAC V
Durability 25 Cycles 25 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force 1.7514 N 1.7514 N
Insulation resistance 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK
insulator material THERMOPLASTIC GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance NO NO
Manufacturer's serial number 87340 87340
Plug contact pitch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch
Mixed contacts NO NO
Installation option 1 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 5.7404 mm 5.7404 mm
Plating thickness 30u inch 15u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 1 A 1 A
Guideline UL, CSA UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 2 mm 2 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 16 12
Base Number Matches 1 1
