BD050-24-C-0-0500-L-E: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug,; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD050-24-C-0-0500-L-E Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug,

BD050-24-C-0-0500-L-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304445660
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.118 inch
subject depth	0.085 inch
body length	0.609 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BD050
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9878 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	24

BD050-24-C-0-0500-L-E Preview

5

3

1

2

4

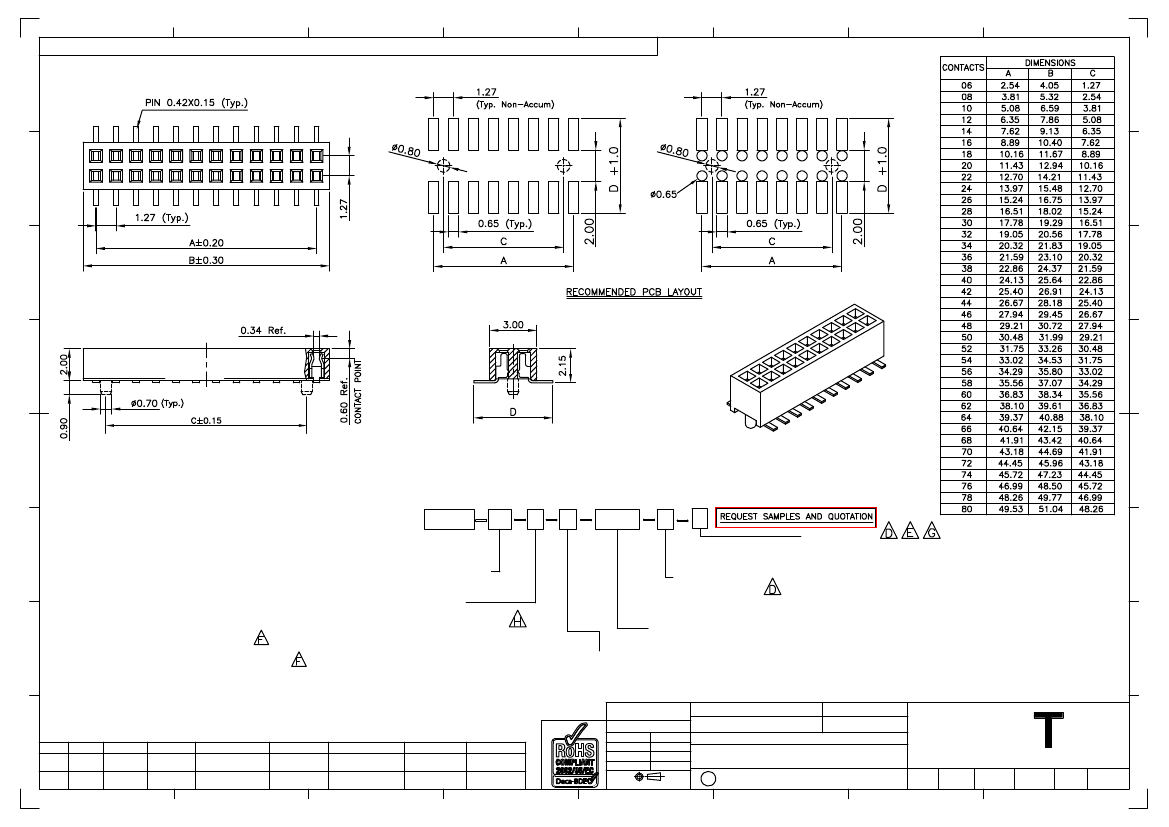

Global Connector Technology Ltd. - BD050: 1.27mm PITCH SOCKET, DUAL ROW, SURFACE MOUNT, LOW PROFILE, DUAL ENTRY

A

6

7

8

A

B

C

D

E

SPECIFICATIONS

规格:

CURRENT RATING

电流额定值：1

AMP

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

CONTACT RESISTANCE

接触电阻值：

20 m OHMS MAX

DIELECTRIC WITHSTANDING

耐电压：

AC 500 V

OPERATING TEMPERATURE

工½温度：

-40° TO +105°C

OPERATING TEMPERATURE

：

230°C FOR 30-60 SECONDS

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

OPTIONS

可选物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

SOLDERING PROCESS

可焊性

:

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

NYLON 6T (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BD025

BD030

BD035

BD038

BD040

BD095

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

E

Ordering Grid

BD050

XX

X

XXXX

X

Packing Options

B = Tape & Reel with Cap (Standard)

D = Tube

E = Tube with Cap

F = Tube with Film

F

No. of Contacts

06 to 80

Contact Plating

A = Gold Flash All Over

C = Tin All Over

Standard = Gold Flash All Over

Locating Peg

0 = No Peg

1 = With Peg

Insulator Material

L = LCP (Standard)

N = Nylon 6T

Dimension D (1/100mm)

(Footprint Width)

Standard - 5.00mm = 0500

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Part Number:-

G

For bottom entry applications, stringent soldering control & pin alignment

are required as lead to pad misalignment could cause incorrect mating.

Date:-

Tolerances

(Except as noted)

Dimensions in mm

SA

PLATING OPTIONS

CHANGED

BD050

Description:-

28 DEC 07

H

PN

AMENDED TO

TOP ENTRY

PN

AMENDED TO

DUAL ENTRY

PN

STANDARD INSULATOR

MATERIAL & PACKING

OPTIONS CHANGED

CB

AE

PACKING OPTIONS SOLDER TEMP & MATES PACKING OPTIONS

WITH INFO. UPDATED

CHANGED

X.°±5°

.X°±2°

X.X ± 0.20

.XX°±1°

X.XX ± 0.15

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

1.27mm PITCH SOCKET, DUAL ROW,

SURFACE MOUNT, LOW PROFILE, DUAL ENTRY

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

A

28/12/07

B

04/03/09

C

17/04/09

D

27/04/09

E

20/05/09

F

27/07/09

G

29/03/10

H

17/05/10

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

H

Drawn by

LYH

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8
