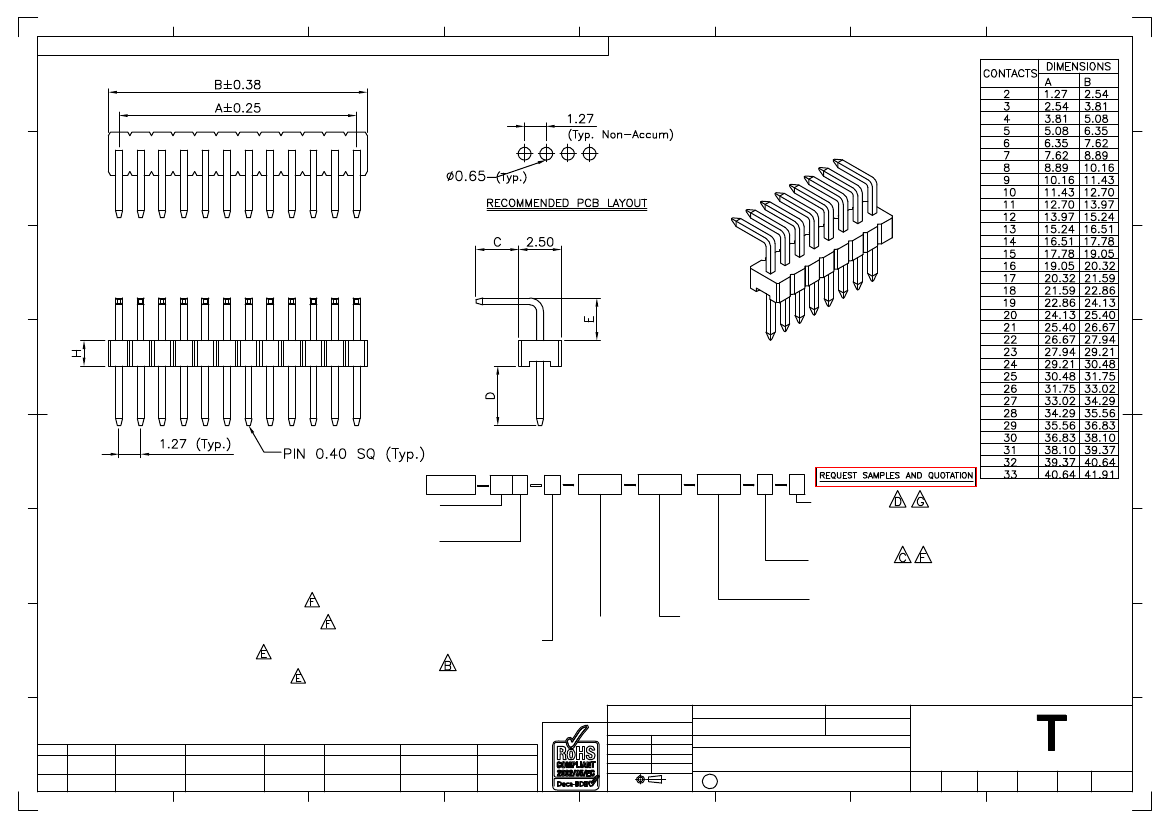

Global Connector Technology Ltd. - BD100: 1.27mm PITCH PIN HEADER, SINGLE ROW, THROUGH HOLE, HORIZONTAL
A
5
6
7
8
A
B
B
C
C
D
D
E
Ordering Grid
SPECIFICATIONS
规格
:
CURRENT RATING
电流额定值：
1 AMP
INSULATOR RESISTANCE
绝缘电阻值：
1000 MEGOHMS MIN.
DIELECTRIC WITHSTANDING
耐电压：
AC 300 V
CONTACT RESISTANCE
接触电阻值：
20m
Ω
Max.
F
OPERATING TEMPERATURE
工½温度：
-40°C TO +105°C
CONTACT MATERIAL
端子物料：
COPPER ALLOY
INSULATOR MATERIAL
绝缘½物料
:
OPTIONS
可选物料
: POLYESTER
聚酯
,
LCP, UL 94-V0 (INSULATOR HEIGHT/
塑胶高度
H = A, B)
OPTIONS
可选物料
: POLYAMIDE
聚醯胺
,
NYLON 6T, UL 94-V0 (INSULATOR HEIGHT/
塑胶高度
H = K)
SOLDERING PROCESS
可焊性
:
G
LCP (STANDARD
标准物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
: 250°C for 5-10 sec
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
NYLON 6T (OPTION
可选物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
: 230°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5sec
MATES WITH
配套之母座
(SUBJECT TO PIN LENGTH
在端子长度适合的条件下
):
BD074
BD075
BD080
BD090
H
By
DETAIL
REV
DATE
LYH
DRAWING
RELEASE
A
28/12/07
PN
PN
CB
AE
E
BD100
No. of Contacts
02 to 33
XX X
X
XXXX
XXXX
XXXX
X
X
Packing Options
G = Plastic Box (Standard)
A= Tape and Reel
D = Tube
Insulator Material
L = LCP (Insulator H = A, B)
N = Nylon 6T (Insulator H = K)
Dimension E (1/100mm)
(Insulator to Pin Bend)
Standard - 2.50mm = 0250
or specify Dimension E
e.g. 3.00mm = 0300
Tol +/- 0.2mm
Contact Plating
A = Gold Flash All Over
B = Selective Gold Flash Contact Area/
Tin On Tail
C = Tin All Over
G = 10µ" Gold Contact Area/Tin On Tail
I = 30µ" Gold Contact Area/Tin On Tail
Standard = Gold Flash All Over
Insulator Height "H"
K = 1.00mm
A = 1.50mm
B = 2.00mm
Standard = 2.00mm
F
Dimension C (1/100mm)
(Post Height)
Standard - 3.00mm = 0300
or specify Dimension C
e.g. 2.50mm = 0250
Tol +/- 0.2mm
Dimension D (1/100mm)
(Tail Length)
Standard - 3.00mm = 0300
or specify Dimension D
e.g. 2.50mm = 0250
Tol +/- 0.2mm
G
Tolerances
(Except as noted)
Part Number:-
Date:-
Dimensions in mm
AE
INSULATOR MATERIAL
UPDATED FOR SPECIFIC
INSULATOR HEIGHTS
BD100
Description:-
28 DEC 07
SA
PACKING OPTIONS
CHANGED
STANDARD INSULATOR
PACKING OPTIONS SOLDER TEMP & MATES
STD INSULATOR
WITH INFO. UPDATED
CHANGED
HEIGHT CHANGED
MATERIAL CHANGED
C
B
D
E
27/04/09
17/04/09
20/05/09
27/07/09
X.°±5°
.X°±2°
X.X ± 0.20
X.XX ± 0.15 .XX°±1°
X.XXX ± 0.10 .XXX°±0.5°
X. ± 0.30
Third Angle Projection
1.27mm PITCH PIN HEADER, SINGLE ROW,
THROUGH HOLE, HORIZONTAL
www.globalconnectortechnology.com
Scale
NTS
GC
Material
See Note
H
F
07/08/09
G
04/06/10
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
G
Drawn by
LYH
E & OE
Sheet No.
1/1
1
2
3
4
5
6
7
8
