2004H-212W-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2004H-212W-L

2004H-212W-L: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, White Insulator, Plug; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

2004H-212W-L Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, White Insulator, Plug

2004H-212W-L Parametric

Parameter Name	Attribute value
Objectid	304372819
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.197 inch
subject depth	0.287 inch
body length	1.02 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	2004H
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	24
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG

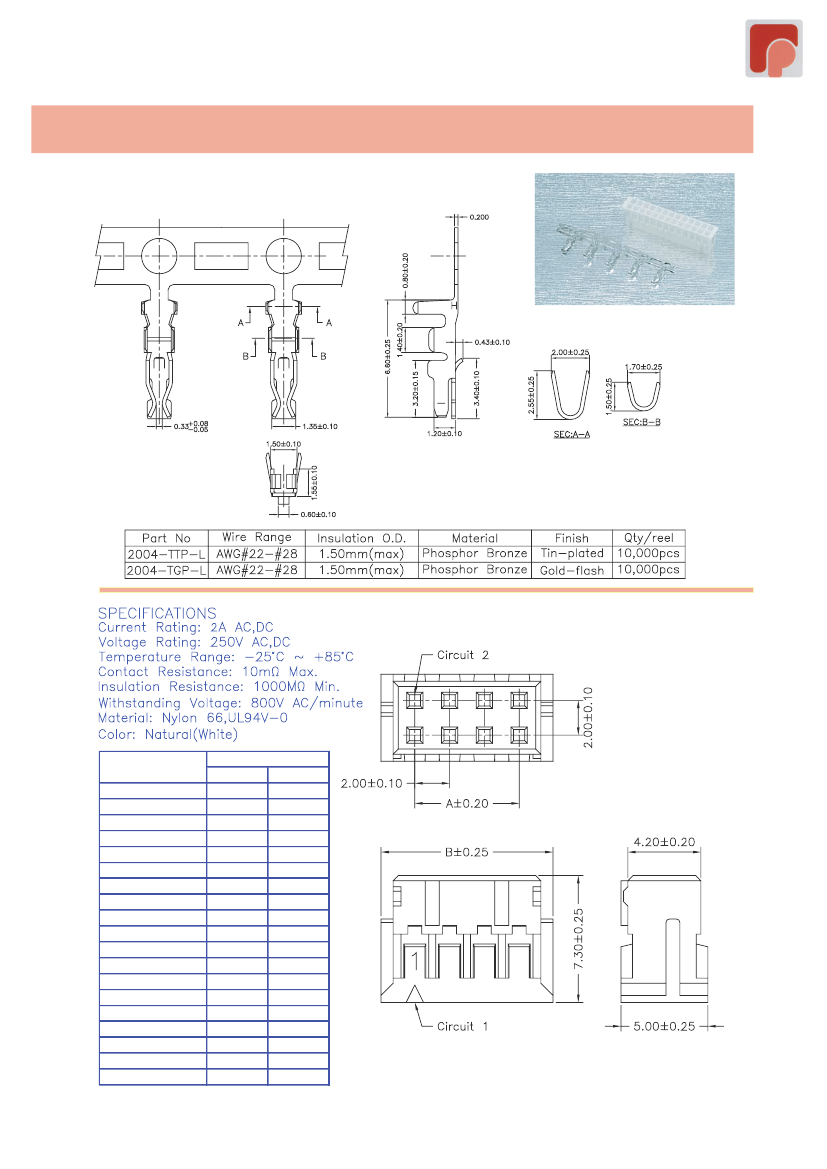

Preview

Download Datasheet

View All

Ratioplast - Electronics

2.0mm TERMINAL / HOUSING

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

Part No.:2004-T-L

PART NO.

2004H-202W-L

2004H-203W-L

2004H-204W-L

2004H-205W-L

2004H-206W-L

2004H-207W-L

2004H-208W-L

2004H-209W-L

2004H-210W-L

2004H-211W-L

2004H-212W-L

2004H-213W-L

2004H-214W-L

2004H-215W-L

2004H-216W-L

2004H-217W-L

2004H-218W-L

2004H-219W-L

2004H-220W-L

Dimensions

2.00

5.90

4.00

7.90

6.00

9.90

8.00

11.90

10.00

13.90

12.00

15.90

14.00

17.90

16.00

19.90

18.00

21.90

20.00

23.90

22.00

25.90

24.00

27.90

26.00

29.90

28.00

31.90

30.00

33.90

32.00

35.90

34.00

37.90

36.00

39.90

38.00

41.90

Part No.:2004H-2XXW-L
