MCS010-PA14T datasheet, PDF - EEWORLD Datasheet

MCS010-PA14T: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

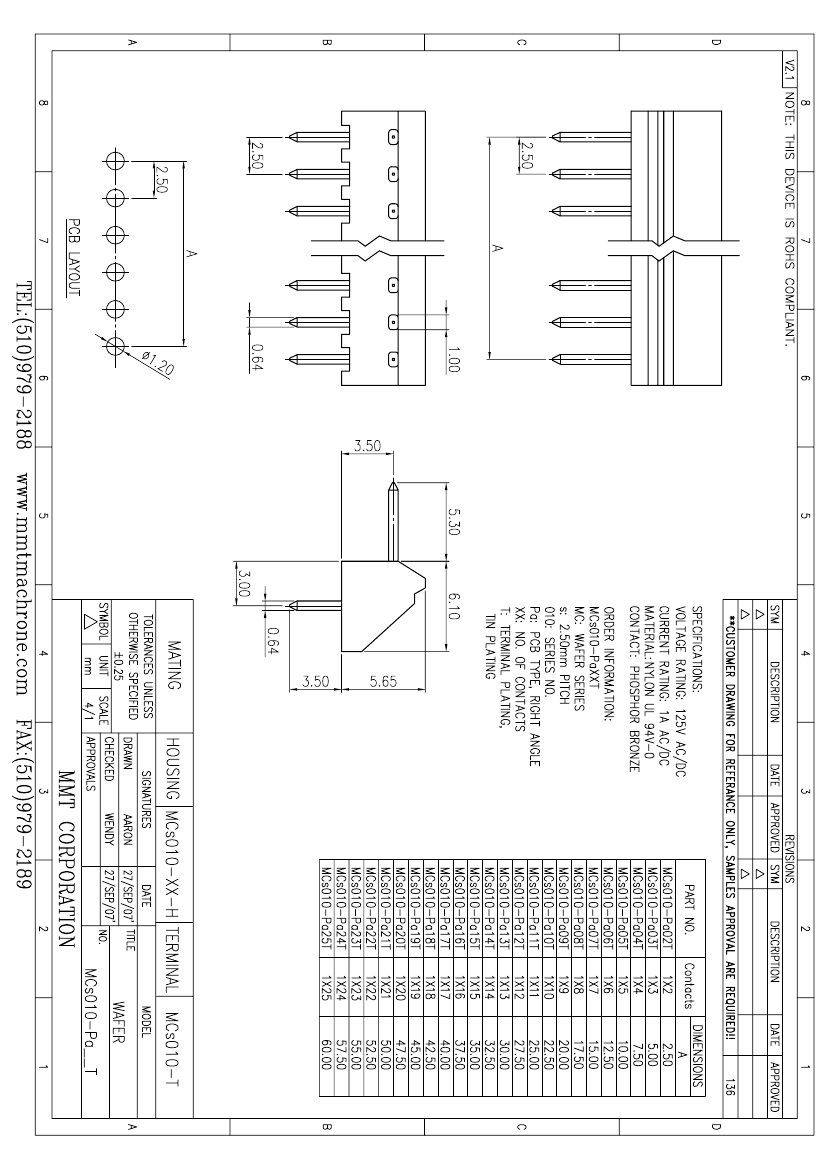

Download Datasheet Parametric View All

MCS010-PA14T Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	304301978
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.222 inch
subject depth	0.24 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	NYLON
Manufacturer's serial number	MCS010
Plug contact pitch	0.098 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	14
