MW-R-14 datasheet, PDF - EEWORLD Datasheet

MW-R-14: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size228KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric View All

MW-R-14 Overview

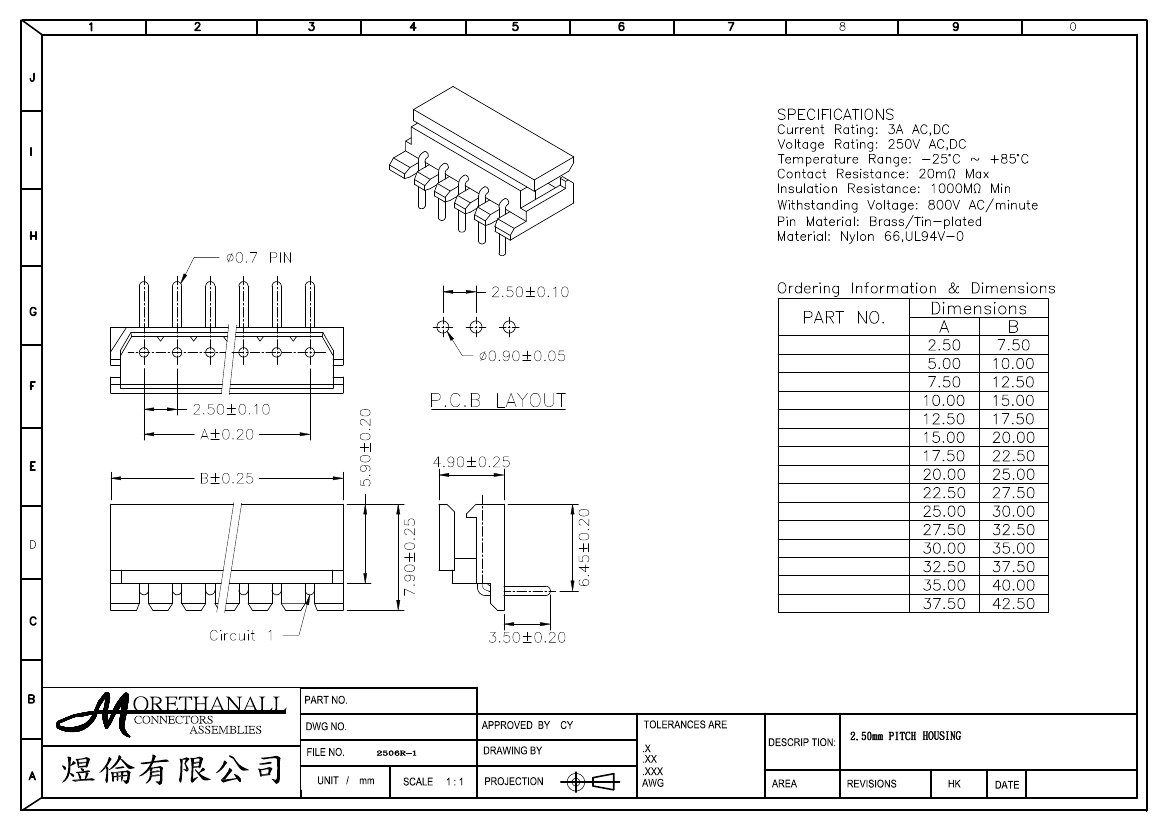

Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	303847255
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.193 inch
subject depth	0.311 inch
body length	1.476 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	MW-R
Plug contact pitch	0.098 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	14
