5504F1-25P02A01 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5504F1-25P02A01

Preview

5504F1-25P02A01: DescriptionD Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40unc,; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerNeltron Industrial Company Ltd; Environmental Compliance

Download Datasheet Parametric View All

5504F1-25P02A01 Overview

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40unc,

5504F1-25P02A01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145154604446
Reach Compliance Code	compliant
Board mount options	SPLIT BOARD LOCK
body width	0.492 inch
subject depth	0.496 inch
body length	2.088 inch
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
Insulation resistance	5000000000 Ω
insulator material	PBT
JESD-609 code	e3
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40UNC
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.84 mm
Rated current (signal)	3 A
Guideline	UL,CSA,TUV
Shell surface	NICKEL
Shell material	IRON
Housing size	3/B
Terminal length	0.13 inch
Terminal pitch	2.77 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	96V-0

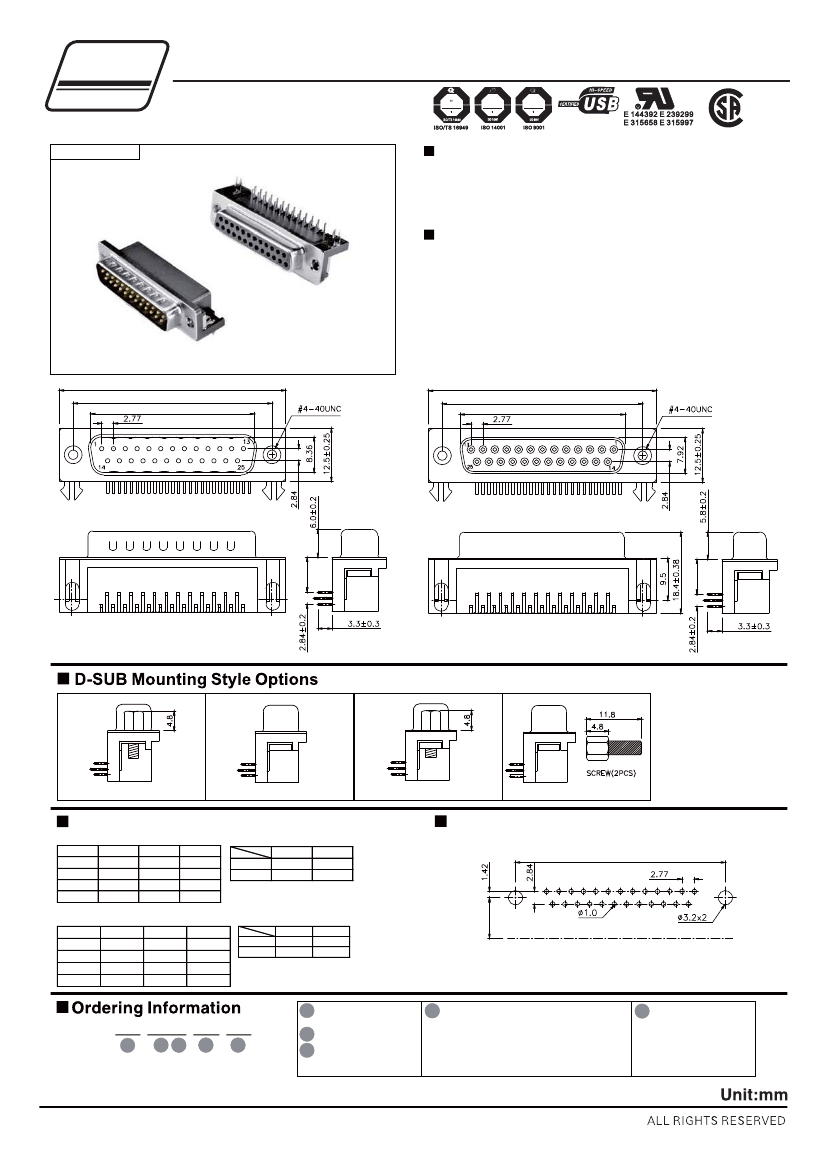

5504F1-25P02A01 Preview

Neltron

Connectors

RoHS Compliant

D-SUB Series

D

-SUB

Standard Dip R / A

T

ype904 - 90 * 62

TUV

SUD

TUV

SUD

TUV

SUD

Speciﬁcations

1. Current Rating: 3.0A AC/DC.

2. Voltage Rating: 250V AC/DC.

3. Contact Resistance: 30m ohm. max.

4. Insulation Resistance: 5000M ohm. Min.

5. Withstanding Voltage: 1000V AC for one minute.

6. Operating Temperature Range:-40 to +85 .

Material and Finish

1. Insulator: PBT(UL94V-0)

.

2. Contact :Copper Alloy Nickel Undercoated,

Gold Plated on Contact Area

Tin Plated on Solder Tail

3. Shell:Metal Iron

Nickel Plated

Dim C

?

0.38

Dim B

?

0.25

Dim A

?

0.13

Dim C

?

0.38

Dim B

?

0.25

Dim A

?

0.13

Dim X

P/N: 5504F1-XXP-XX-XX

P/N: 550F1-XXS-XX-XX

01 Type

02 Type

02A Type

02B Type

Engineering Dimension

P/N: 5504F1-XXP-XX-XX

Recommended PCB Layout

Dim. X

8.08

10.30

Dim. Y

9.50

11.72

Dim B

?

0.25

Circuits

9

15

25

37

Dim. A

16.92

25.25

38.96

55.42

Dim. B

24.99

33.32

47.04

63.50

Dim.C

30.81

39.14

53.04

69.32

F1

F2

P/N: 5504F1-XXS-XX-XX

Circuits

9

15

25

37

Dim. A

16.33

24.66

38.38

54.83

Dim. B

24.99

33.32

47.04

63.50

Dim.C

30.81

39.14

53.04

69.32

F1

F2

Dim. X

8.08

10.30

Dim. Y

9.50

11.72

1

F1:8.08mm Footprint

4

01:Board Lock/Hex Screw

Dim Y

5504 FX - XXP - XX - XX

1

2

3

4

5

F2:9.40mm Footprint

2

No. of Contacts

3

P:Male

S:Female

02:Rivet W/Board Lock

02A:Rivet W/Board Lock/Hex Screw

02B:Rivet W/Board Lock/

Attached Hex Screw

5

01:Gold plated

03:Selective Gold

Plated

X

2017-2026

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
