2R5TPC330M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 2R5TPC330M

2R5TPC330M: DescriptionTantalum Capacitor, Polarized, Tantalum, 2.5V, 20% +Tol, 20% -Tol, 330uF, 2917,; CategoryPassive components capacitor; File Size41KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

2R5TPC330M Overview

Tantalum Capacitor, Polarized, Tantalum, 2.5V, 20% +Tol, 20% -Tol, 330uF, 2917,

2R5TPC330M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	912049105
package instruction	, 2917
Reach Compliance Code	compliant
YTEOL	.44
capacitance	330 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
high	1.9 mm
JESD-609 code	e4
length	7.3 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	2.5 V
series	TPC
size code	2917
Terminal surface	Palladium/Gold (Pd/Au)
width	4.3 mm

Preview

Download Datasheet

View All

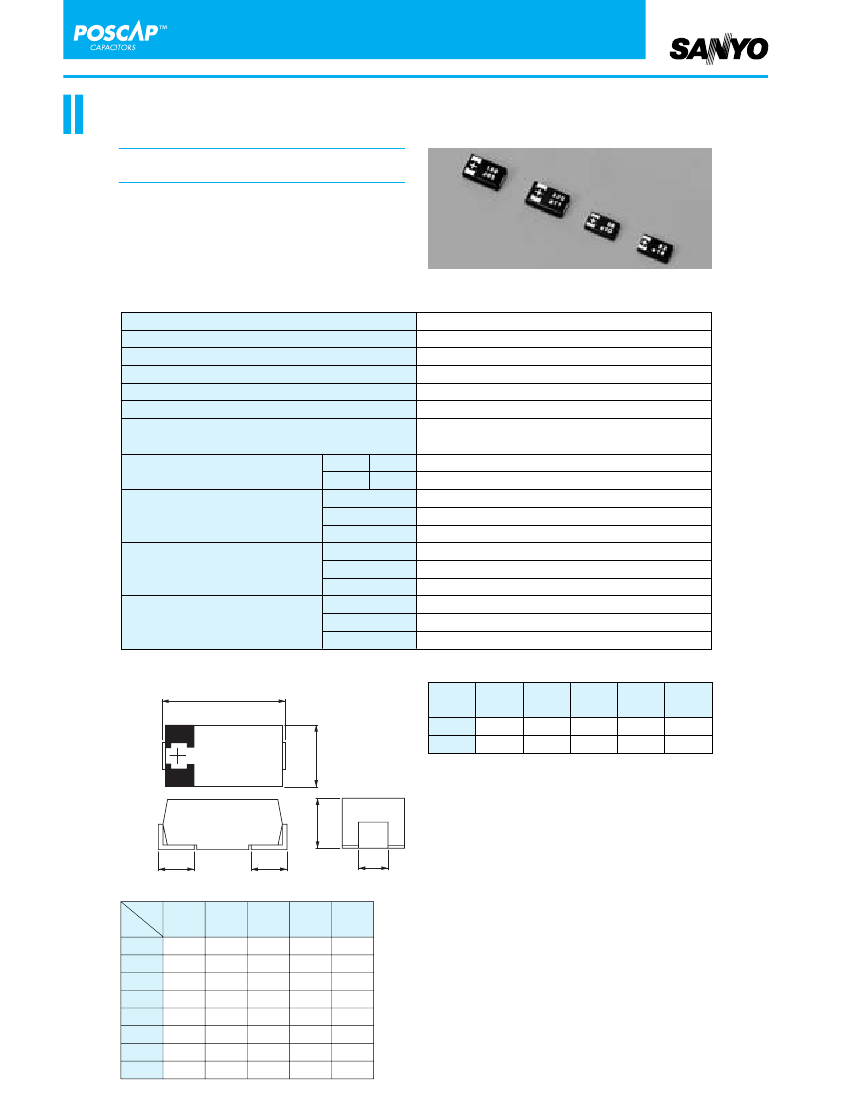

TPC Series

Low Profile Products

TPC series has low profile and low ESR. TPC

series aids in the miniaturization of any pro-

ducts.

■

Specifications

Operating temperature range

（℃）

Rated capacitance range

（120Hz/20℃）

（μF）

Capacitance tolerance

（120Hz/20℃）

Rated voltage

（V.DC）

Dissipation Factor

（D.F.）

（120Hz/20℃）

（％）

Leakage current (Rated voltage applied, after 5 minutes)

μA）

（

Equivalent series resistance

ESR

（mΩmax.）

（100kHz/20℃）

Temperature characteristics of

Impedance ratio

（100kHz/＋20℃）

Endurance

（105℃,2000h,

rated voltage applied)

C1 size:1000h

Damp heat (Steady state)

（60℃,90

to 95%RH,500h,No voltage

applied)

Surge

（105℃,1000

cycles, 1kΩdischarge

resistance,surge voltage applied)

−55℃

＋105℃

Z/Z

20℃

Z/Z

20℃

1.0 to 2.0

0.6 to 1.0

Within±20％ of the initial value

≦1.5

times the initial limit

≦The

initial limit

Within＋40％,

−20％

of the initial value

≦1.5

times the initial limit

≦3

times the initial limit

Within±5％ of the initial value

≦The

initial limit

≦3

times the initial limit

−55

＋105

33 to 330

M:±20％

2.5 to 10

≦10.0

≦0.1CV

Please see the attached characteristics list

△C/C

D.F.

L.C.

△C/C

D.F.

L.C.

△C/C

D.F.

L.C.

■

Dimensions (unit: mm)

(C1, D2size)

Size

code

（±0.2）（±0.2）（±0.1）（±0.2）（±0.1）

6.0

7.3

3.2

4.3

1.4

1.9

1.3

1.8

2.4

k30

■

Size List

（SV）

μF

2.5

4.0

6.3

8.0

10.0

（3.2）（5.0）（8.0）（10.0）（13.0）

100

150

220

330
