803-13-030-10-007000 datasheet, PDF

Datasheet> All Categories > The connector> 803-13-030-10-007000

803-13-030-10-007000: Descriptionheaders & wire housings 30p,2R fml,20-18awg 4.5A,soldercup strip; CategoryThe connector; File Size569KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

803-13-030-10-007000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	803-13-030-10-007000	-	-	View	Buy Now

803-13-030-10-007000 Overview

headers & wire housings 30p,2R fml,20-18awg 4.5A,soldercup strip

803-13-030-10-007000 Parametric

Parameter Name	Attribute value
Manufacture	Mill-Max
Product Category	Headers & Wire Housings
RoHS	Yes
Pitch	2.54 mm
Number of Positions	30
Number of Rows	2
Contact Gende	Socket (Female)
Contact Plating	Gold
Housing Material	Polyeste
Termination Style	Solder Cu
Mounting Style	-
Mounting Angle	Vertical
Current Rating	4.5 A
Row Spacing	2.54 mm
Voltage Rating	100 V
Wire Gauge	20-18

Preview

Download Datasheet

View All

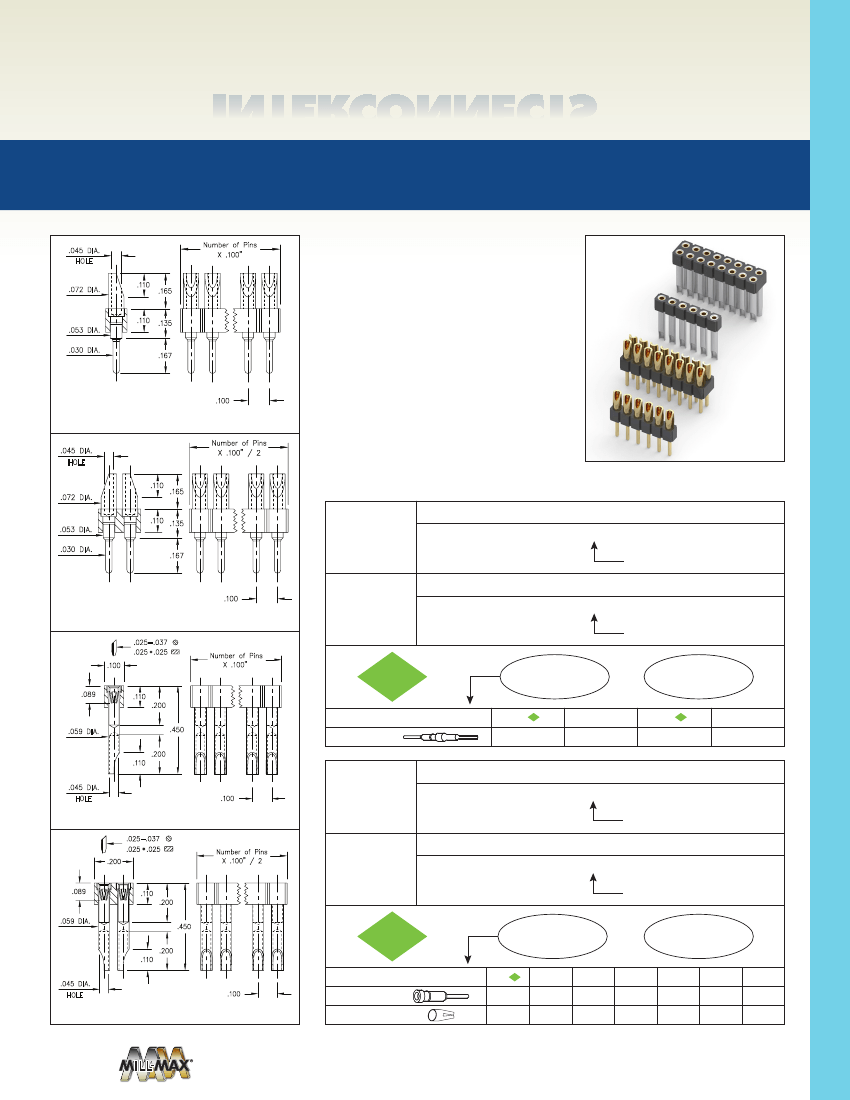

INTERCONNECTS

SERIES 800, 801, 802, 803 • .100” GRID SOLDER CUP

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

Number of Pins

X .100"

.045 DIA.

HOLE

.110

•

Series 800 and 802 use MM #1107 pins. See

page 218 for details

.072 DIA.

.165

•

Series 801 and 803 use MM #1134 pin

.110

.053 DIA.

.030 DIA.

.135

receptacles and accept pin diameters from

.025”-.037” and .025” square pins. See page

177 for details

4-finger BeCu #47 contact rated at 4.5 amps.

See page 256 for details

20 AWG wire

.167

•

Series 801 and 803 receptacles use Hi-Rel,

.100

FIG. 1

.045 DIA.

HOLE

.110

.072 DIA.

Number of Pins

X .100" / 2

•

Solder cups are pre-aligned and accept up to

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

.165

ORDERING INFORMATION

Series 800...007

Single Row Solder Cup / Solder Tail

800-XX-0_ _-10-007000

Specify number of pins

02-64

.053 DIA.

.030 DIA.

.110 .135

FIG. 1

Series 802...007

.100

.167

Double Row Solder Cup / Solder Tail

802-XX-0_ _-10-007000

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.025-.037

.025 * .025

FIG. 2

RoHS - 2

Specify number of pins

Number of Pins

X .100"

.100

2011/65/EU

.089

.110

.200

.450

.200

.110

.045 DIA.

HOLE

XX=Plating Code

See Below

μ”

SPECIFY PLATING CODE XX=

Pin Plating

200

μ”

.059 DIA.

Series 801...007

Single Row Solder Cup Sockets

801-13-0_ _-10-007000

02-64

FIG. 3

.025-.037

.025

.200

.100

FIG. 3

Series 803...007

Specify number of pins

Number of Pins

X .100" / 2

Double Row Solder Cup Sockets

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.089

.110

.200

Specify number of pins

.450

.059 DIA.

2011/65/EU

.200

.110

.045 DIA.

HOLE

RoHS - 2

XX=Plating Code

See Below

μ”

SPECIFY PLATING CODE XX=

.100

FIG. 4

Sleeve

(Pin)

Contact

(Clip)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 61 | INTERCONNECTS

FIG. 4

803-13-0_ _-10-007000
