2201-16-10-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2201-16-10-1

2201-16-10-1: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2201-16-10-1 Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking

2201-16-10-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.217 inch
subject depth	0.335 inch
body length	0.531 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2201
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

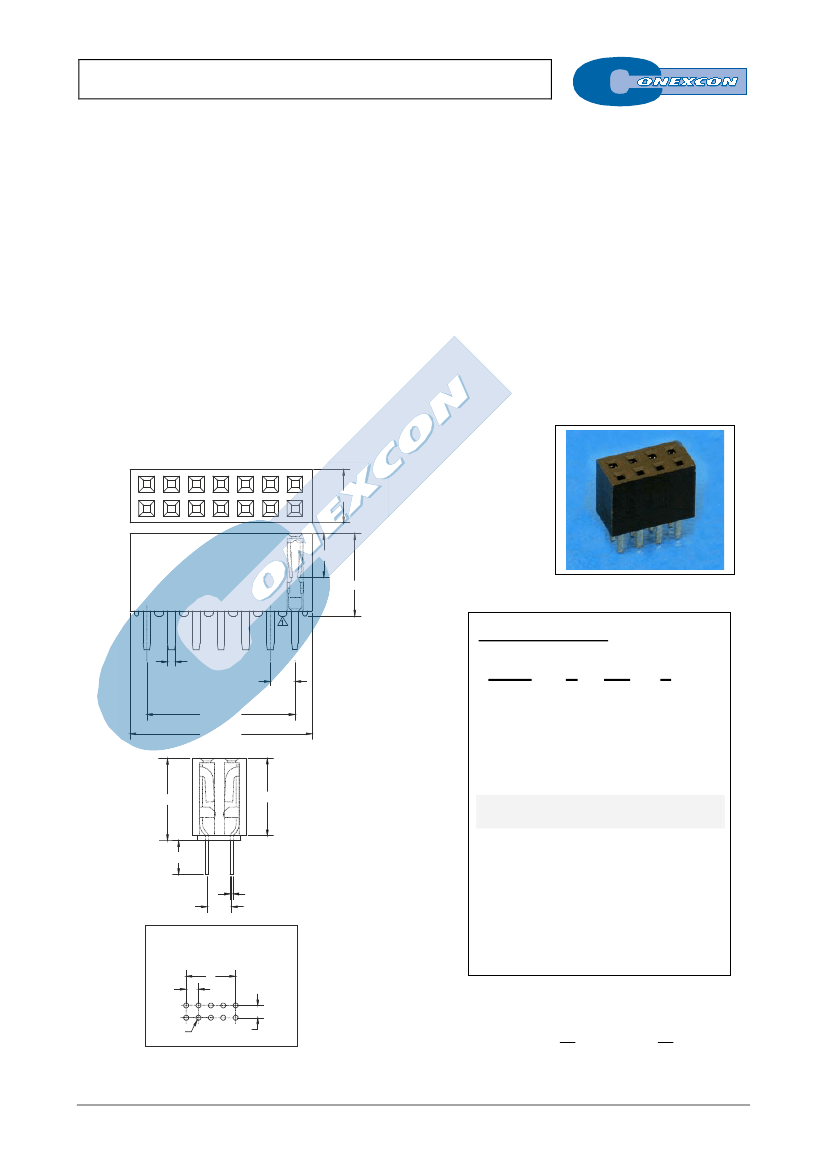

DUAL ROW VERTICAL SOCKET 8.50 mm.

2201 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with pin header 2.54 mm pitch 2558, 2559, 2458,

•



2582, 2583, 2666, 2667, 2468 and 2579 series

Accept 0.64 square pin

8.50 mm. height

Dual beam contact with different plating



Voltage rating: < 250V



Current rating: < 3 A



Contact resistance: < 20 mΩ



Dielectric withstanding voltage: 600 V AC/minute



Insulation resistance: >1000 MΩ



Capacitance: < 2 pF at 1 KHz

Mechanical Features

Materials



Insulator: PBT UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant



Insertion force receptacle/plug: < 0,40 Kgf/pin

Unmating force receptacle/plug: > 0,03 Kgf/pin

Contact retention force to housing: > 0,50 Kgf/pin

Durability: 50 cycles

Dimension Information

5.50±0.15

4.50

8.50±0.15

Ordering Information:

0.80±0.05

2.54±0.05

A±0.10

B±0.25

2201 -

T-

XX-

1. Connector Series

2. (T) Contact Plating

8.50±0.15

8.00



T =

Tin plated



T =

Gold flash over nickel

Recommended Finish

3.50±0.25

0.30±0.03

2.54±0.15



T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

RECOMMENDED HOLE PATTERN

3. (XX) Number of circuits



Available in 4 through 80 circuits

2.54

DIMENSIONS

ø1.02

2.54







−











2.54







 +

0.80





(XX) = Number of circuits

E-XX

FULL LINE CATALOGUE
