3-2110852-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-2110852-1

3-2110852-1: Descriptionheaders & wire housings #8 pcp/vrt mnt/tri 14 PC kit; CategoryThe connector; File Size262KB，6 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

3-2110852-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-2110852-1	-	-	View	Buy Now

3-2110852-1 Overview

headers & wire housings #8 pcp/vrt mnt/tri 14 PC kit

3-2110852-1 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Headers & Wire Housings
RoHS	Yes
Pitch	4.14 mm
Termination Style	Through Hole
Mounting Style	-
Mounting Angle	Vertical
Factory Pack Quantity	1

Preview

Download Datasheet

View All

General Information

Kit Part Number:

Description:

Application:

3-2110852-1

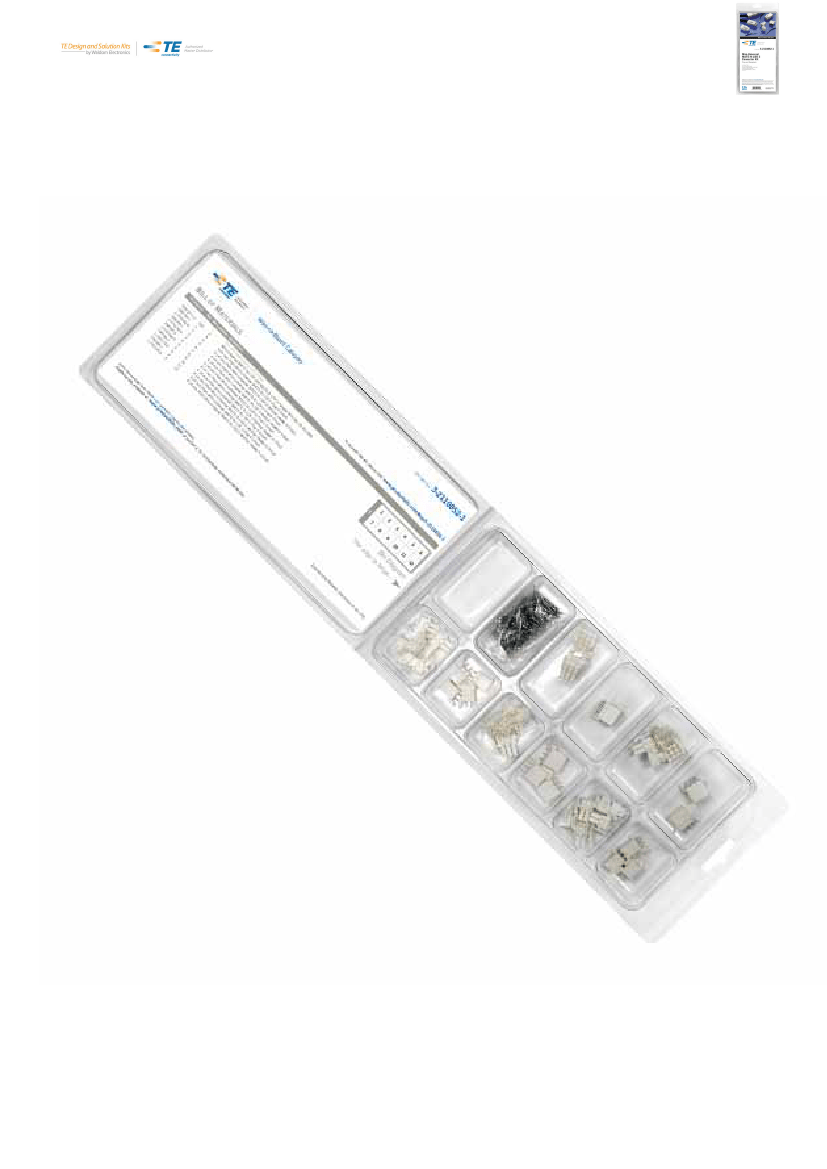

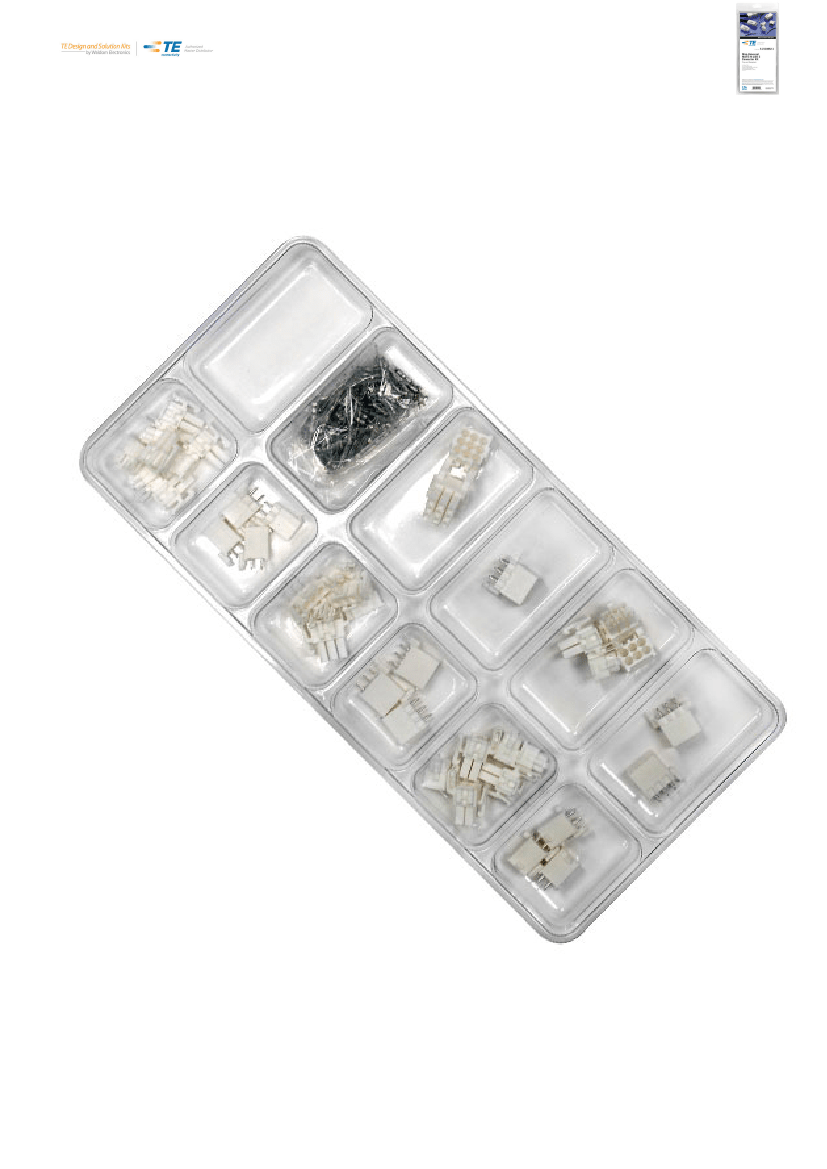

Vertical Header and Plug Connector Kit

Appliance Industries, Fan Modules, HVAC Systems, Lighting Applications, Power Supplies, White Goods, Wiring

Harness Assemblies

Family:

TE Brand:

Solution:

Product Type:

Number of Pieces:

RoHS:

Specifications

Circuit Size(s):

Color:

Crimp Terminal:

Current Rating:

Flammability Rating:

Mounting Style:

Orientation:

Pitch:

Rows:

Tool Included:

Voltage Rating:

Wire Gauge (AWG):

Product Highlights

2, 3, 4, 6, 9

White

Female

2.85-5.7A

UL94V-0

PCB Through Hole

Vertical Headers

4.14mm (.163")

Single Row, Dual Row, Matrix

600V

26-22

Mini-Universal MATE-N-LOK 2

AMP Products

Off the Board

Wire-to-Board Connectors

126

Yes

Mates with standard Mini-Universal MATE-N-LOK headers and connectors. One molded piece, secondary locking plug and cap housing

assemblies. Three-point stabilization to provide better terminal position. Fully polarized to provide proper plug-to-cap mating . Lanceless contacts

for tangle-free handling. Tool less contact removal. Mini-Universal MATE-N-LOK 2 pins and sockets can be intermixed in Mini-Universal

MATE-N-LOK 2 housings.

Features and Benefits

• One molded piece

• Secondary locking plug and cap housing assemblies

• Three-point stabilization to provide better terminal position

• Fully polarized to provide proper plug-to-cap mating

• Lanceless contacts for tangle-free handling

• Tool less contact removal

• Mates with standard Mini-Universal MATE-N-LOK headers and connectors on .163 [4.14] centerline spacing

Applications

• Appliances

• HVAC Systems

• Power Supplies

Page 1 - Retrieved on Dec 08, 2011
