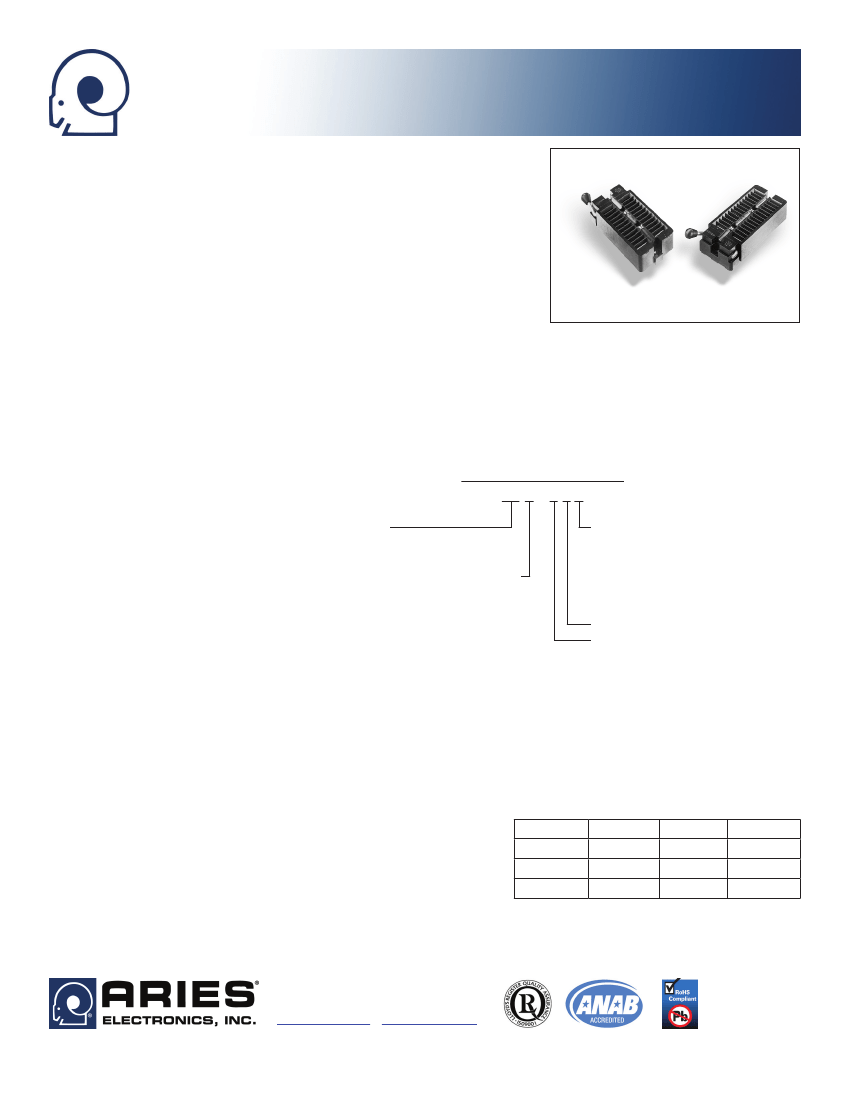

Series X57X Quick-Release Universal
Zero-Insertion-Force DIP Test Socket
FEATURES
• Universal Test Socket accepts devices on 0.300 to 0.600 [7.62 to 15.24] centers
• All pin count sockets go into PCB with either 0.300 or 0.600 [7.62 to 15.24] centers
• Swing quick-release handle down to open contacts and insert device. Release and
handle automatically returns as contacts close onto device leads
• Socket handle can be mounted on either the right or left side
• Sockets can be soldered into PCBs or plugged into any socket
GENERAL SPECIFICATIONS
• STANDARD SOCKET BODY: (for -10, -10TL, -11, -16 sockets) black UL 94V-0
glass-filled Polyphenylene Sulfide (PPS)
• HIGH-TEMPERATURE SOCKET BODY: (for -18 socket) natural color Poly-
CUSTOMIZATION:
In addition to the standard products shown
etheretherketone (PEEK)
on this page, Aries specializes in custom design and production.
• HANDLE: Stainless Steel
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
• HANDLE KNOB: Brass 360, 1/2-hard (no knob on loop handle)
right to change product general specifications without notice.
• CONTACT MATERIAL: (for -10, -10TL, -11) BeCu 172 per QQ-C-553; (for -16)
Spinodal; (for -18) BeNi 360, 1/2-hard
• ALL BECU CONTACTS: 50μ [1.27μ] min. Ni under plate per QQ-N-290, over plated with either: -10 200μ [5.08μ] min. matte
Sn per ASTM B545-97; or -10TL 200μ [5.08μ] min. 90/10 Sn/Pb per MIL-T-10727-11 10μ [0.25μ] min. Au per MIL-G-45204
• SPINODAL CONTACT PLATING: (for -16) 50μ [1.27μ] min. NiB
ORDERING INFORMATION
• HIGH-TEMPERATURE BeNi CONTACT PLATING:
(for -18) 50μ [1.27μ] NiB
XX-X57X-1 X
• CONTACT CURRENT RATING: 1 amp
• INSULATION RESISTANCE: 1000 mΩ min.
Plating
Pins
• DIELECTRIC WITHSTANDING VOLTAGE: 1000
0 = Sn over Ni
24, 28, 32, 36,
VAC
OTL = Sn/Pb over Ni
40, 42, 44, 48
• LIFE CYCLE: 25,000 to 50,000 cycles
1 = Au over Ni
Row-to-Row Spacing
(btm)
• OPERATING TEMPERATURE: min. -67°F
6 = NiB (Spinodal)
3 = 0.300 [7.62]
[-55°C]; max. 221°F [105°C] for
8 = Hi-temp Socket*
6 = 0.600 [15.24] (std)
Sn plating, 302°F [150°C] for Au plating, 392°F
Solder Pin Tail
[200°C] for NiB plating,
45° Handle Options
482°F [250°C] for high-temperature socket
0 = Long Handle, right side
• RETENTION FORCE (closed): 55 grams/pin
1 = Long Handle, left side
based on a 0.020 [0.51] dia. test lead
2 = Short Handle, right side
• ACCEPTS LEADS: 0.015-0.035 [0.38-0.89]
3 = Short Handle, left side
wide, 0.110-0.280 [2.79-7.11] long
4 = Loop Handle, right side
5 = Loop Handle, left side
MOUNTING CONSIDERATIONS
* NOTE: only Loop Handle available
• See socket footprint below
w/hi-temp. socket
Handle
Long w/Knob
Short w/ Knob
Loop (no Knob)
Dim “H1”
0.568 [14.43]
0.317 [8.05]
0.270 [6.86]
Dim. “H2”
0.300 [7.62]
0.400 [10.16]
0.193 [4.90]
Dim “H3”
0.471 [11.96]
0.252 [6.40]
0.405 [10.29]
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
10019
1 of 2
Rev. AC
Series X57X Quick-Release Universal
Zero-Insertion-Force DIP Test Socket

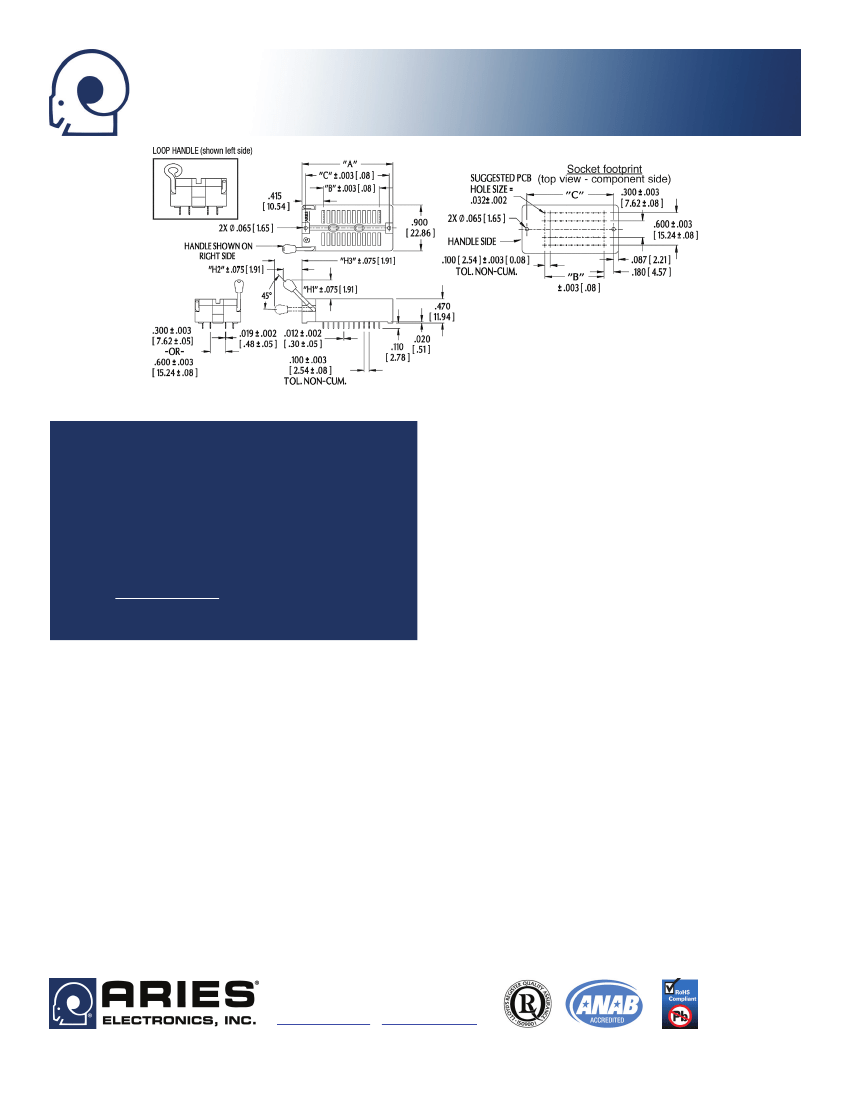

ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” = (NO. OF PINS PER ROW x 0.100 [2.54]) + 0.590 [14.99]
“B” = (NO. OF PINS PER ROW -1) x 0.100 [2.54]
“C” = (NO. OF PINS PER ROW x 0.100 [2.54] + 0.415 [10.54]
SOCKET FITS ARIES TEST SOCKET RECEPTACLE XX-6556-XX
OR SIMILAR COMPETITOR’S MODELS.
CONSULT
DATA SHEET 10003
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
10019
2 of 2
Rev. AC
