BL2-028-S340-55/11 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BL2-028-S340-55/11

BL2-028-S340-55/11: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size176KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BL2-028-S340-55/11 Overview

Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug

BL2-028-S340-55/11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304748345
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.112 inch
subject depth	0.134 inch
body length	0.713 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Manufacturer's serial number	BL2
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	28

Preview

Download Datasheet

View All

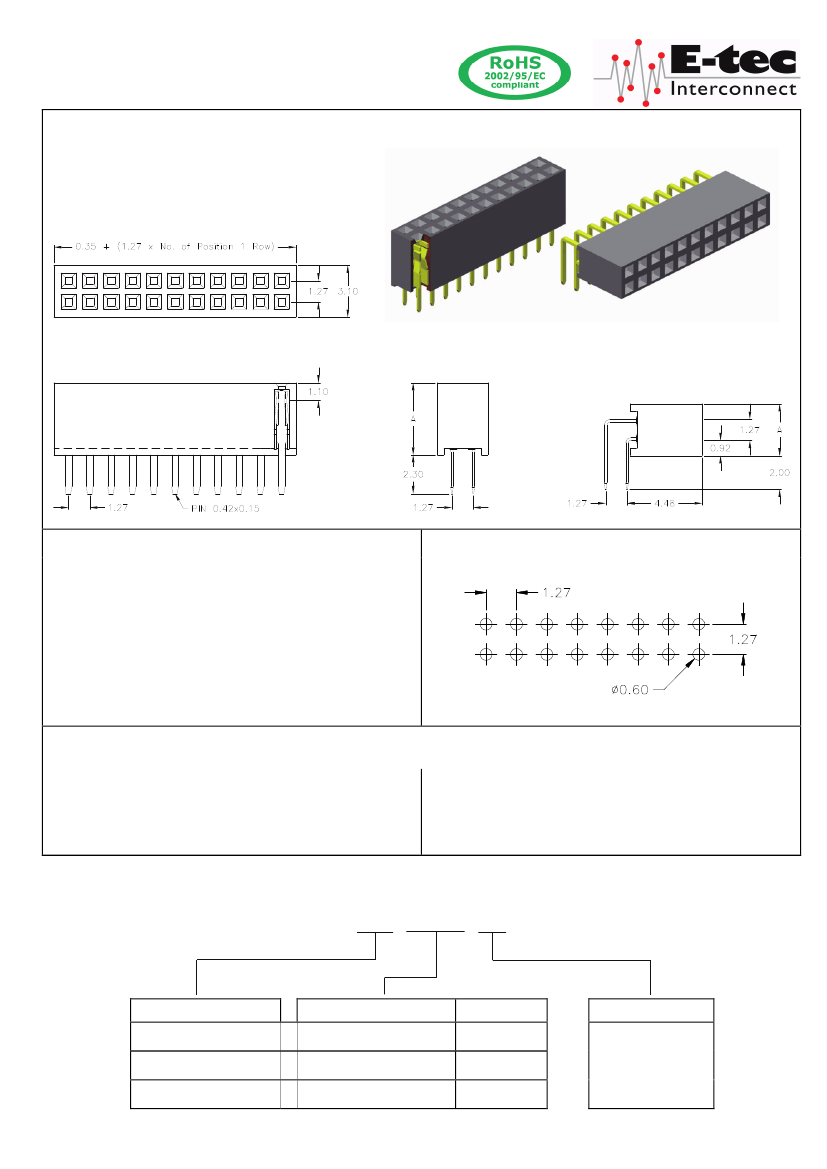

1.27mm pitch

- THT -

Female Header

dual row straight & right angle

APPLICATION

AND

FEATURES

PCB

Hole Layout

3.40 or 4.40mm height above board straight type

Hi-rel dual beam contact assures reliable

PC-Board connections

Accepts 0.40mm square pins

Stand-off’s facilitate post solder cleaning

Side stackable

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

1000 MΩ min.

20 mΩ max.

500 V AC

Operating temperature

Contact material

(RoHS compliant)

Insulator material

(RoHS compliant)

- 40°C to +105°C

Phosphor Bronze

LCP

UL 94 V-0

How to order

BL 2 - xxx - X xxx -

/ 11

Nbr of contacts

006

004

100

Connector style

S340

S430

R430

straight

right angle

DIM “A”

3.40 mm

4.40 mm

3.10 mm

Plating

gold

Other platings on

request
