2N3007LEADFREE

Description
Silicon Controlled Rectifier, 0.8A I(T)RMS, 100V V(RRM), 1 Element, TO-18
CategoryAnalog mixed-signal IC    Trigger device
File Size20KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

2N3007LEADFREE Overview

Silicon Controlled Rectifier, 0.8A I(T)RMS, 100V V(RRM), 1 Element, TO-18

2N3007LEADFREE Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionCYLINDRICAL, O-MBCY-W3
Reach Compliance Codecompli
ECCN codeEAR99
ConfigurationSINGLE
Maximum DC gate trigger current0.2 mA
JEDEC-95 codeTO-18
JESD-30 codeO-MBCY-W3
JESD-609 codee3
Number of components1
Number of terminals3
Package body materialMETAL
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum rms on-state current0.8 A
Repeated peak reverse voltage100 V
surface mountNO
Terminal surfaceMATTE TIN (315)
Terminal formWIRE
Terminal locationBOTTOM
Maximum time at peak reflow temperature10
Trigger device typeSCR
Base Number Matches1

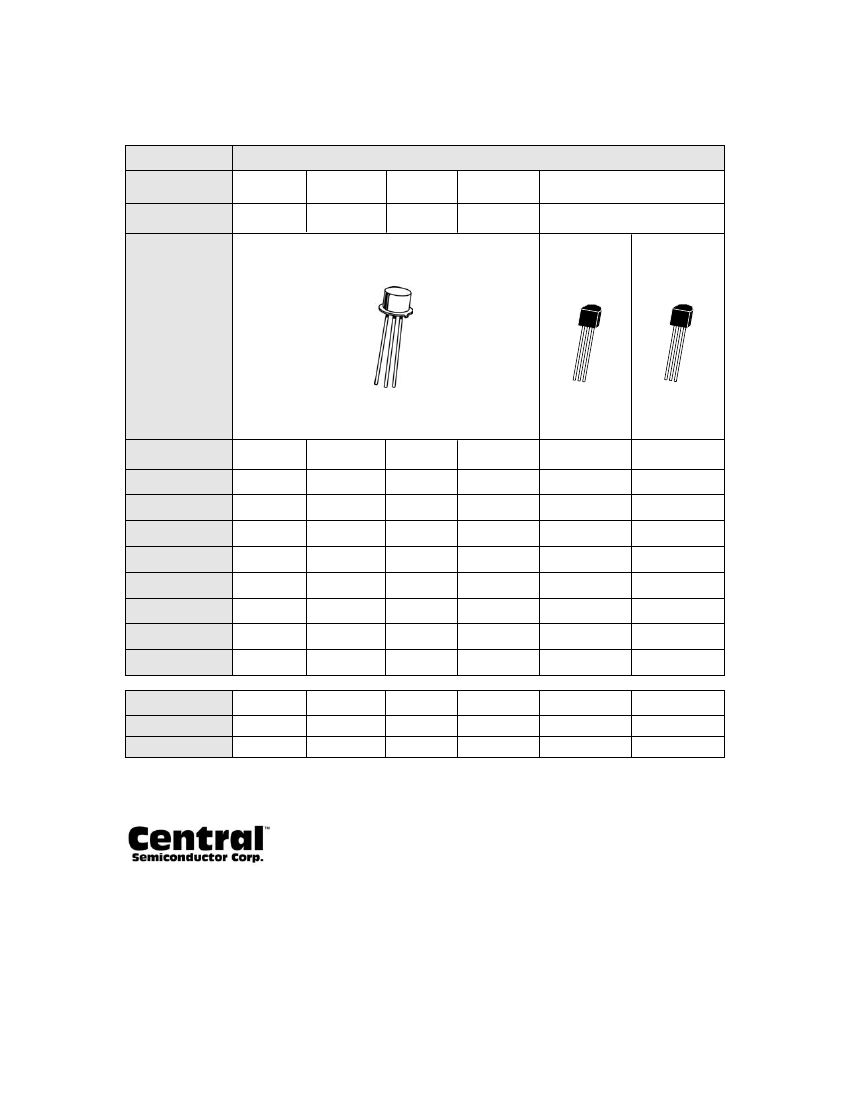

SCRs
(Silicon Controlled Rectifiers)
Metal/Plastic Packages
0.8 to 110 Amperes RMS
15 to 1200 Volts
IT (AMPS)
@ TC ( C)
ITSM (AMPS)
o
0.8
55
6.0
55
6.0
55
6.0
55
6.0
60
10
TO-92
Pinout
TO-92
Pinout
CASE
VRRM (VOLTS)
15
30
60
100
150
200
300
400
IGT
VGT
IH
2N876
2N877
2N878
2N879
2N880
2N881
2N882
2N883
200µA
0.8V
5.0mA
2N884
2N885
2N886
2N887
2N888
2N889
2N890
2N891
20µA
0.7V
5.0mA
TO-18
CGA
AGC
2N3001
2N3002
2N3003
2N3005
2N3006
2N3007
2N5060
2N5061
2N5062
2N5063
BRX44*
BRX45*
BRX46*
2N3004
2N3008
2N5064
2N6564
2N6565
BRX47*
BRX48*
BRX49*
200µA
0.8V
5.0mA
20µA
0.7V
3.0mA
200µA
0.8V
5.0mA
200µA
0.8V
5.0mA
* TO-92-18R lead forming available. Please consult factory.
