DBCIDC250AS2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBCIDC250AS2

DBCIDC250AS2: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,50 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GRAY; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric View All

DBCIDC250AS2 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,50 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GRAY

DBCIDC250AS2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304363432
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.272 inch
subject depth	0.276 inch
body length	2.68 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DBCIDC2
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	50

Preview

Download Datasheet

View All

IDC

Industry Compatible

Competitively Priced

Complete with Strain Relief and Centre Bump

Gold Plated Contacts

2.54mm Pitch

IDC CABLE SOCKET

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL-94V-0

1 A DC

30M Ω Max

Insulator Resistance:

Dielectric Withstanding

Voltage:

500V AC for One Minute

-40°C to + 105°C

3000M Ω Min

Operating Temperature:

Contact Resistance:

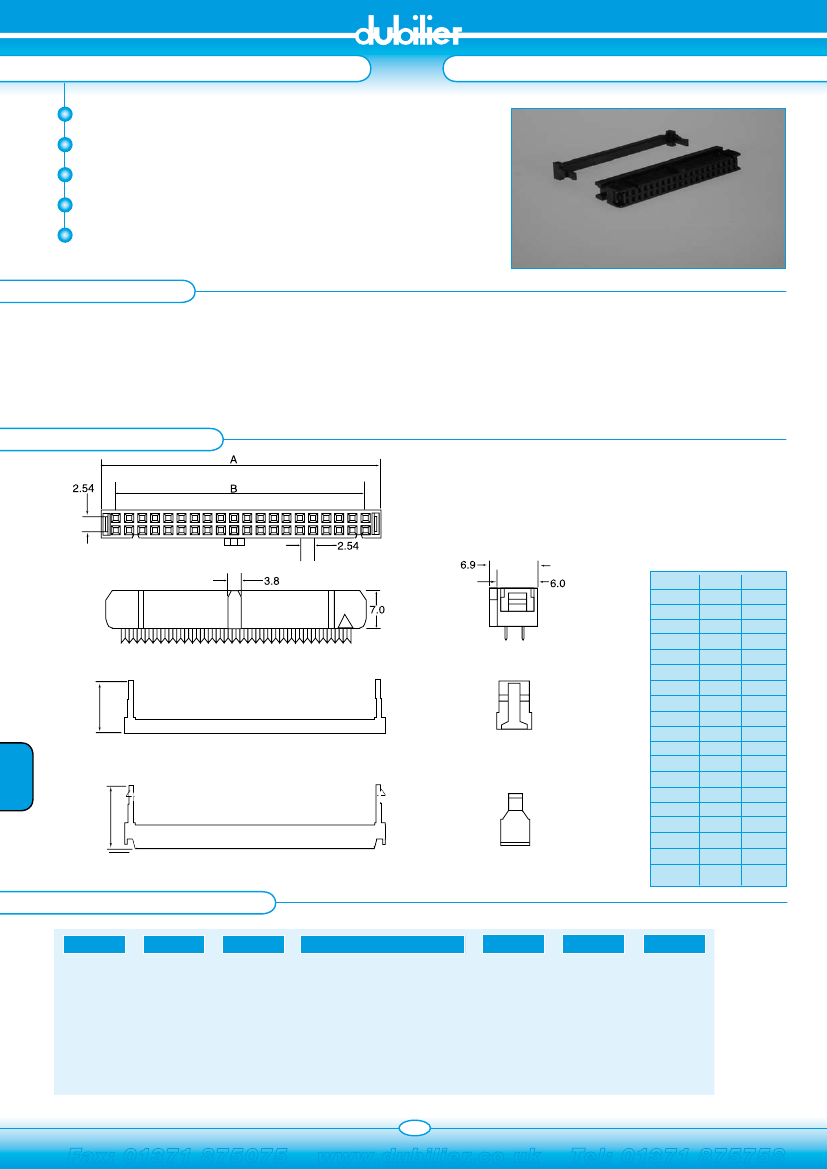

OUTLINE DRAWING

10.65

10.65 10.65

10.65

13.4

13.4 13.4

13.4

Position

12.18

14.72

17.26

19.80

22.34

24.88

29.96

35.04

37.58

42.66

47.74

50.28

55.36

60.44

68.06

75.68

80.76

83.30

85.84

5.08

7.62

10.16

12.70

15.24

17.78

22.86

27.94

30.48

35.56

40.64

43.18

48.26

53.34

60.96

68.58

73.66

76.20

78.74

SECTION 15

ORDERING INFORMATION

DBC

Dubilier

Connectors

IDC

Connector

Series

06=6way

08=8way

10=10way

12=12way

14=14way

16=16way

20=20way

24=24way

26=26way

30=30way

Nº of Ways

34=34way

36=36way

40=40way

44=44way

50=50way

56=56way

60=60way

62=62way

64=64way

Contact Material

A=Brass

Contact Plating

S= Selective Gold

Colour

1=Black

2 = Grey

318

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
