2N3106 datasheet, PDF - EEWORLD Datasheet

2N3106: DescriptionSilicon Controlled Rectifier, 70000mA I(T), 1300V V(DRM), 1300V V(RRM), 1 Element, TO-94,; CategoryAnalog mixed-signal IC Trigger device; File Size330KB，4 Pages; ManufacturerSemitronics Corp.

Download Datasheet Parametric View All

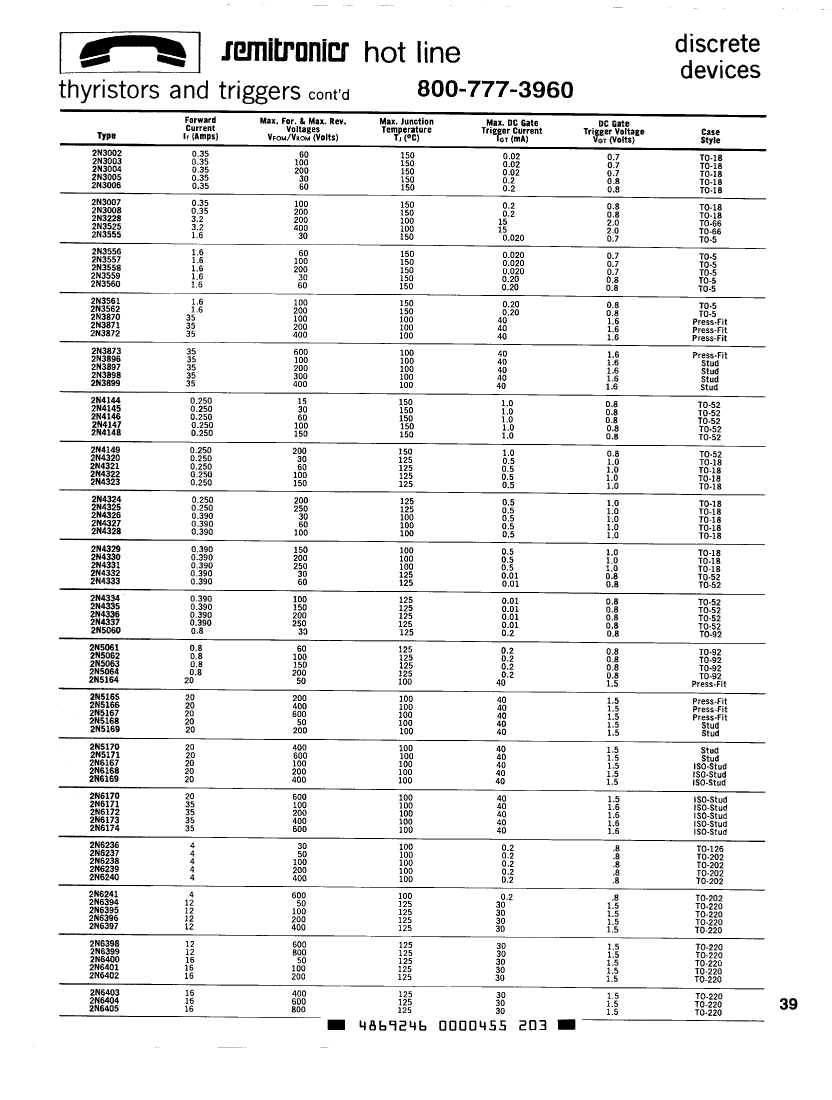

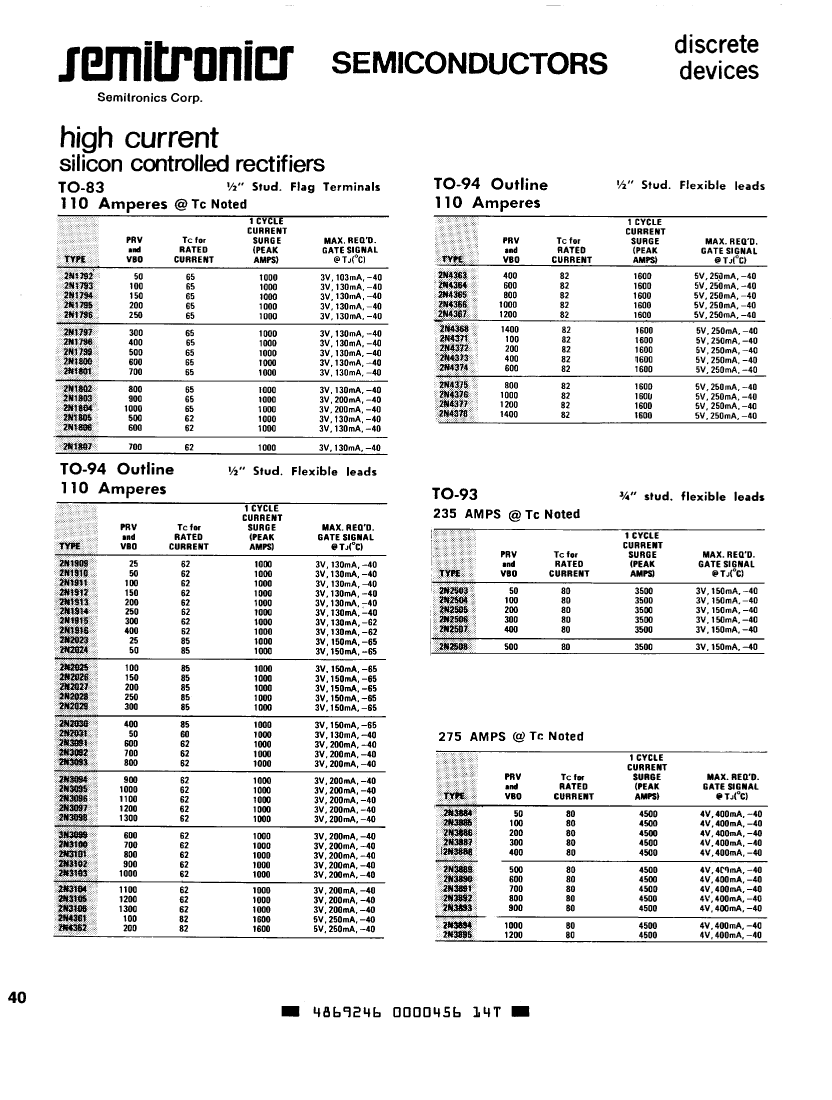

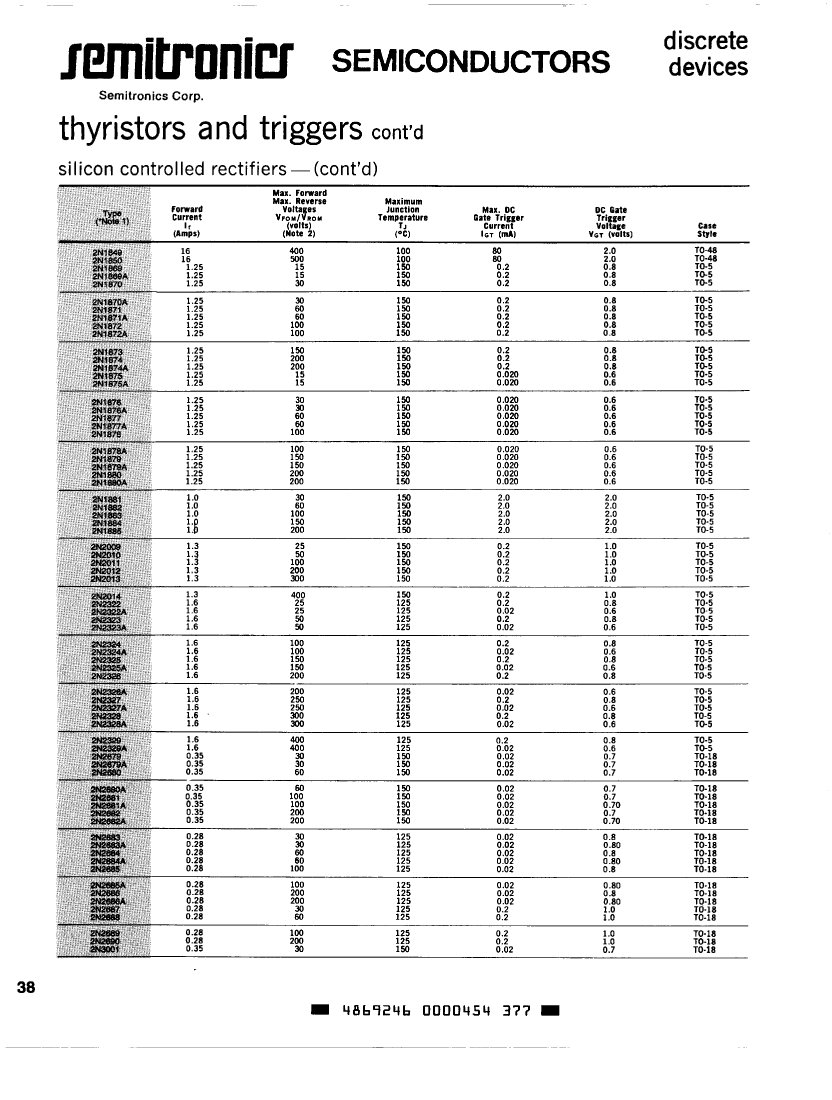

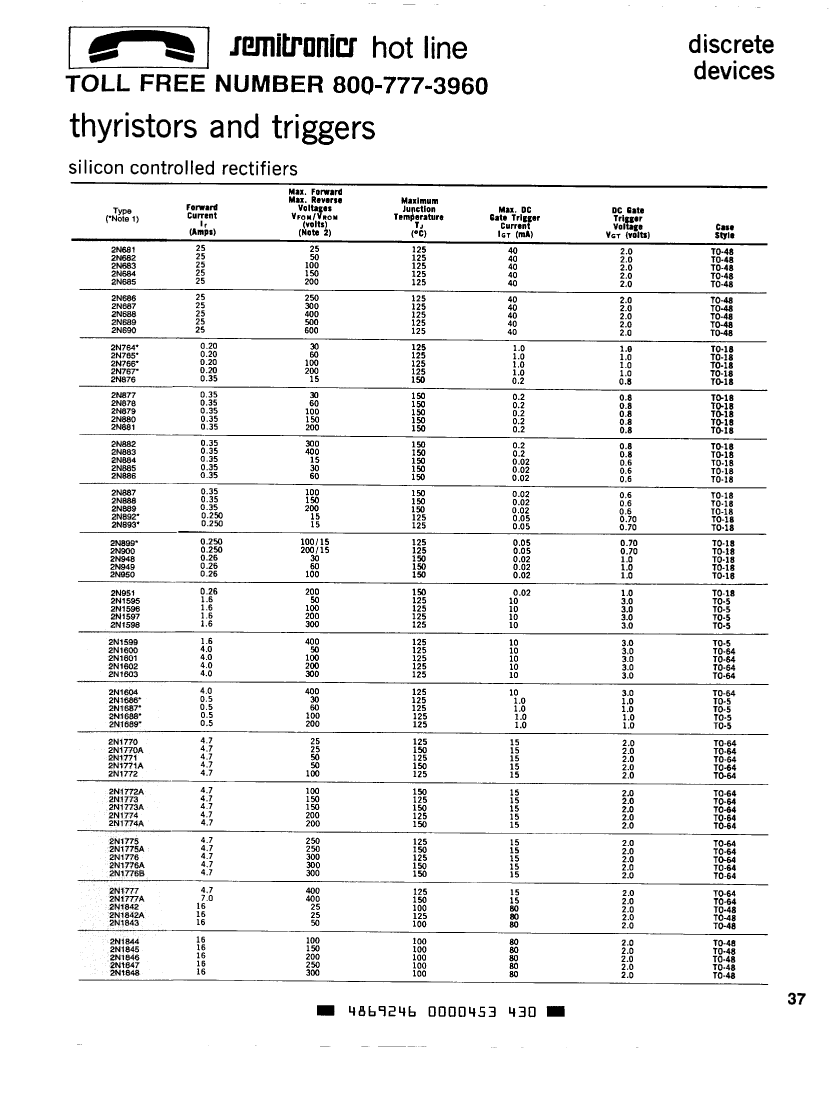

2N3106 Overview

Silicon Controlled Rectifier, 70000mA I(T), 1300V V(DRM), 1300V V(RRM), 1 Element, TO-94,

Parameter Name	Attribute value
Reach Compliance Code	unknow
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	20 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
JEDEC-95 code	TO-94
JESD-30 code	O-MUPM-H3
Maximum leakage current	2.5 mA
On-state non-repetitive peak current	1000 A
Number of components	1
Number of terminals	3
Maximum on-state current	70000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Off-state repetitive peak voltage	1300 V
Repeated peak reverse voltage	1300 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1
