THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.

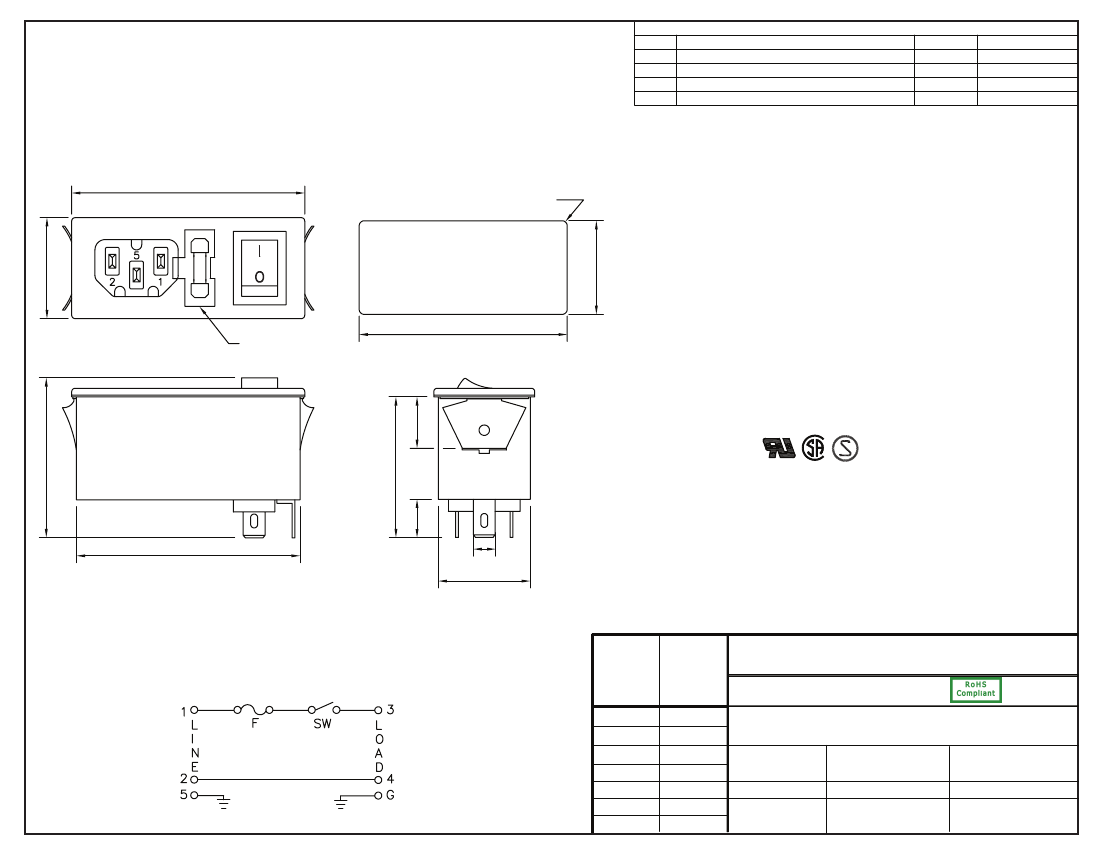

MECHANICAL DIMENSIONS:
2.65
REVISION
REV.
B
C
D
E
DESCRIPTION
RoHS Compliancy
Updated Specifications
Updated Graphics and Specifications
Updated Switch Orientation
DATE
06-01-06
01-24-08
10-26-09
01-27-10
APPROVED
DP
DP
LY
LY
ELECTRICAL CHARACTERISTICS:
R0.04MAX
1.063 ± 0.003
1-1.
1-2.
VOLTAGE RATING.....................................................115/250VAC
CURRENT RATING
A. @ 115/250VAC (UL, CSA) ...............6 A RMS MAX
B. @ 250VAC (SEMKO) .........................6 A RMS MAX
OPERATING FREQUENCY .........................................48-440Hz
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND ............................2000 VDC
B. LINE TO LINE ......................................2000 VDC
MINIMUM INSULATION RESISTANCE: @ 500VDC ONE MINUTE
A. LINE & NEUTRAL TO GROUND .....10M OHM
B. LINE & NEUTRAL ................................10M OHM
SAFETY:
SINGLE 5x20mm FUSEHOLDER
SNAP-IN PANEL THICKNESS: .04IN~.07IN (1.0mm~1.8mm)
RoHS COMPLIANT
1.15
1-3.
1-4.
FUSE HOLDER
2.6 ± 0.003
PANEL CUTOUT
1-5.
0.57
1.81
1-6.
1.61
1-7.
0.43
1-8.
1-9.
2.57
.250
1.06
ELECTRICAL SCHEMATIC:
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
762-18/002
MULTI-FUNCTION MODULE
UNIT: in
REV. E
Approved / Date
JJH / 03-19-04
Drawn / Date
B.ZHANG
03-19-04
Checked / Date
03-19-04
