1.5KE30AB0G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1.5KE30AB0G

1.5KE30AB0G: DescriptionTrans Voltage Suppressor Diode, 1500W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-201,; CategoryDiscrete semiconductor diode; File Size206KB，5 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

1.5KE30AB0G Overview

Trans Voltage Suppressor Diode, 1500W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-201,

1.5KE30AB0G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Maximum breakdown voltage	31.5 V
Minimum breakdown voltage	28.5 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-201
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Maximum repetitive peak reverse voltage	25.6 V
surface mount	NO
technology	AVALANCHE
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

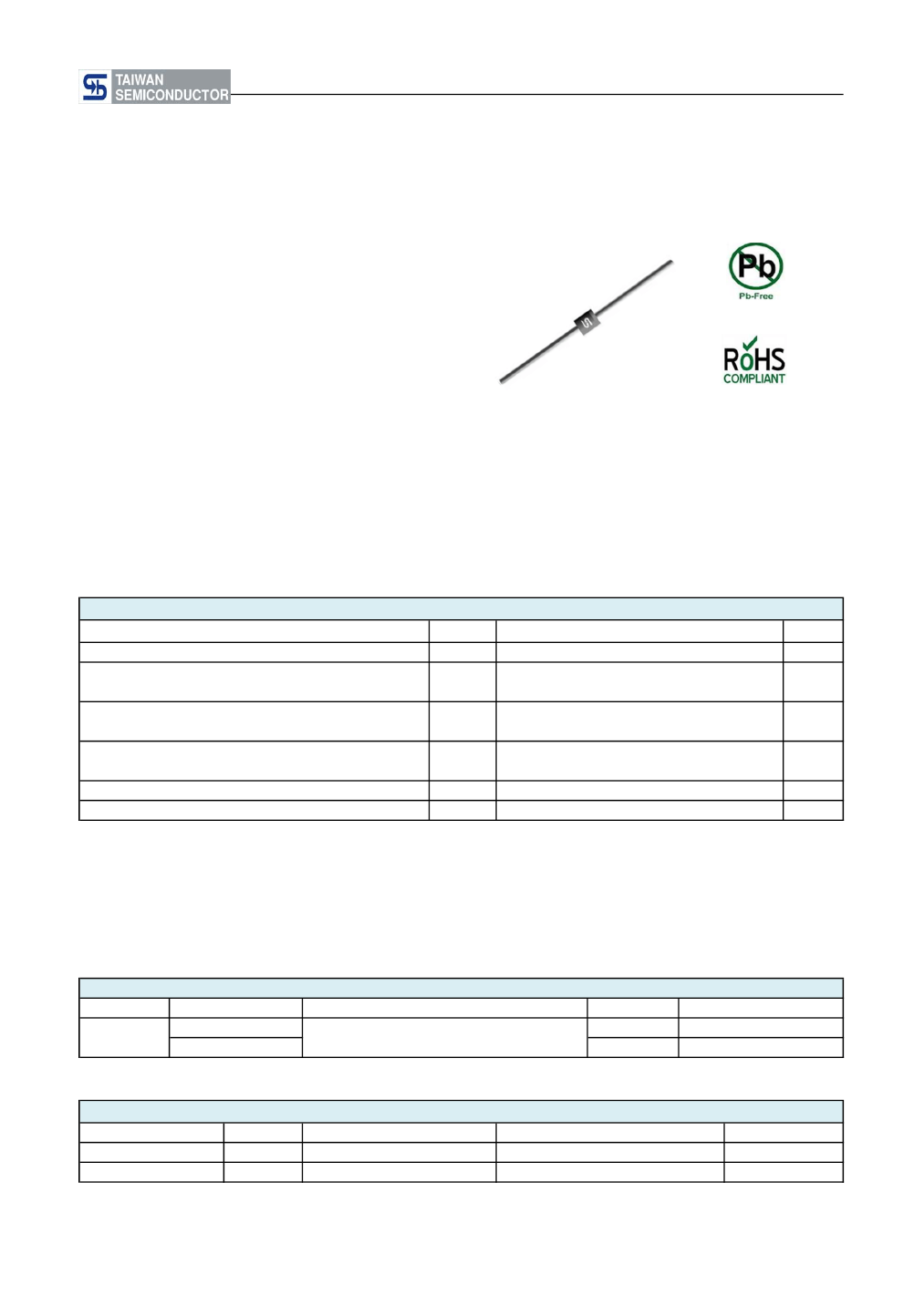

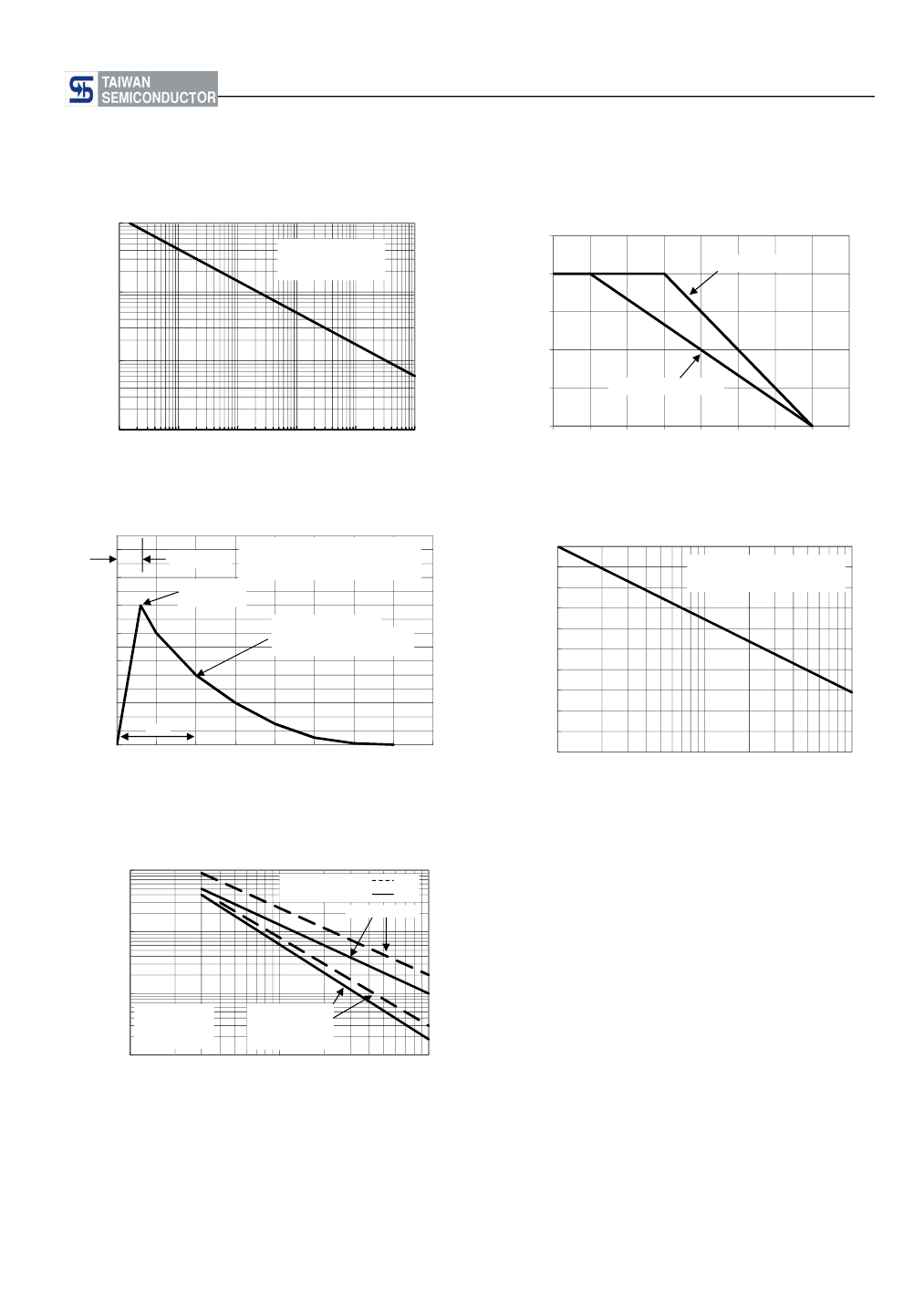

1.5KE SERIES

Taiwan Semiconductor

CREAT BY ART

FEATURES

- Excellent clamping capability

- Low dynamic impedance

- 1500W surge capability at 10 / 1000

μs

waveform

- Fast response time: Typically less than

1.0ps from 0 volt to VBR for unidirectional

and 5.0ns for bidirectional

- Typical IR less than 1uA above 10V

- UL recognized file # E-326243

- AEC-Q101 qualified (Green compound not involved)

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

Transient Voltage Suppressor

DO-201

MECHANICAL DATA

Case:

DO-201

Molding compound, UL flammability classification rating 94V-0

Base P/N with suffix "G" on packing code - halogen-free, RoHS compliant

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 1A whisker test

Weight:

0.94g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25℃ unless otherwise noted)

PARAMETER

Peak power dissipation at T

=25℃, Tp=1ms (Note 1)

Steady state power dissipation at T

=75℃

lead lengths .375", 9.5mm (Note 2)

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Maximum Instantaneous Forward Voltage at 50 A for

Unidirectional Only (Note 3)

Operating junction temperature range

Storage temperature range

SYMBOL

FSM

STG

VALUE

1500

200

3.5 / 5.0

- 55 to +175

UNIT

Watts

Volts

Note 1: Non-repetitive Current Pulse Per Fig. 3 and Derated above T

=25℃ Per Fig. 2

Note 2: Mounted on Copper Pad Area of 0.6" x 0.6" (16mm x 16mm)

Note 3: V

=3.5V for Devices of V

≦200V

and V

=5.0V Max. for Devices V

>200V

Devices for Bipolar Applications

1. For Bidrectional Use C or CA Suffix for Types 1.5KE6.8 through Types 1.5KE440

2. Electrical Characterstics Apply in Both Directions

ORDERING INFORMATION

PART NO.

1.5KExxxx

(Note 1)

PACKING CODE

GREEN COMPOUND CODE

Suffix "G"

PACKAGE

DO-201

PACKING

1250 / 13" Plastic reel

500 / Bulk packing

Note 1: "xxxx" defines voltage from 6.8V (1.5KE6.8) to 440V (1.5KE440)

EXAMPLE

PREFERRED P/N

1.5KE100A R0

1.5KE100A R0G

PART NO.

1.5KE100A

PACKING CODE

Green compound

Version: J14

GREEN COMPOUND CODE

DESCRIPTION

Document Number: DS_D1401015
