10-10-1171

Description
Board Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.2 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size42KB，1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

10-10-1171 Overview

Board Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.2 inch Pitch, Solder Terminal, Plug

10-10-1171 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresKK
Board mount optionsEDGE MOUNT
body width0.394 inch
subject depth0.453 inch
body length3.4 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN (40) OVER COPPER
Contact completed and terminatedTIN (40) OVER COPPER
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage1500VDC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force6.672 N
Insulation resistance500000000000 Ω
insulator materialNYLON
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number3002
Plug contact pitch0.2 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature75 °C
Minimum operating temperature
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness40u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)7 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.17 inch
Terminal pitch5.08 mm
Termination typeSOLDER
Total number of contacts17
UL Flammability Code94V-2
Evacuation force-minimum value1.112 N
Base Number Matches1

Preview

Download Datasheet
FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 2 to 20 circuits
Reference Information
Product Specification: PSX10-39
Packaging: Tray
UL File No.: E29179
CSA File No.: LR19980
Mates With: 2599, 3003 and 3008 headers
Designed In: Inches
Electrical
Voltage: 250V
Current: 7.0A
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 1500V
Insulation Resistance: 500K M
Ω
min.
Mechanical
Mating Force: 24 oz max.
Unmating Force: 4 oz min.
Normal Force: 350g
Durability: 25 cycles Tin
Physical
Housing: Nylon, UL 94V-2
Contact: Phosphor Bronze
Plating: 1
µ
m Tin/Lead and 0.5
µ
m Gold
Operating Temperature: 0 to +75˚C
5.08mm (.200") Pitch
KK
®
PC Board Connector
3002
Right Angle
Mount Style A
D
3.00 to 7.92mm (.118 to .312") Pitch
Order No.
Tin
10-10-1121
10-10-1131
10-10-1141
10-10-1151
10-10-1161
10-10-1171
10-10-1181
10-10-1191
10-10-1201
Gold
10-10-1124
10-10-1134
10-10-1144
10-10-1154
10-10-1164
10-10-1174
10-10-1184
10-10-1194
10-10-1204
60.96
66.04
71.12
76.20
81.28
86.36
91.44
96.52
101.60
Dimension
A
(2.400)
(2.600)
(2.800)
(3.000)
(3.200)
(3.400)
(3.600)
(3.800)
(4.000)
55.88
60.96
66.04
71.12
76.20
81.28
86.36
91.44
96.52
B
(2.200)
(2.400)
(2.600)
(2.800)
(3.000)
(3.200)
(3.400)
(3.600)
(3.800)
12
13
14
15
16
17
18
19
20

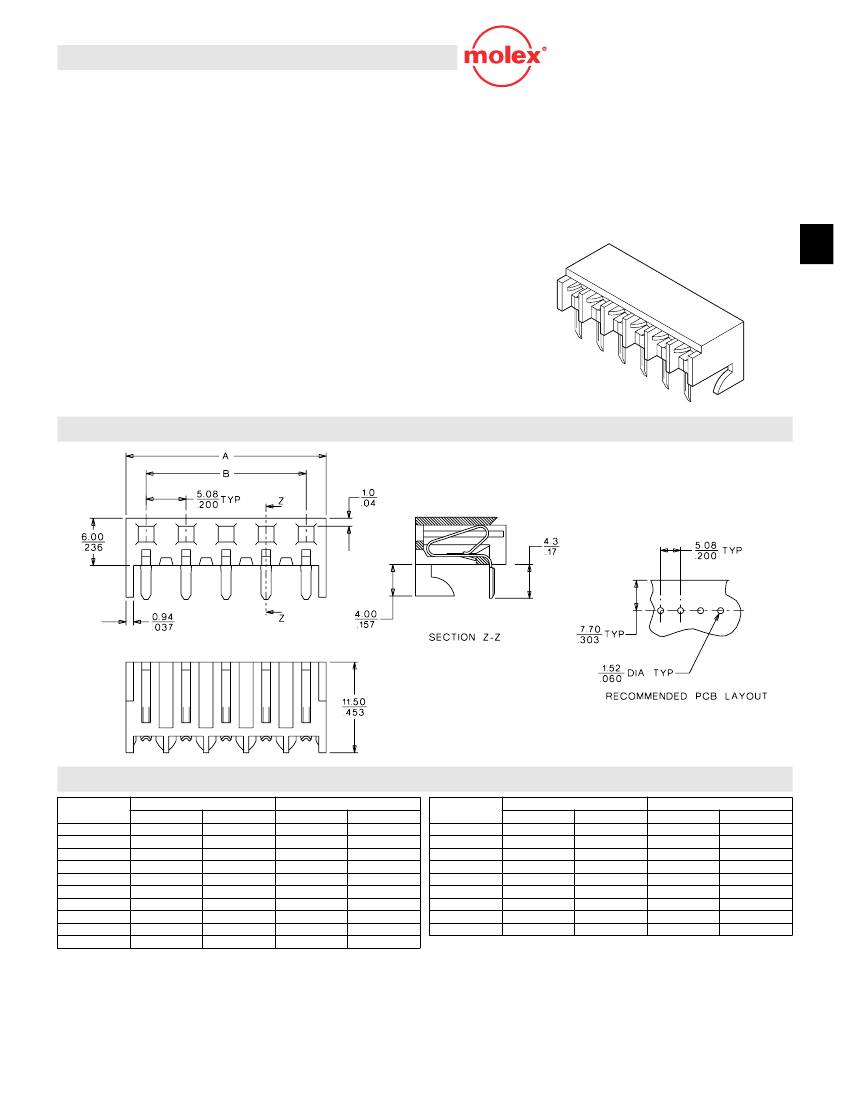

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
2
3
4
5
6
7
8
9
10
11
Order No.
Tin
10-10-1021
10-10-1031
10-10-1041
10-10-1051
10-10-1061
10-10-1071
10-10-1081
10-10-1091
10-10-1101
10-10-1111
Gold
10-10-1024
10-10-1034
10-10-1044
10-10-1054
10-10-1064
10-10-1074
10-10-1084
10-10-1094
10-10-1104
10-10-1114
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
Dimension
A
(.400)
(.600)
(.800)
(1.000)
(1.200)
(1.400)
(1.600)
(1.800)
(2.000)
(2.200)
5.08
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
B
(.200)
(.400)
(.600)
(.800)
(1.000)
(1.200)
(1.400)
(1.600)
(1.800)
(2.000)
Circuits
Plating: 1.00 microns Tin/Lead /2.00 microns Copper min. (.000040" Tin/Lead /.000080" Copper min.) or
0.50 microns Gold/0.75 microns Nickel min. (.000020" Gold/.000030" Nickel min.)
MX01
D-75
