10081531-11238LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 10081531-11238LF

10081531-11238LF: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket, LEAD FREE; CategoryThe connector The connector; File Size682KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10081531-11238LF Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket, LEAD FREE

10081531-11238LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1591034211
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.8
Other features	STAGGERED CONFIGURATION
Board mount options	PEG
body width	0.299 inch
body length	5.551 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	5000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL
Terminal length	0.125 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	240
UL Flammability Code	94V-0

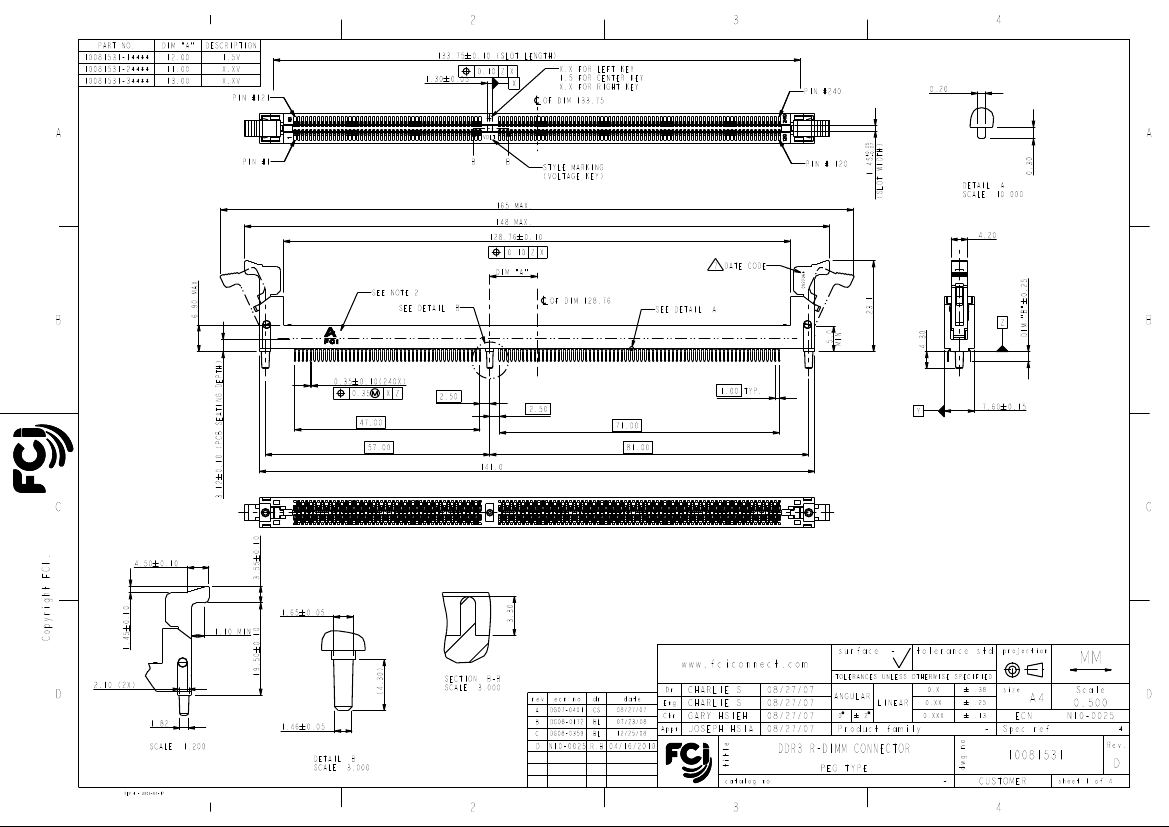

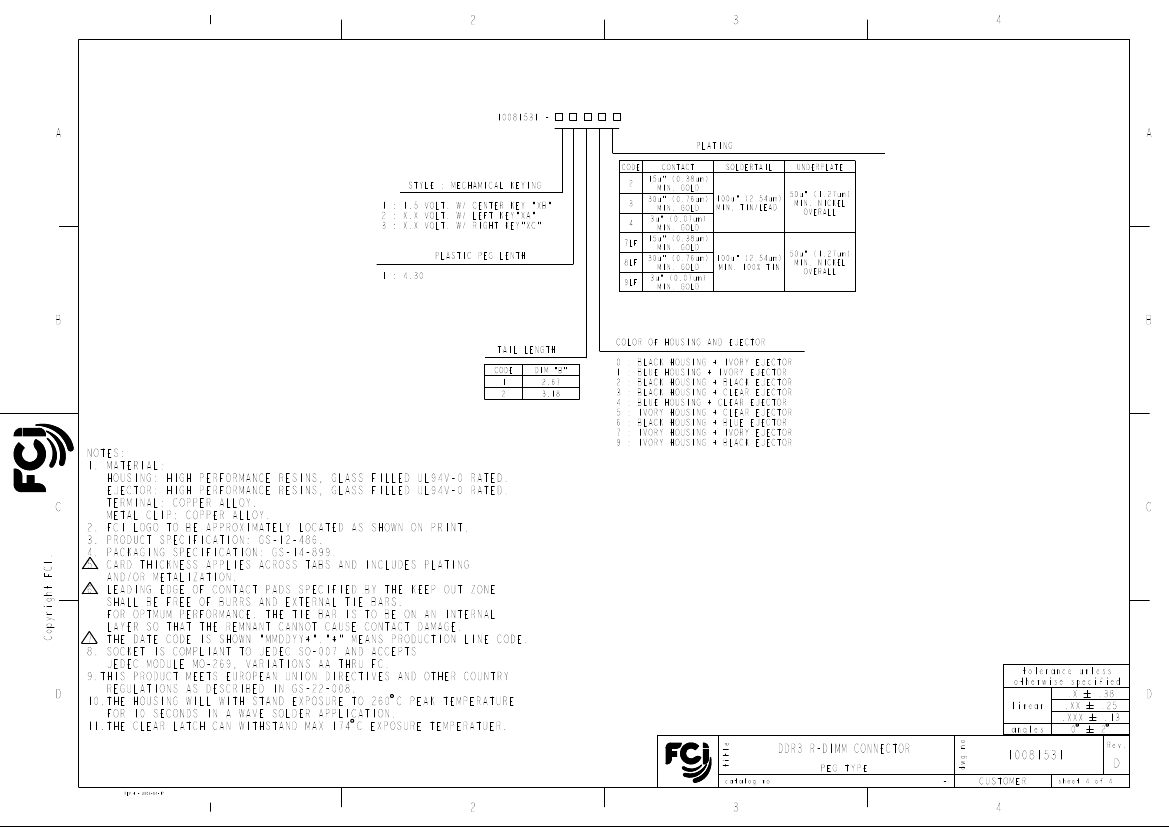

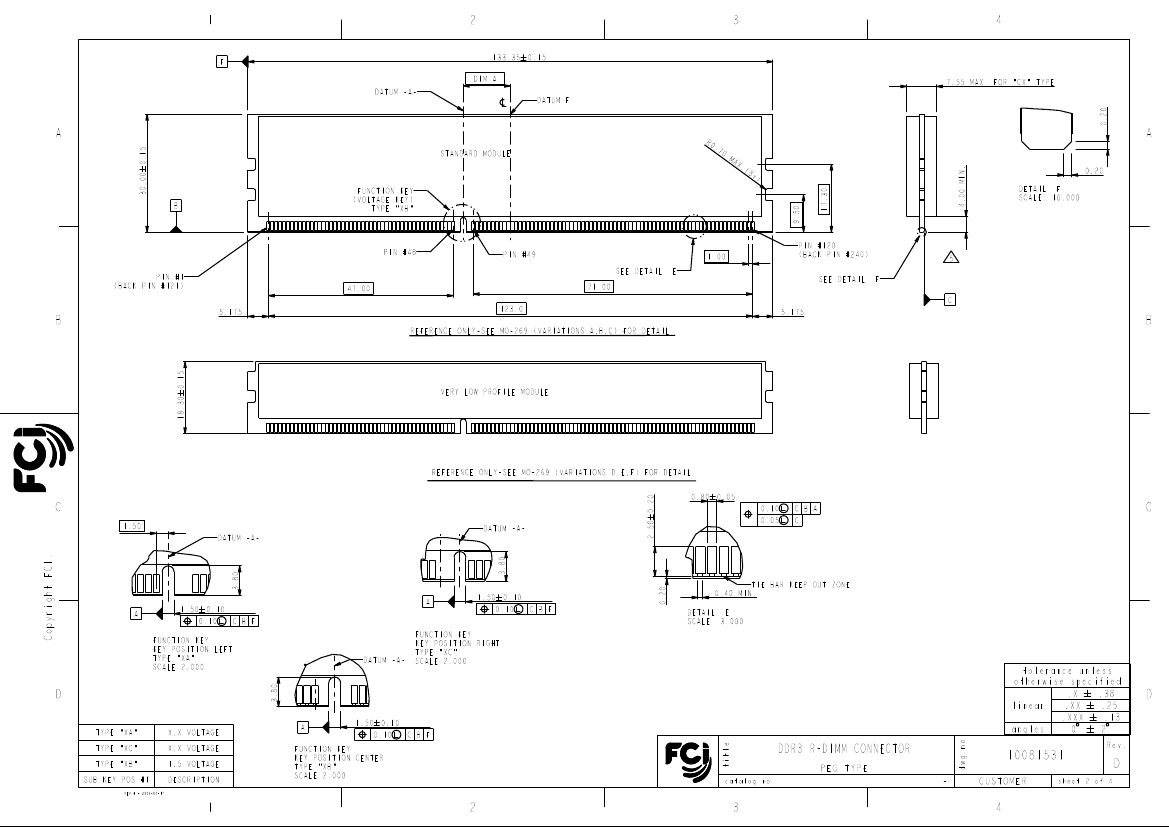

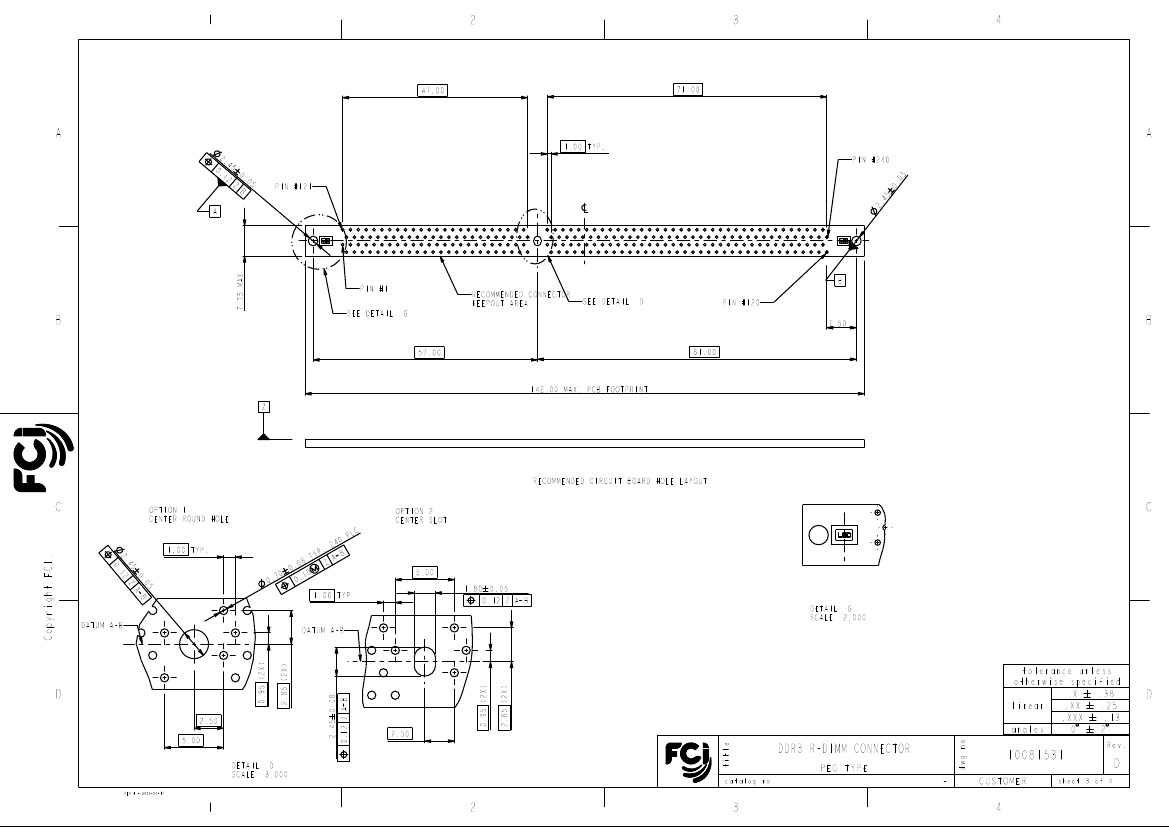

Preview

Download Datasheet

View All

PART NO.

10081531-1****

10081531-2****

10081531-3****

DIM "A"

12.00

11.00

13.00

DESCRIPTION

1.5V

X.XV

PIN #121

1.30 0.05

133.75 0.10 (SLOT LENGTH)

0.10 Z X

X.X FOR LEFT KEY

1.5 FOR CENTER KEY

X.X FOR RIGHT KEY

OF DIM 133.75

PIN #240

0.20

PIN #1

VOLT

1.45

+0.05

-0.07

(SLOT WIDTH)

STYLE MARKING

(VOLTAGE KEY)

PIN # 120

0.30

DETAIL A

SCALE 10.000

4.20

DIM "B"

0.25

165 MAX.

148 MAX.

128.76 0.10

0.10 Z X

092206*

DIM "A"

6.90 MAX

SEE NOTE 2

SEE DETAIL

DATE CODE

OF DIM 128.76

SEE DETAIL

5.0

MIN.

23.1

4.30

3.12 0.10 (PCB SEATING DEPTH)

0.35 0.10 (240X)

0.35

X Z

2.50

47.00

57.00

141.0

71.00

81.00

1.00 TYP.

7.60 0.15

3.55 0.10

4.50 0.10

1.45 0.10

1.65 0.05

1.10 MIN

19.50 0.10

3.30

surface

(4.30 )

tolerance std

projection

www.fciconnect.com

SECTION B-B

SCALE 3.000

rev

TOLERANCES UNLESS OTHERWISE SPECIFIED

Scale

2.10 (2X)

ecn no

DG07-0401

DG08-0172

DG08-0359

date

08/27/07

07/23/08

12/25/08

Eng

Chr

Appr

1.82

SCALE

1.200

1.46 0.05

CHARLIE S

GARY HSIEH

JOSEPH HSIA

title

08/27/07

ANGULAR

0.X

.38

.25

.13

size

LINEAR

0.XX

0.XXX

0.500

N10-0025

Rev.

Product family

dwg no

ECN

Spec ref

DETAIL B

SCALE 3.000

N10-0025 R.B 04/16/2010

DDR3 R-DIMM CONNECTOR

PEG TYPE

10081531

CUSTOMER

sheet

1 of 4

catalog no

REV F - 2006-04-17

PDM:

Rev:D

STATUS:

Released

Printed: Sep 14, 2010
