Cord Connectors (rewireable)
www.schurter.com /PG07
4021

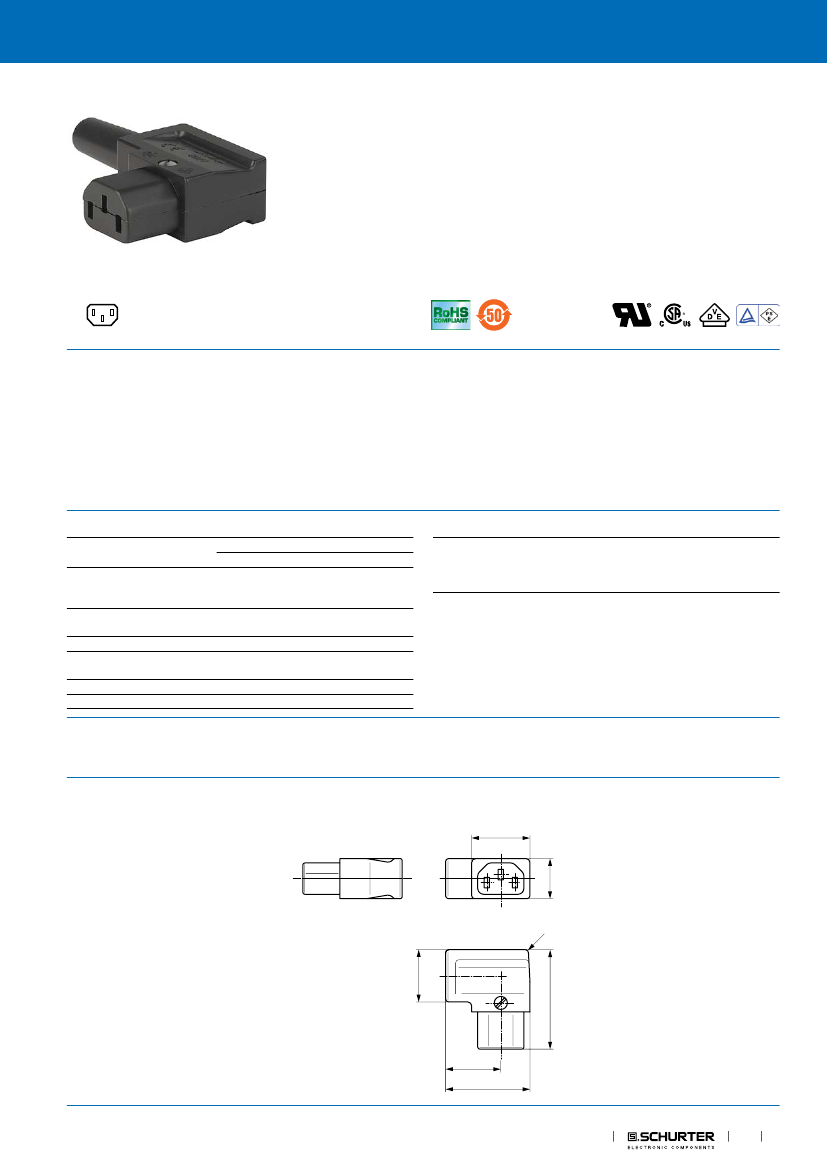

IEC Connector C13, Rewireable, Angled
C13
70° C
Description
- cable :
rewirable ,
- 1 Function :
Connector , Pin temperature 70 °C Protection class I Cable
- Note: cable guard has to be ordered separately, mating cable guards
please find under accessories
Approvals
- VDE Certificate Number: 40008187
- UL File Number: E96454
- CSA File Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Material: Housing
PH
A
Dimensions
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
General Product Information
SE
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Cable
PA6, black or grey, UL 94V-0
26
27.5
42
Connectors
49.5
R1
.5
20
-O
UT
References
Weblinks
This type is Phase-out. Alternate type:
4785
Last order date: 30.09.2014
pdf datasheet, html-datasheet, General Product Information, RoHS,
CHINA-RoHS, REACH, Distributor-Stock-Check, Accessories, Detailed
request for product
appliance inlet/-outlet
C13 acc. to IEC 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
29
1
4021
Config. Code
4021
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
Cord Connectors (rewireable)
www.schurter.com /PG07
Type
protection class I
Configuration
key
4021
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Terminals
Terminal L
screw terminal
Configuration
key
4021
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Terminals
Terminal N
screw terminal
Symbols similar as in table A
Configuration
key
4021
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Terminals
SE
assembled
disassembled
All Variants
Config. Code
4021-X-AAA0-A-81
4021-X-AAA0-B-81
Description
4021, IEC Connector, C13, 70°C, version: I, L: screw terminal, N: screw terminal, ground: screw terminal, color: Black, design: for
cord assembly, condition:assembled
4021, IEC Connector, C13, 70°C, version: I, L: screw terminal, N: screw terminal, ground: screw terminal, color: Grey, design: for
cord assembly, condition:assembled
PH
A
Accessories
Description
Cable Guard KT14
PVC Cable Guard for rewireable connectors
The listet variants should be available from stock Other versions on request
www.schurter.com/contact
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Max. torque for screws: Terminals: 0.5 Nm, Cable clamps: 0.8 Nm, Cover: 0.8 Nm
2
Connectors
-O
UT
Terminal Ground
screw terminal
Configuration
key
A
Symbols similar as in table A
X
4021
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Type
4021
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Color
Color
Black
Grey
Configuration
key
A
B
A
4021
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Style
Style
Configuration
key
A
for cord assembly
8
4021
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Condition
Condition
Configuration
key
1
2
Order Number
4310.0025
4310.0026
Cord Connectors (rewireable)
www.schurter.com /PG07
4021

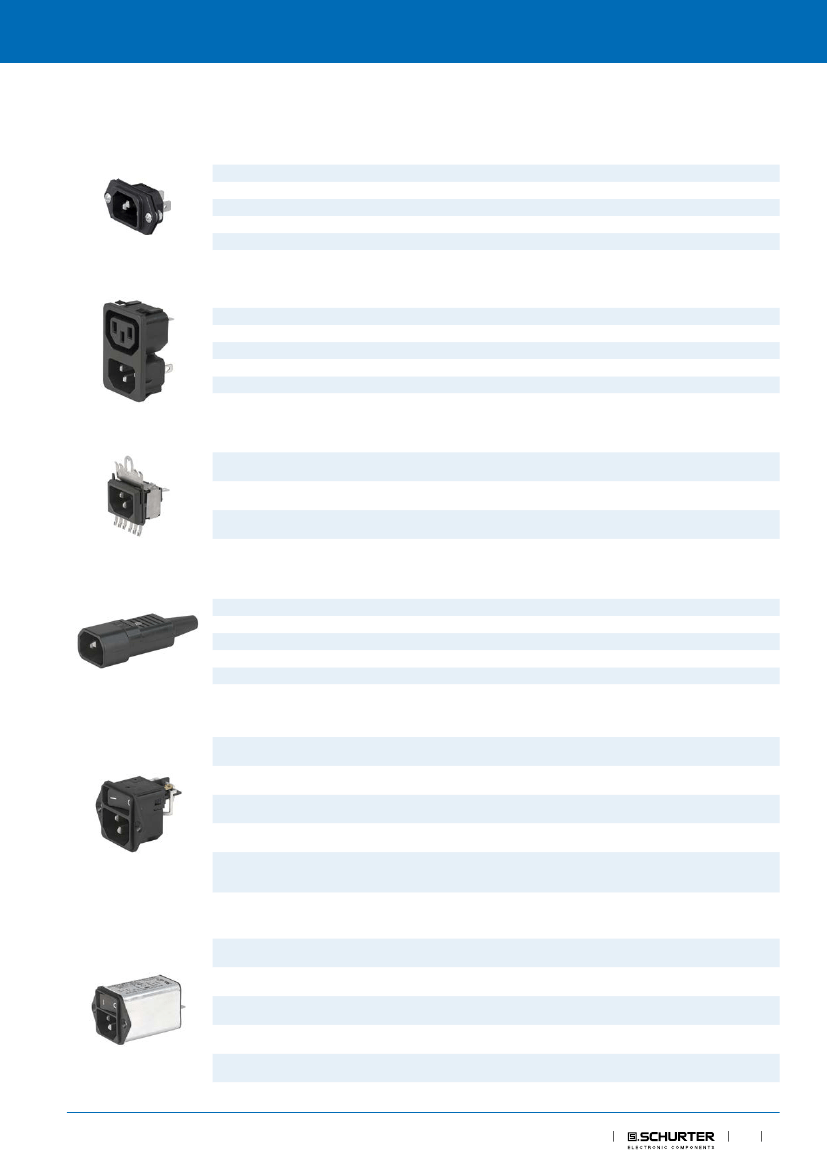

Mating Inlets/Plugs
Category / Description
Appliance Inlet Overview complete
6100-4, Mounting: Snap-in, Solder terminals or quick connect terminals, Appliance Inlet: IEC C14
6102-3, Mounting: Screw, Solder terminals or quick connect terminals, Appliance Inlet: IEC C18
G-Stecker, Mounting: Appliance Inlet : IEC C14 Without fuse holder
Appliance Inlet further types to 4021
Distribution Unit Overview complete
6102-5, Mounting: Snap-in, Solder terminals or quick connect terminals, Appliance Inlet: IEC C18
Distribution Unit for Snap-in Mounting with 1 IEC Appliance Inlet C14 and 1 Appliance Outlet F
Distribution Unit with 1 IEC Appliance Inlet C14 and 2 Appliance Outlets F, Shuttered
Distribution Unit with 1 IEC Appliance Inlet C14 and 4 Appliance Outlets F
EMC Power Strip with Line Filter
Distribution Unit with 1 IEC Appliance Inlet C14 or Power Cord, 4, 5 or 6 IEC Appliance Outlets F and Extra Components
4740
Distribution Unit further types to 4021
IEC Inlet Filter Overview complete
GRF2, Mounting: Rear Side, With EMC-shield and without line filter, 10 A, Plug Connector, Appliance Inlet: IEC C14,
Suitable for appliances with protection class I
5110, Mounting: Screw, Front Side, Filter: Standard and Medical Version, Without fuse holder: 10 A, Thermoplastic
Appliance Inlet: IEC C14, prewired, Suitable for appliances with protection class I
KFS, Mounting: Screw, Front Side, Filter: Standard Version, Without fuse holder: 10 A, Appliance Inlet: IEC C14, pre-
wired
IEC Inlet Filter further types to 4021
Plug Overview complete
SE
IEC Plug E, Cord Connector (Rewireable), Straight, max. cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Straight, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
Plug further types to 4021
Power Entry Module Overview complete
Power Entry Module further types to 4021
Power Entry Module with line filter Overview complete
Power Entry Module with line filter further types to 4021
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
DC11, Mounting: Screw, Rocker switch: non-illuminated or illuminated 1 or 2 pole, Quick connect terminals 4.8 x 0.8
mm, Appliance Inlet: IEC C14, Without fuse holder: Suitable for appliances with protection class I or II
KEB1, Mounting:Screw, Quick connect terminals 4.8 x 0.8 mm, Without fuse holder: Rocker switch, non-illuminated or
illuminated, red, 1-pole, Appliance Inlet: IEC C14, 250 VAC, prewired, Suitable for appliances with protection class I
KEB2, Mounting:Screw, Quick connect terminals 4.8 x 0.8 mm, Without fuse holder: Rocker switch, non-illuminated or
illuminated, 2-pole, Appliance Inlet: IEC C14, 250 VAC, prewired, Suitable for appliances with protection class I
DC21, Mounting: Screw Rear Side, Rocker switch: non-illuminated or illuminated 2-pole, Quick connect terminals 4.8
x 0.8 mm Appliance Inlet: IEC C14, Without fuse holder:
DD11, Mounting: Screw-on mounting, Rocker switch: non-illuminated or illuminated 2-pole, Quick connect terminals
4.8 x 0.8 mm, Appliance Inlet: IEC C14, With or without protection cover, Fuse holder: 1 or 2 pole, Suitable for appli-
ances with protection class I
PH
A
KFB1, Mounting: Screw, Front Side, Filter: Standard Version, Without fuse holder: 10 A, Rocker switch: 1-pole, Appli-
ance Inlet: IEC C14, prewired
KFB2, Mounting: Screw, Front Side, Filter: Standard and Medical Version, Without fuse holder: 10 A, Rocker switch:
2-pole, Appliance Inlet: IEC C14, prewired
DC12, Mounting: Screw, Front-/Rear-Side, Filter, Standard and Medical Version, Without fuse holder:10 A, Rocker
switch: 1 or 2 pole, non-illuminated or illuminated Appliance Inlet: IEC C14, prewired
DC22 Mounting: Screw, Rear Side, PCB, 10 A, Filter: Standard and Medical Version, Without fuse holder: Rocker switch:
DC22
1 or 2 pole, non-illuminated or illuminated, Appliance Inlet: IEC C14, Suitable for appliances with protection class I
DD12
...
07.03.2017
DD12, Mounting: Screw-on mounting, Front Side, Filter, Standard and Medical Version, Fuse holder:1 or 2 pole, 10 A,
Rocker switch: 2-pole, non-illuminated Appliance Inlet: IEC C14, prewired
-O
UT
6100-4
6102-3
6102-5
6150
...
0712
4741
4747
FLBB
GRF2
5110
KFS
4732
4735
9009
4733
4736
...
DC11
KEB1
KEB2
DC21
DD11
...
KFB1
KFB2
DC12
6100-3, Mounting: Screw, Solder terminals or quick connect terminals, Appliance Inlet: IEC C14
6100-3
Connectors
3
