142-0408-011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 142-0408-011

142-0408-011: DescriptionCONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, CRIMP/SOLDER, PLUG; CategoryThe connector The connector; File Size792KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

142-0408-011 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	142-0408-011	-	-	View	Buy Now

142-0408-011 Overview

CONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, CRIMP/SOLDER, PLUG

142-0408-011 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Is Samacsys	N
Other features	APPLICABLE CABLES: RG 55/U; RG 142; RG 223; RG 400, INSERTION LOSS MAX AT 6GHZ, CAPTIVE CONTACT
subject depth	0.706 inch
Body/casing type	PLUG
Cable type	RG-142
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Contact resistance	4 mΩ
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
Insulation resistance	5000000000 Ω
insulator material	PTFE FLUOROCARBON/PFA
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	12.4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	BRASS
Termination type	CRIMP/SOLDER
Total number of contacts	1
voltage standing wave ratio	1.27
Base Number Matches	1

Preview

Download Datasheet

View All

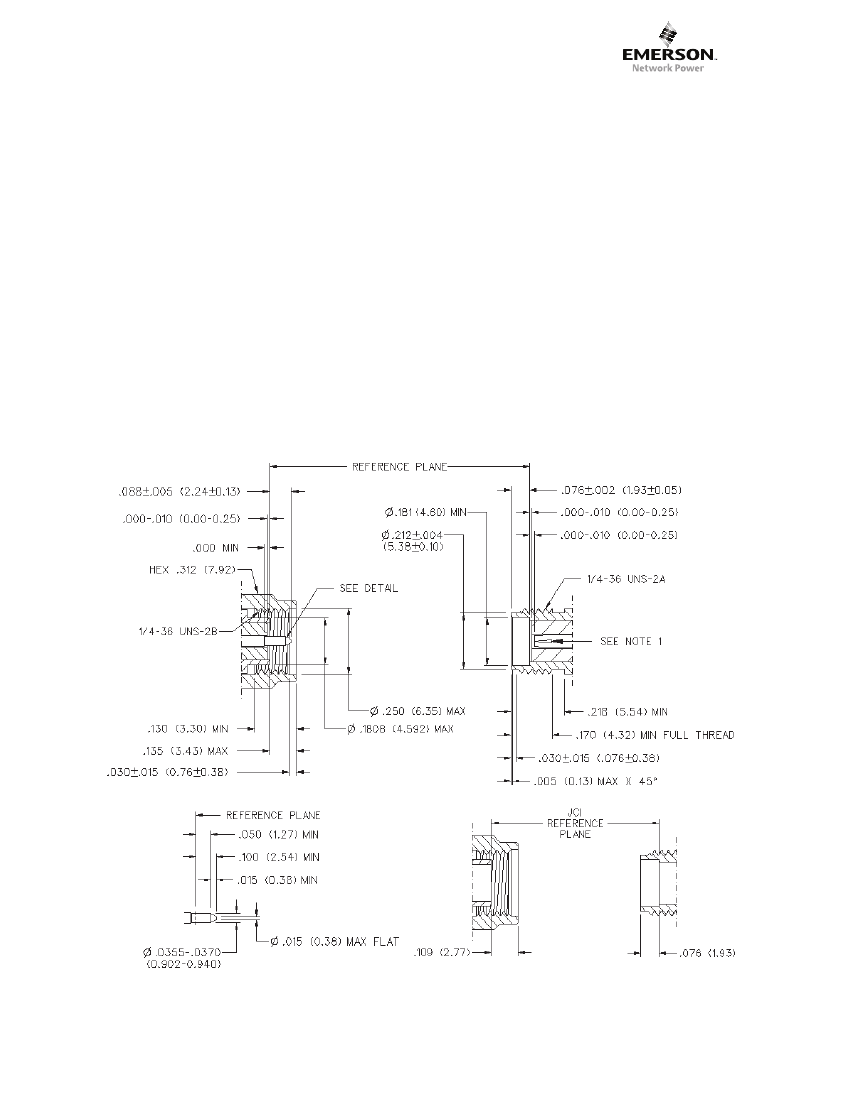

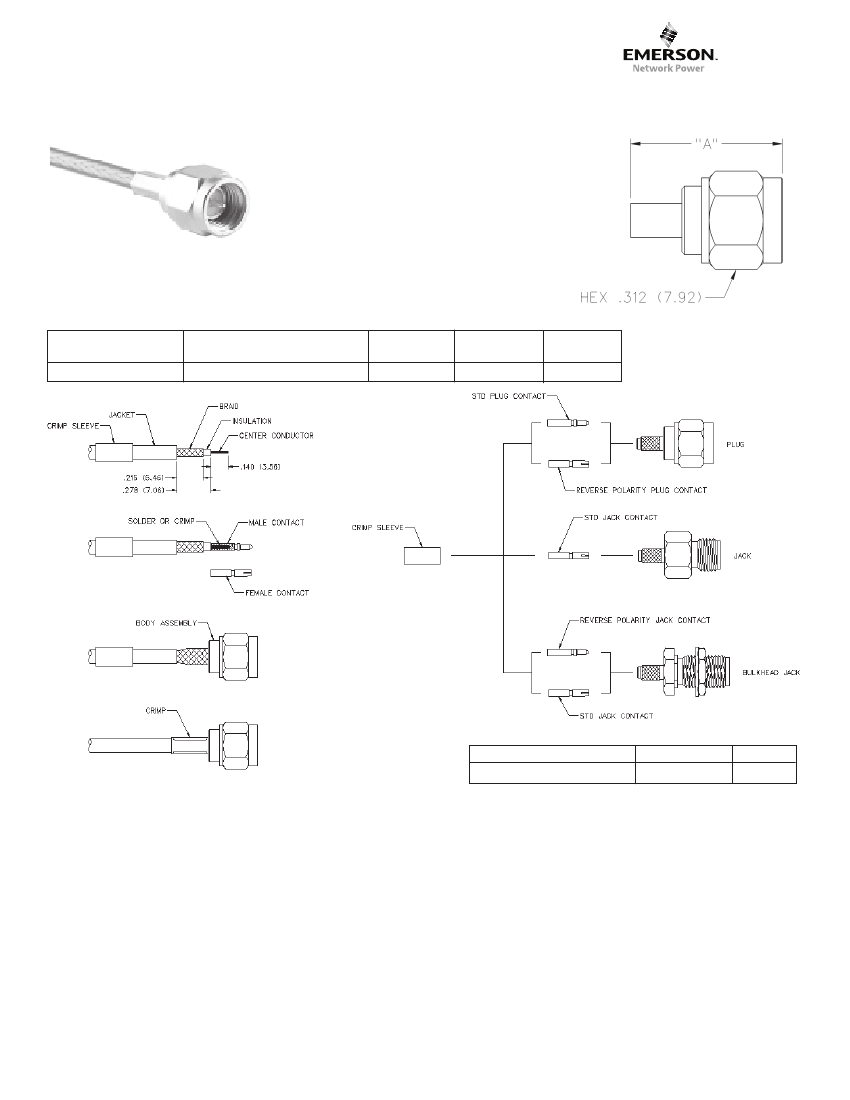

SMA 50 Ohm

Straight Crimp Type Plug (3-piece) -

Solder or Crimp Captivated Contact

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

CABLE

TYPE

RG-55/U, 142, 223, 400

VSWR &

FREQ. RANGE

1.15 + .01 f (GHz) 0-12.4 GHz

GOLD

PLATED

142-0408-011

NICKEL

PLATED

142-0408-016

“A”

.706 (17.93)

CABLE GROUP

RG-55/u, 142, 223, 400

PART NUMBER CRIMP HEX

142-0408-011/016 .213 (5.41)

Identify connector parts. (3 piece parts - except bulkhead)

Strip cable to dimensions shown. Do not nick braid or center conductor. Tin center conductor if contact will be solder attache d. Do not

tin center conductor if contact is to be crimp attached. When stripping LMR-100 low loss cable, remove foil back to where cabl e jacket

is stripped. A wire stripper of correct size is recommended for this step. Slide heat shrink (as applicable) and crimp sleeve onto jacket

of cable.

Assemble contact onto cable as shown.

Solder Attachment:

Solder contact to center conductor through solder hole using .020 (0.51) diameter solder. Use a minimum

amount of solder for a good joint.

Crimp Attachment:

Crimp contact to center conductor using Johnson Components

Hand Tool 144-0000-910, setting #2, with

positioner 141-0000-907. Crimp location should be centered between end of contact and X-hole. Crimp attachment to solid cente r

conductor cables is not recommended.

Flare braid and slide body assembly over contact and under braid. Then seat body assembly firmly onto contact. The cable may have

to be held in a clamping fixture. Arrange braid uniformly around crimp stem. Slide crimp sleeve forward and crimp using recom mended

crimp tool. Slide heat shrink forward and shrink (as applicable).

Emerson Network Power Connectivity Solutions

299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com
