Power Entry Modules with Line Filter
https://www.schurter.com /PG06
C20F

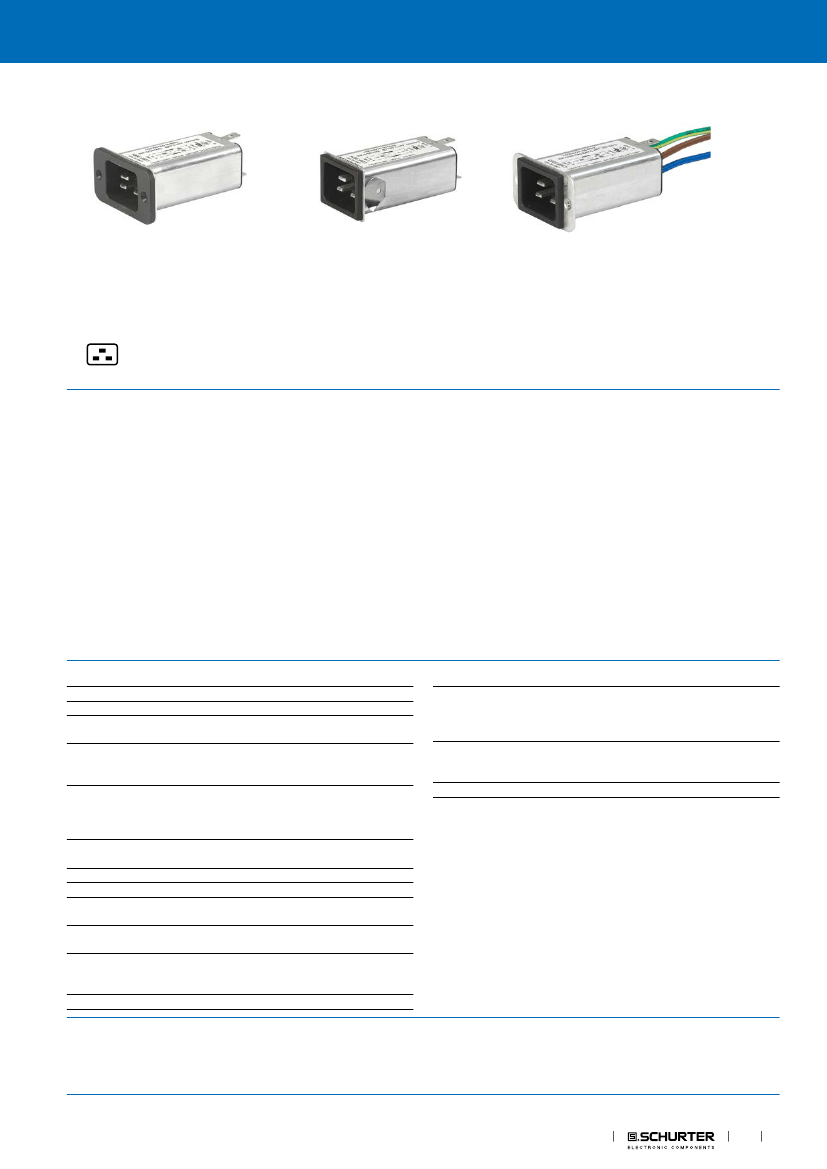

IEC Appliance Inlet C20 with Filter, Front or Rear Side Mounting
Screw-on mounting
from front side
Snap-in mounting
from front side
Screw-on mounting
from rear side
with wires (stranded)
C20
Approvals and Compliances
70° C
See below:
Description
- Panel mount :
Screw-on version from front or rear side, snap-in version from front
side
- 2 Functions :
Appliance Inlet Protection class I , Line filter in standard and medical
version
- Solder, quick connect or wires (stranded)
Characteristics
- Compact design with optimal shielding
Suitable for assembly in metal plated plastic housings
- Version with class X1 and X2 (standard version) capacitors
- Universal line filter for standard applications
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
- 16A according to UL
- Capacity CX 330 nF
Unique Selling Proposition
-
-
-
-
Attractive flat front design
Highly resistant since fully potted
Various filter variants
V-Lock cord retaining
References
Weblinks
Alternative: version without line filter
4793; 4798
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
16 A @ Ta 40 °C / 250 VAC; 50 Hz
20 A @ Ta 40 °C / 250 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
> 2.5 kV between L-N (CX2)
> 4 kV between L-N (CX1)
> 5 kV between L/N-PE (Cy2)
voltage (1.2/50
μs)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Solder, quick connect or wires (stran-
ded)
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1 mm to 3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C20 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 16 A,
Protection Class I
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 3'000'000 h acc. to MIL-HB-217 F
Line Filter
Impulse Withstand Voltage
MTBF
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
C20F
Approvals
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: C20F
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
VDE Certificate Number: 104884
UL File Number: E72928
CCC Certificate Number: CQC18001191999
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
C20F

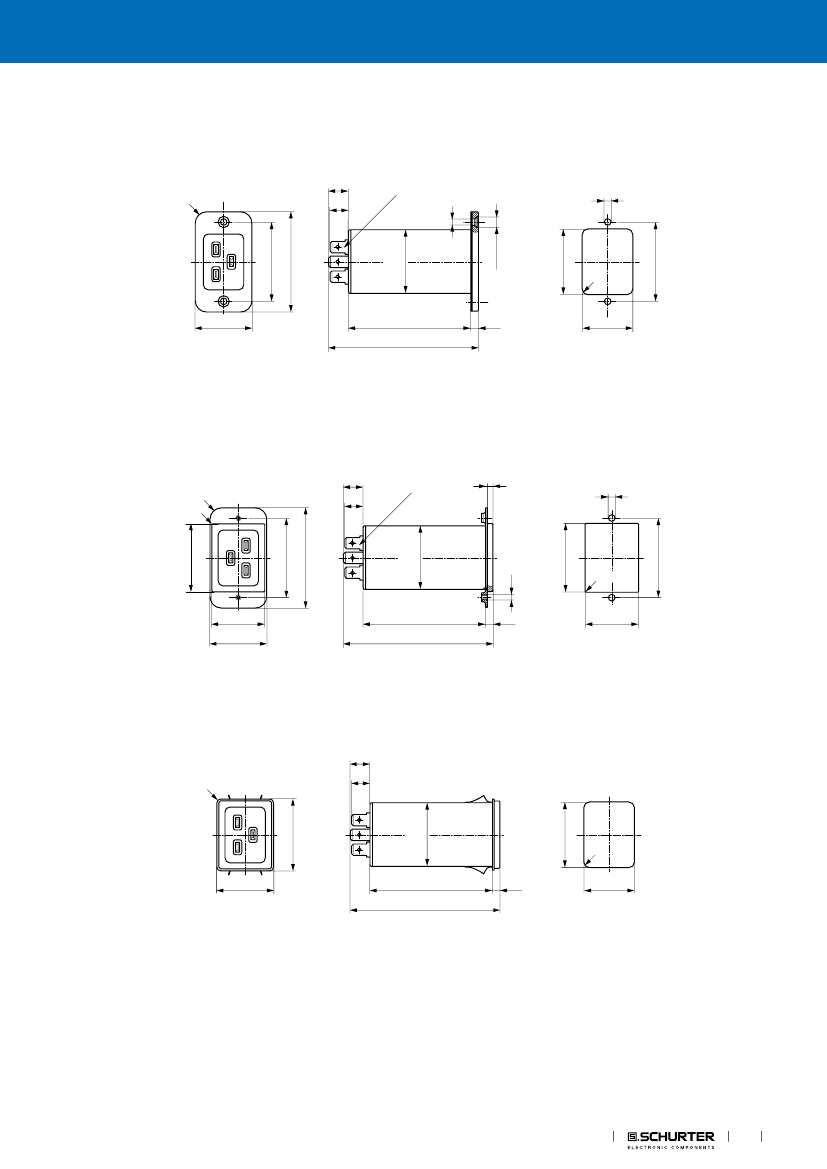

Dimensions [mm]
Screw-on from front side
10.7
R6
9.4
6.3 x 0.8
*
3.5/M3
3.5
ø 6.3x95°
34.8
+0.20
0
33.90
x 25.90
R3
30
64.65
79.2
3.85
26.8
+0.20
0
* Solder terminal: identical outer dimensions
Screw-on mounting from rear side with metal flange
10.7
R6
R 0.5
9.4
6.3 x 0.8
*
3
3.5
36.4
+0.20
0
33.90
x 25.90
M3
max. R 0.5
28
30
64.65
79.2
3.85
28.3
+0.20
0
Snap-in mounting from front side
10.7
R2
9.4
33.90
x 25.85
34.8
+0.20
0
38
R3
30
64.65
79.2
3.85
26.3
+0.20
0
EMC Products
42
±0.15
42
36
53
42
±0.15
42
53
3
C20F
Power Entry Modules with Line Filter
https://www.schurter.com /PG06

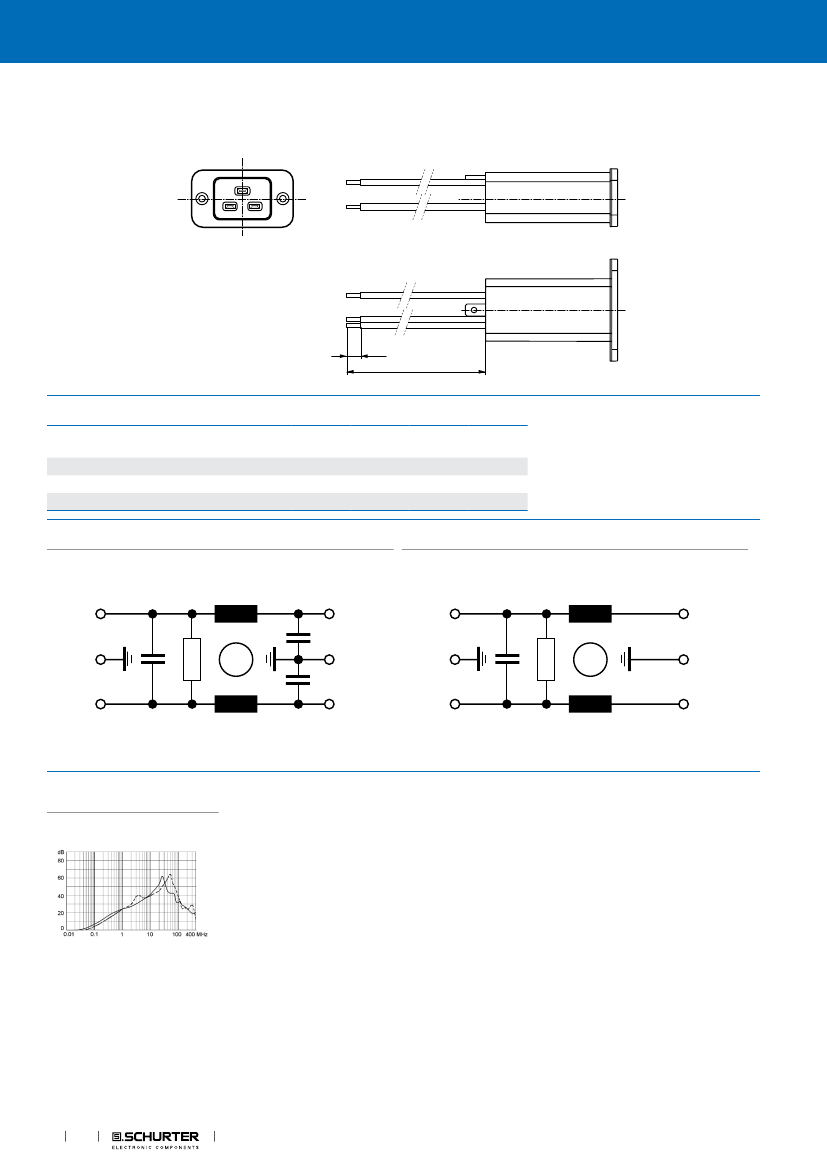

Screw-on mounting from front side with flexible wire
7
±2
150
+10
0
Technical Data of Filter-Components
Rated Current
[A]
16
16
16
Filter-Type
Standard Version
Medical Version (M5)
Medical Version (M80)
Inductances
L [mH]
2 x 0.3
2 x 0.3
2 x 0.3
Capacitance
CX [nF]
100
100
100
Capacitance
CY [nF]
2.2
-
0.47
R [MΩ]
1
1
1
Diagrams
Standard or medical version (M80)
Medical version (M5)
L
L1
L’
R
L2
Cy
Cy
L
L1
L’
R
L2
1)
PE
Cx
PE’
2)
N’
1)
PE
Cx
PE’
2)
N’
N
1) Line
2) Load
N
1) Line
2) Load
Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
20 A
4
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
C20F
Medical version (M5)
20 A
All Variants
Rated Current
IEC
Rated Current Filter-Type
UL
Panel mounting
Mounting side
Terminal
Capacitor
V-Lock
Order Number
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
█
Most Popular.
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Solder terminals
Solder terminals
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Solder terminals
Solder terminals
Flexible wire AWG14
Flexible wire AWG14
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Solder terminals
Solder terminals
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Solder terminals
Solder terminals
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Solder terminals
Solder terminals
Flexible wire AWG14
Flexible wire AWG14
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Solder terminals
Solder terminals
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
X2 100nF
X1 100nF
l
l
l
l
l
l
l
l
C20F.0111
C20F.0113
C20F.0011
C20F.0013
C20F.0101
C20F.0103
C20F.0001
C20F.0003
C20F.0221
C20F.0223
C20F.0121
C20F.0123
C20F.0021
C20F.0023
C20F.0112
C20F.0114
C20F.0012
C20F.0014
C20F.0102
C20F.0104
C20F.0002
C20F.0004
C20F.0222
C20F.0224
C20F.0122
C20F.0124
C20F.0022
C20F.0024
█
█
█
█
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Wire length: 150 mm
EMC Products
5
