19052257: DescriptionSingle Color LED, Blue, Diffused, 5mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size124KB，2 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

19052257 Overview

Single Color LED, Blue, Diffused, 5mm, ROHS COMPLIANT PACKAGE-2

19052257 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Is Samacsys	N
color	BLUE
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	DIFFUSED
Nominal luminous intensity	60.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	60 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	3 mm
method of packing	BULK
shape	ROUND
size	5 mm
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

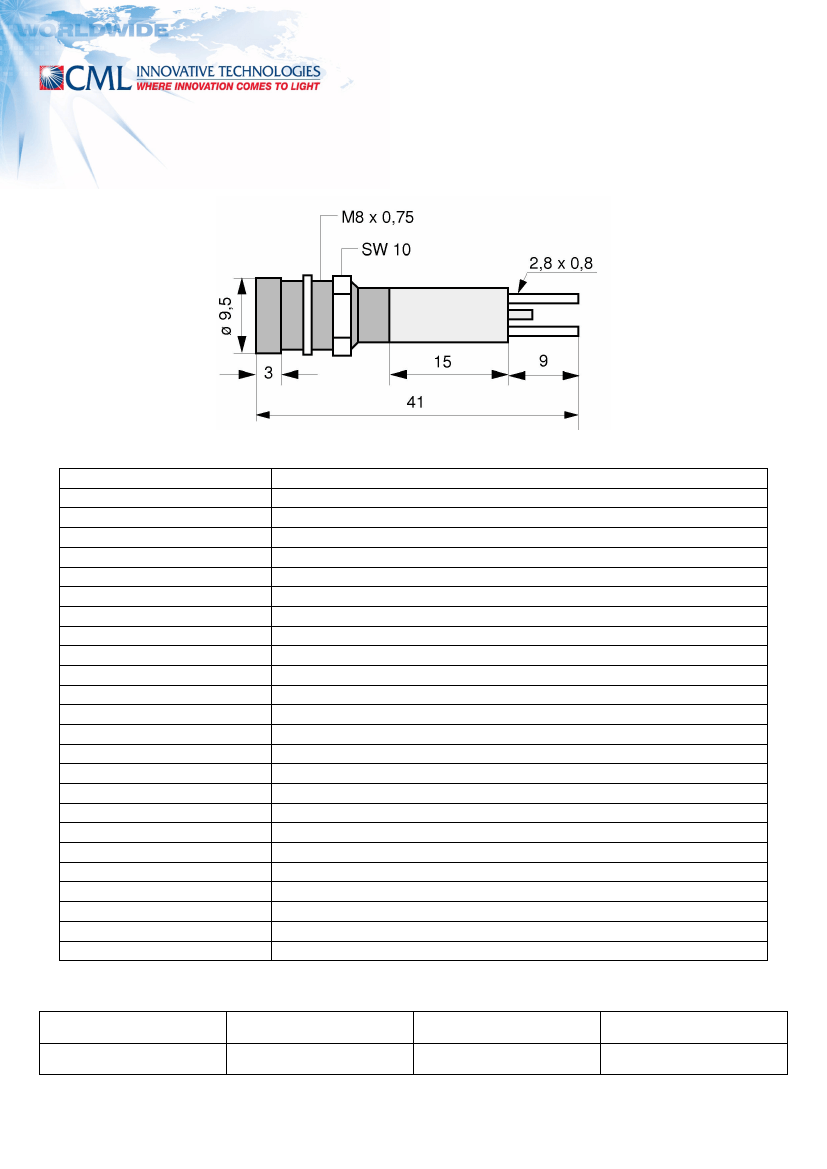

Part Number : 19052257

Serial Number : 1905

LEDs Indicators

Mounting hole (inch)

Mounting hole (metric)

Indicator type

Mounting type

Bezel type

Bezel material

Bezel color

Bezel size

Protection

Lens type

Lens color

Lens size

Connector Tpe

Connector number

Connector for lamp test

Number LED chip

Indicator color

Dom wave length

Peak Wave Lenght (mA)

Op. voltage (V)

Forward volt max.

Rectifier

AC current

DC current

Lum in min (mcd)

0.3150"

8mm

standard

with bezel

recessed

metal

matt chrome

M8

IP40

round

blue diffused

5mm

tab terminals 2.8x0.8mm

2

no

1

blue

466nm

12V DC

-

20mA

Drawn : ROJ

Revision :

Ch'd : ROJ

Revision date : 2006-03-15

Datasheet : 1905

Name : ROJ

Print date : 12/09/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
