Polysnap
®
With over 26,000 combinations Bulgin’s Polysnap mains power inlet
modules offer a very adaptable and flexible solution to panel design.
Polysnap allow combinations of mains inlets and outlets, filtered inlets,
switches, fuseholders, voltage selectors and indicators mounted in either
horizontal or vertical format bezels ready for quick snap-fit assembly. The
compact design occupies the minimum of panel area and a single
rectangular mounting hole, offering easy installation for this mains power
entry module.
To complement Polysnap the Polyflange range offers a flange fixing
alternative for designers who prefer the security of screw fixing.
All types and variations are available through Bulgin’s extensive
distribution network.
Type
BZV Series
BZH Series
BZM Series
BVA & BVB Series
Filter Options
Page
108-116
117-121
122
123-124
125-129
www.elektron-bulgin.com
105
IEC CONNECTORS
POLYSNAP
®
POWER INLET MODULES
Components used in Polysnap
®
and Polyflange Power Inlet Modules
Note: Components are Approved Individually (where applicable). Please see individual component pages for full specifications.

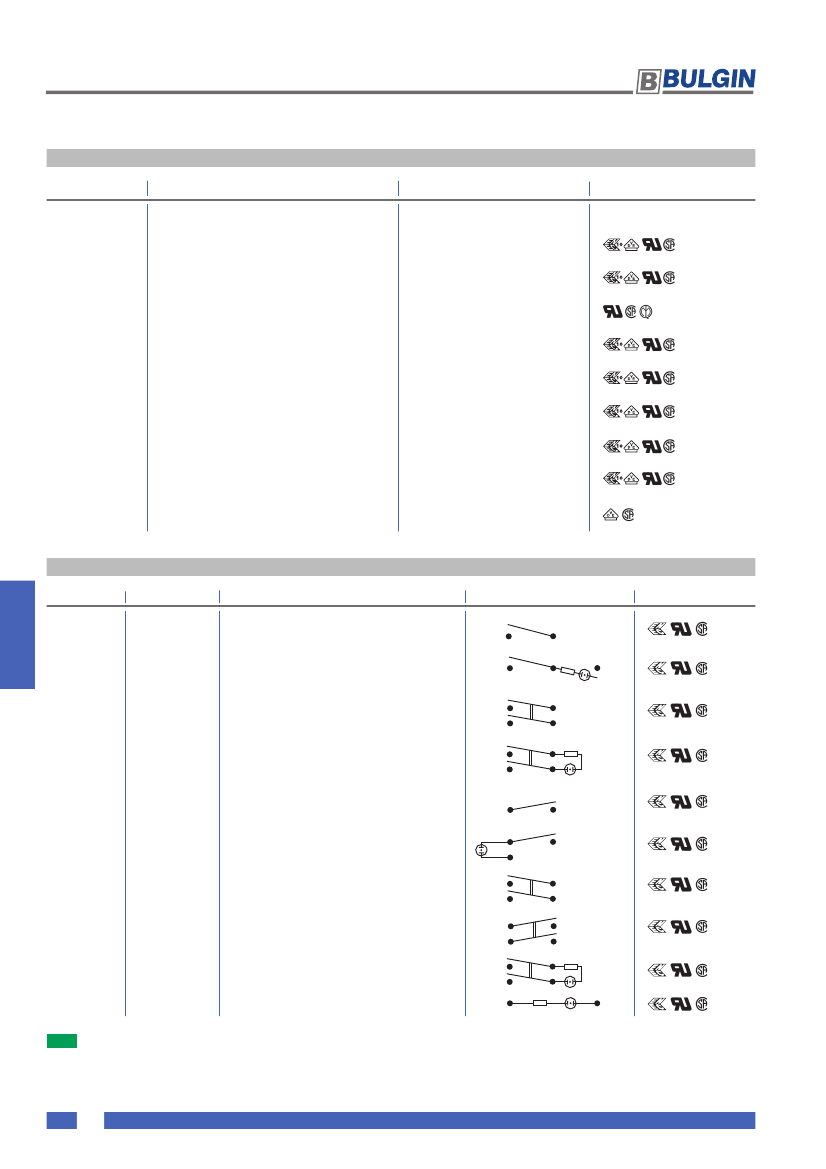

IEC CONNECTORS, FUSEHOLDERS AND VOLTAGE SELECTORS
Type
DX0928
FX0359
PF0011
PF0033
PX0575
PX0595
PX0695
PX0783
PX0598
VS0001
Description
Neon Indicator
5 x 20mm Fuseholder
C14 Power Inlet with Integral 5 x 20mm
Fuseholder
C14 Power Inlet with Integral twin 5 x 20mm
Fuseholder
C14 Power Inlet, Cold condition
C16 Power Inlet, Hot Condition
Sheet F Power Outlet
Sheet F Shuttered Power Outlet
C20 Power Inlet
Voltage Selector marked 120/240V
Rating
110V or 250V a.c./d.c. working
Max. rating 10A. 250V
See Page 150
Max. rating 10A. 250V a.c.
See Page 81
Max. rating 10A. 250V a.c.
See Page 82
Max. rating 10A. 250V a.c.
See Page 77
Max. rating 10A. 250V a.c.
See Page 83
Max. rating 10A. 250V a.c.
See Page 90
Max. rating 10A. 250V a.c.
See Page 91
Max. rating 16A, 250V a.c.
See Page 93
Max. rating 6.3A. 120/240V a.c.
See Page 196
Approvals
SWITCHES, INDICATORS AND CIRCUIT BREAKERS
IEC CONNECTORS
No Poles
Single Pole
Illumination
Non-illuminated
High Inrush
Illuminated
Double Pole
Non-illuminated
High Inrush
Illuminated
For Mini Bezel:
Single Pole
Non-illuminated
Illuminated
Max. rating 10A Resistive, 4A Inductive, 250Vac.
Max. rating 10A Resistive, 4A Inductive, 250Vac.
250Vac Neon.
Max. rating 10A Resistive, 4A Inductive, 250Vac.
Max. rating 10A Resistive, 4A Inductive, 250Vac.
Inrush current, 85A to EN61058-1.
Max. rating 10A Resistive, 4A Inductive, 250Vac.
250Vac Neon.
250Vac neon lamp connected internally to terminals.
1a
1a
3b
1
4
1a
3b
1
4
1
2
5
2a
4b
2
5
3
2a
2a
Current Ratings
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Inrush current, 150A to IEC65.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Inrush current, 150A to IEC65.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
250Vac Neon.
Circuit
Approvals
1
1
2
3
2
2
5
2
5
1
4
1
4
Double Pole
Non-illuminated
High Inrush
Illuminated
Indicator
RoHS
Polysnap and Polyflange range and all components are compliant
106
www.elektron-bulgin.com
POLYSNAP
®
POWER INLET MODULES
OVERVIEW OF POLYSNAP MODULES
INLETS
Style
Snap to Panel -
Vertical
C14
With SP switch
Page 110
C14 Fused
With SP switch
Page 108
With DP Switch
Page 109
C16
With SP switch
Page 110
C20
With SP switch
Page 114
OUTLETS
Sheet F
With SP switch
Page 116
INLET/OUTLET COMBINATIONS
C14
C14 Fused
With other
components
Pages 111, 112, 113
With other
components
Pages 111, 112, 113
With other
components
Page 115
Snap to Panel -
Horizontal
With SP switch
Page 117
With DP Switch
Page 118
Mini Bezel
With SP Switch
Page 122
Mini Bezel
With DP Switch
Page 122
With SP switch
Page 119
With DP switch
Page 120
No additional
components
Page 121
Flange Mount -
Vertical
With SP switch
Page 123
With DP switch
Page 124
www.elektron-bulgin.com
107
IEC CONNECTORS

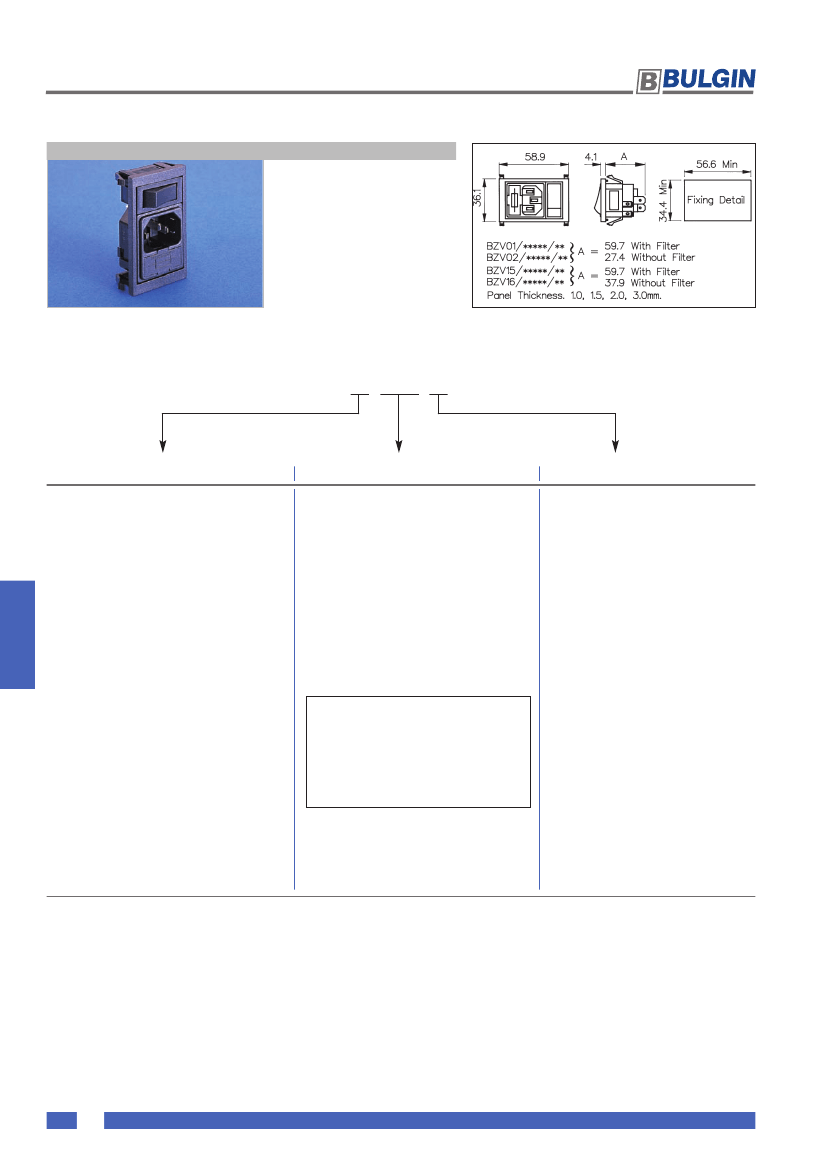

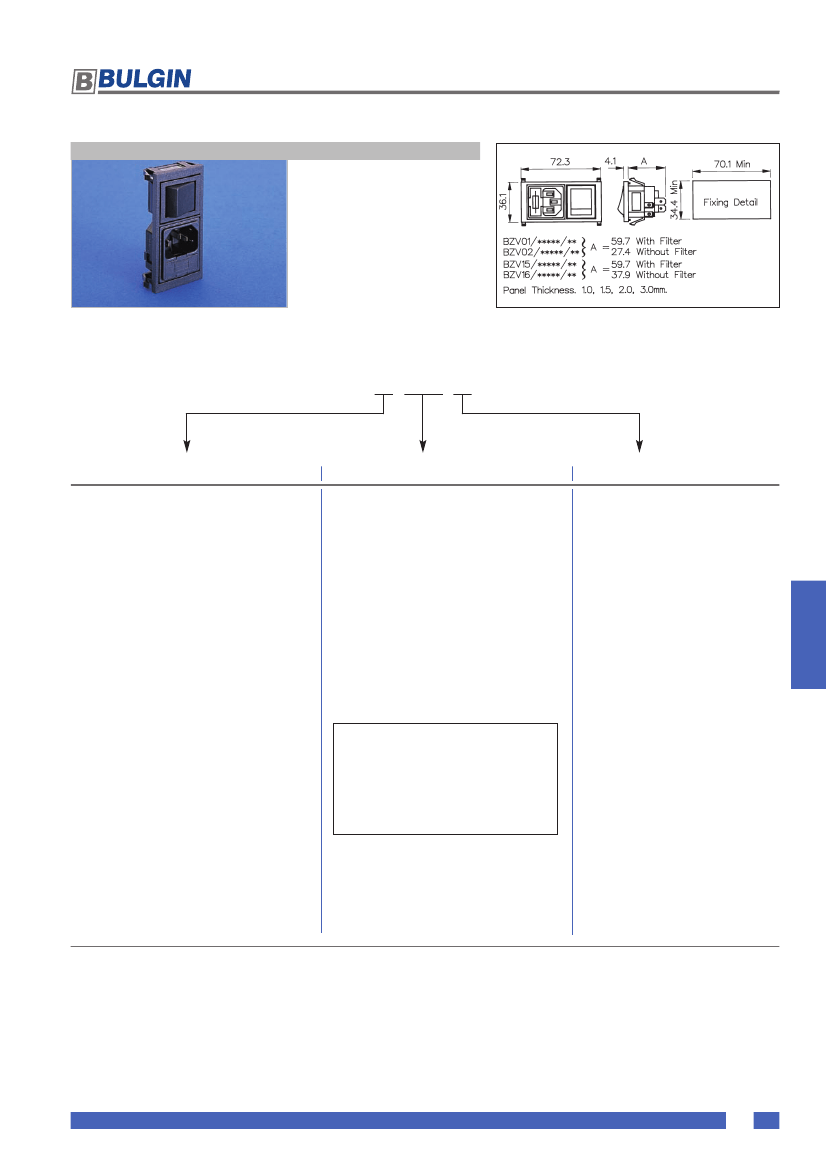

C14 IEC Fused Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
Fused Inlet with 2.8mm or
6.3mm tags
Single Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZV01/Z0000/01
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
Single Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
01
= PF0011/63
02
= PF0011/28
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical (Twin Fuse Version only)
Combination of Other Components
Single Pole Switch:
01
= S.P Switch
.
Single Pole Neon Switch:
02
= S.P Red Neon Switch
.
08
= S.P Green Neon Switch
.
Neon Indicator:
03
= Red Neon Indicator
Single Pole High Inrush Switch:
46
= S.P High Inrush Switch
.
IEC CONNECTORS
Twin Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
15
= PF0033/63
16
= PF0033/28
For Filtered inlet use 6th to 9th characters from filter
ordering code see pages 127-129.
Single Pole Switch Marked I/O:
69
= S.P Switch (I/O)
.
E.g. BZV01/A0620/01
Single Pole Neon Switch Marked (I/O):
71
= S.P Red Neon Switch (I/O)
.
74
= S.P Green Neon Switch (I/O)
.
Single Pole High Inrush Switch Marked (I/O):
98
= S.P High Inrush Switch (I/O)
.
Note: For technical details of individual components please see page 106
108
www.elektron-bulgin.com
C14 IEC Fused Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
Fused Inlet with 2.8mm or
6.3mm tags
Double Pole Switch or
Indicator Variations
Filtered Inlet Option
Options of I/O marked
switches
BZV01/Z0000/10
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
Single Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
01
= PF0011/63
02
= PF0011/28
Twin Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
15
= PF0033/63
16
= PF0033/28
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical (Twin Fuse Version only)
Combination of Other Components
Neon Indicator:
D3
= Red Neon Indicator
Double Pole Switch:
Double Pole Neon Switch:
11
= D.P Red Neon Switch
.
12
= D.P Green Neon Switch
.
Double Pole High Inrush Switch:
13
= D.P High Inrush Switch
.
For Filtered inlet use 6th to 9th characters from filter
ordering code see pages 127-129.
E.g. BZV01/A0620/10
Double Pole Switch Marked I/O:
70
= D.P Switch (I/O)
.
Double Pole Neon Switch Marked (I/O):
76
= D.P Red Neon Switch (I/O)
.
77
= D.P Green Neon Switch (I/O)
.
Double Pole High Inrush Switch Marked
(I/O):
78
= D.P High Inrush Switch (I/O)
.
B1
= D.P High Inrush Green Neon Switch
.
(I/O)
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
109
IEC CONNECTORS
10
= D.P Switch
.
