3-1415542-5: DescriptionSafety Relay, 6PST, Momentary, 0.067A (Coil), 12VDC (Coil), 800mW (Coil), 8A (Contact), DC Input, Random, Panel Mount; CategoryMechanical and electronic products relay; File Size526KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1415542-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1415542-5	-	-	View	Buy Now

3-1415542-5 Overview

Safety Relay, 6PST, Momentary, 0.067A (Coil), 12VDC (Coil), 800mW (Coil), 8A (Contact), DC Input, Random, Panel Mount

3-1415542-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1805114949
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	Body Features: Product Weight 1.058 OZ \| Product Weight 30 G \| Contact Features: Contact Material AgSnO2+Au \| Contact Current Class 5 â€“ 10 AMP \| Contact Special Features Force Guided Contacts \| Contact Number of Poles 6 \| Contact Arrangement 4 Form A (NO) + 2 Form B (NC) \| Contact Current Rating (Max) 8 AMP \| Dimensions: Height Class (Mechanical) 15 â€“ 20 MM \| Width Class (Mechanical) 16 â€“ 20 MM \| Product Length 55 MM \| Product Width 16.5 MM \| Product Length 2.16 INCH \| Length Class (Mechanical) 50 â€“
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-03 12:06:34
body width	16.5 mm
body height	16.5 mm
Body length or diameter	55 mm
Coil current (AC) maximum value	0.067 A
Maximum coil current (DC)	0.067 A
Coil operating voltage (DC)	9 V
Coil power	800 mW
Coil release voltage (DC)	0.9 V
Coil resistance	180 Ω
Maximum coil voltage (DC)	12 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	8A@400VAC
Maximum contact current (AC)	8 A
Maximum contact current (DC)	8 A
Contact resistance	100 mΩ
Maximum contact voltage (AC)	400 V
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1500 Vrms
End contact material	SILVER TIN OXIDE
Input switching control type	Random
Installation features	PANEL MOUNT
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	BOX; TUBE
physical size	55mm x 16.5mm x 16.5mm
Guideline	CQC; TUV; UL; VDE
Relay action	MOMENTARY
Relay function	6PST
Relay type	SAFETY RELAY
seal	RT3
surface mount	NO
Terminal length	0.0024993649987299976 inch
Termination type	SOLDER/QUICK CONNECT
weight	30 g

Preview

Download Datasheet

View All

General Purpose Relays

Force Guided Relays

Force Guided Relay SR6 A/B/C/V

Schrack

6 pole relay with force guided contacts according to EN 50205

Reinforced insulation between all contacts

Typical applications

Emergency shut-off, press control, machine control, elevator and escalator

control, safety relays

F0206-EA

VZT

Approvals

VDE 128935, cULus E214024, TUV 968/EL 350, CQC 0617015576/77

Technical data of approved types on request

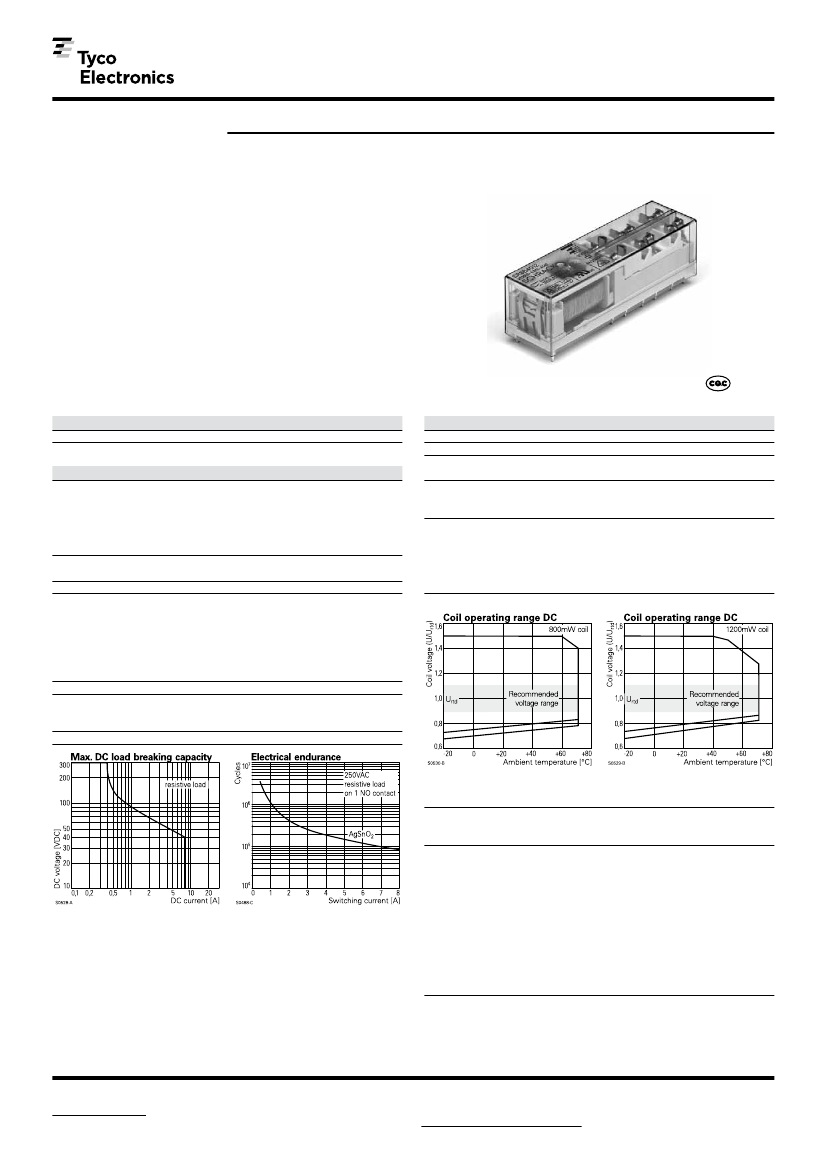

Coil Data

Coil voltage range

Max. coil power

Coil versions, DC-coil 800mW

Coil

Rated

Operate

code

voltage

VDC

K12

K15

11.3

K18

13.5

K21

K24

K36

5 to 110VDC

1200mW or 800mW

Release

voltage

VDC

0.9

1.5

1.8

2.1

2.4

3.6

Coil

resistance

Ω±10%

180

281

405

551

720

1620

Rated coil

power

800

801

800

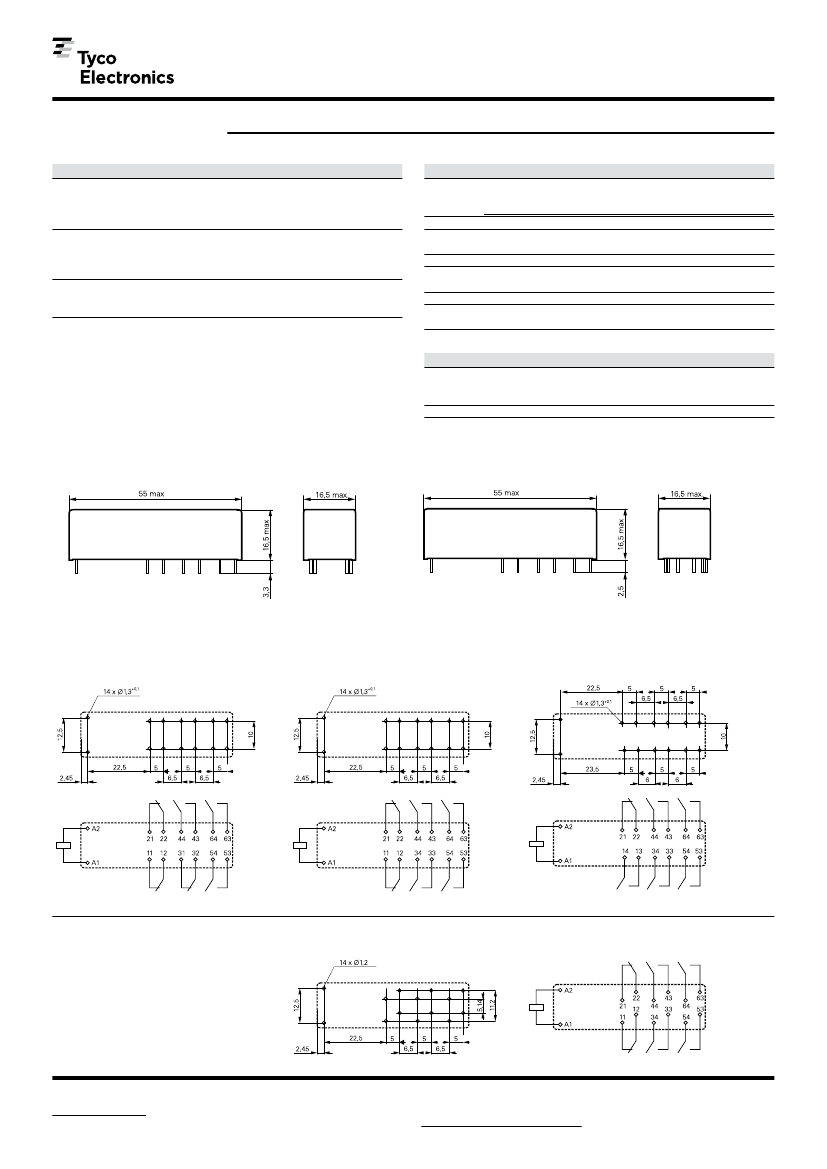

3 form A + 3 form B contacts

3 NO + 3 NC,

4 form A + 2 form B contacts

4 NO + 2 NC,

5 form A + 1 form B contacts

5 NO + 1 NC

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

Contact material

AgSnO

+ 0.2μm Au

Contact style

single contact, force guided

type A according to EN 50205

Min. recommended contact load

5V, 10mA

Initial contact resistance

≤100mΩ at 1A, 24VDC

≤20Ω at 10mA, 5VDC

Frequency of operation, with/without load

6/150min

-1

Contact ratings, IEC60947-5-1,

on 2 form A (NO) contact

AC15-5A

DC13-6A

Mechanical endurance

10x10

operations

Contact Data

Contact arrangement

All figures are given for coil without pre-energization, at ambient temperature +23°C.

Coil versions, DC-coil 1200mW

Coil

Rated

Operate

code

voltage

VDC

005

3.8

006

4.5

009

6.8

012

018

13.5

021

024

036

040

048

060

110

Release

voltage

VDC

0.5

0.6

0.9

1.2

1.8

2.1

2.4

3.6

4.0

4.8

Coil

resistance

Ω±10%

120

270

368

480

1080

1333

1920

3000

10080

Rated coil

power

1190

1200

1191

1200

1198

1200

1) Coil resistance ±12%.

All figures are given for coil without pre-energization, at ambient temperature +23°C.

09-2010, Rev. 0910

www.tycoelectronics.com

Datasheets and product specification ac-

cording to IEC 61810-1 and to be used only

together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.tycoelectronics.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.
