3-178750-0 datasheet, PDF - EEWORLD Datasheet

3-178750-0: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,SKT,0.031 PITCH,WHITE; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

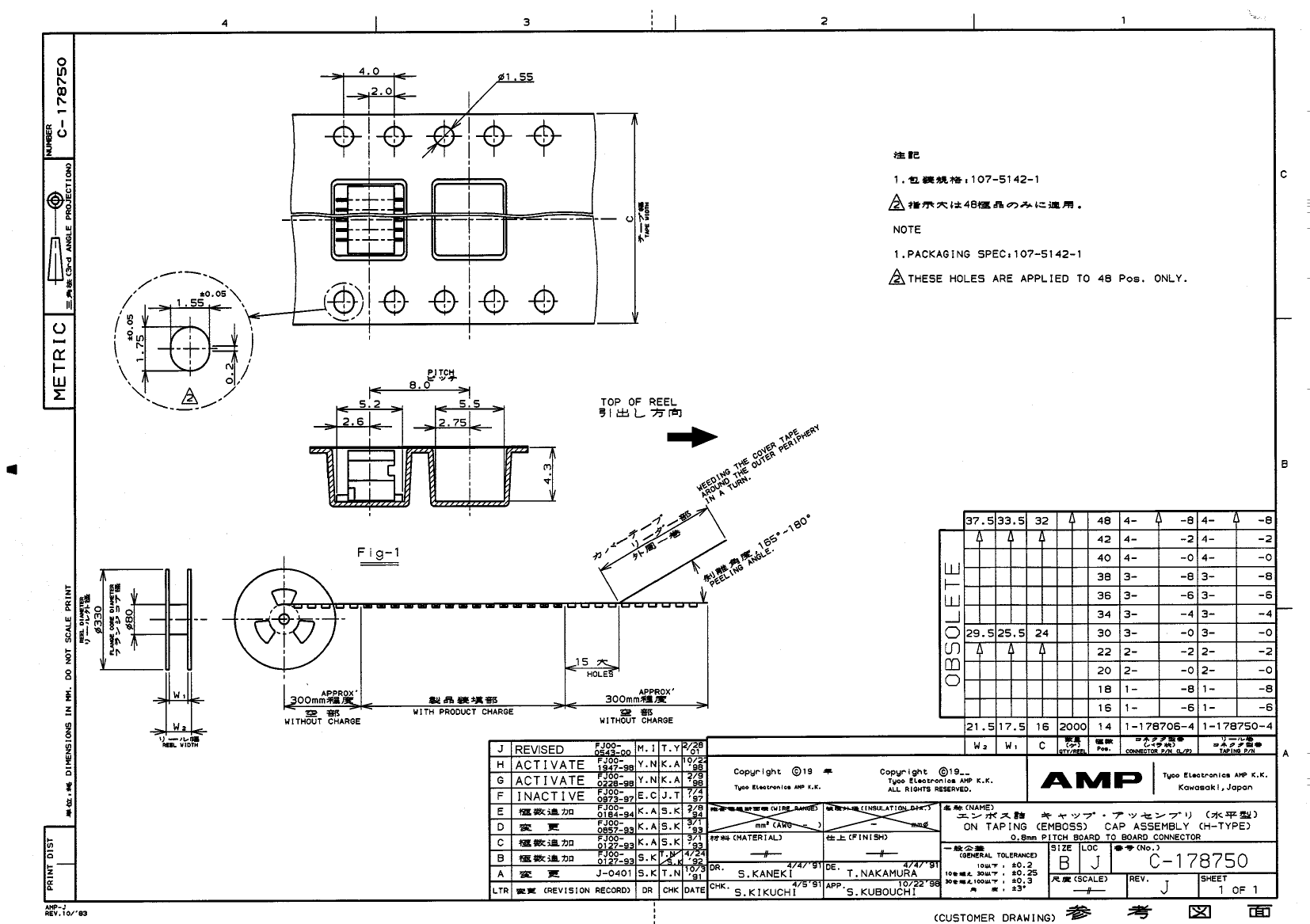

3-178750-0 Overview

HEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,SKT,0.031 PITCH,WHITE

Parameter Name	Attribute value
Objectid	300417144
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.161 inch
subject depth	0.144 inch
body length	0.528 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	50VAC V
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	POLYESTER
Manufacturer's serial number	178750
Plug contact pitch	0.031 inch
Installation method	RIGHT ANGLE
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.4958 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Total number of contacts	30
