340100102BDDME78SNMC

Description
D SUBMINIATURE CONNECTOR
CategoryThe connector    The connector
File Size268KB,8 Pages
ManufacturerC&K
Download Datasheet Parametric View All

340100102BDDME78SNMC Overview

D SUBMINIATURE CONNECTOR

340100102BDDME78SNMC Parametric

Parameter NameAttribute value
MakerC&K
Reach Compliance Codecompliant
Connector typeD SUBMINIATURE CONNECTOR

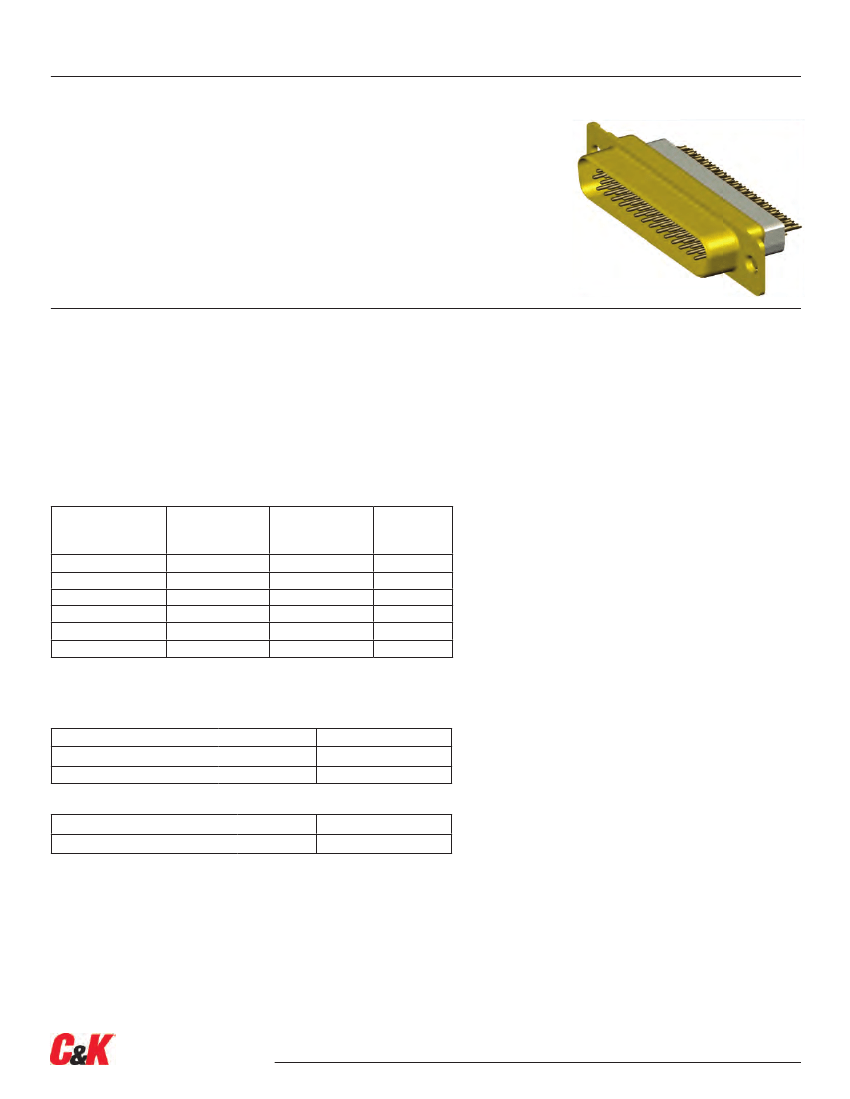

3401-001 D*M High Density Solder Bucket Contacts
D*M High Density Solder Bucket contacts compliant to ESA/ESCC 3401-001 Specification
Features/Benefits
Compliant with ESA/ESCC specification
Solderable contacts
Harnesses length flexibility
High density layouts
Typical Applications
Space equipments
Avionics / Military
Industrials applications
Specification
Compliant to ESA/ESCC specifications 3401/001 and MIL-DTL-24308.
Solder bucket contacts terminations.
Compatible with D*M ESCC 3401/001, D*MA ESCC 3401/002,
Savers 3401/020 and Accessories 3401/022.
PIN and SOCKETS arrangements available.
SIZE AVAILABLE: 15 , 26 , 44 , 62 , 78 and 104 ways.
ACCEPTED WIRES SIZE: insulated AWG 22, AWG 24, AWG 26 and AWG 28.
STARCLIP FEMALE CONTACTS TECHNOLOGY.
Distance between 2 contacts rows (sizes 15,26,44 & 62): 1,98mm (.078 inch)
Distance between 2 contacts rows (sizes 78 & 104): 2,08mm (.082 inch)
Quality Level
ESA / ESCC: code 3401001 (Flying model)
Standard space: code FR022 (Engineering Model)
Process to use it
Options
Wires stripping
Cables soldering onto contacts
Optional captive nuts or float mounting (consult factory)
Mechanical
Type
Size 15
Size 44
Size 62
Size 78
Size 104
Mating force
(N.max)
77
46
Contact retention
force
(N.max)
40
40
40
40
40
40
Max Weight
(g)*
13,2
20,8
29,4
35,6
45,8
9
Packaging
Individual packaging and traceability associated as per
ESA/ESCC specifications
Each D*M connector is sold with a dust cap in individual
plastic bag
Size 26
127
177
222
295
* Weights without floating eyelets or captive nuts.
Electrical
Working Voltage (Sea level):
Rated Current AWG 22 / 24 / 26
Rated Current AWG 28
250 Vrms
5A
3A
Temperature Range
Operating Temperature range
Storage Temperature Range
-55 to +125 °C
-65 to +125 °C

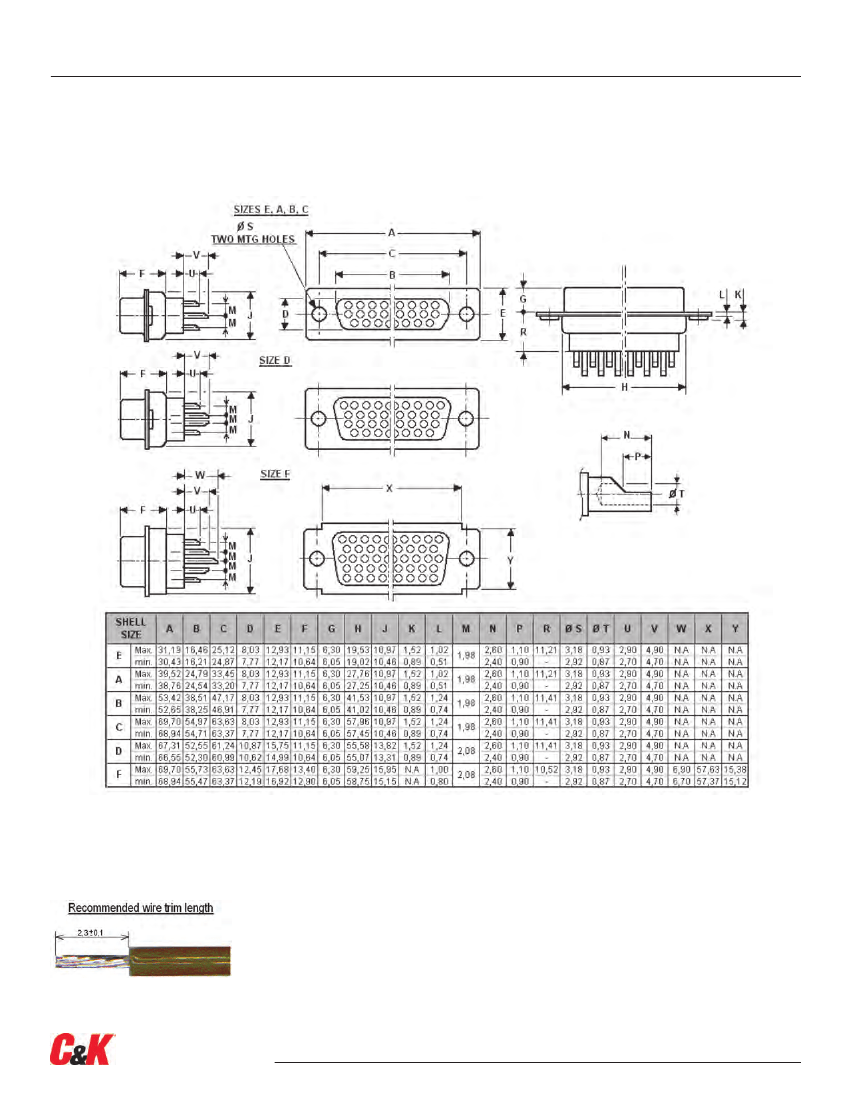

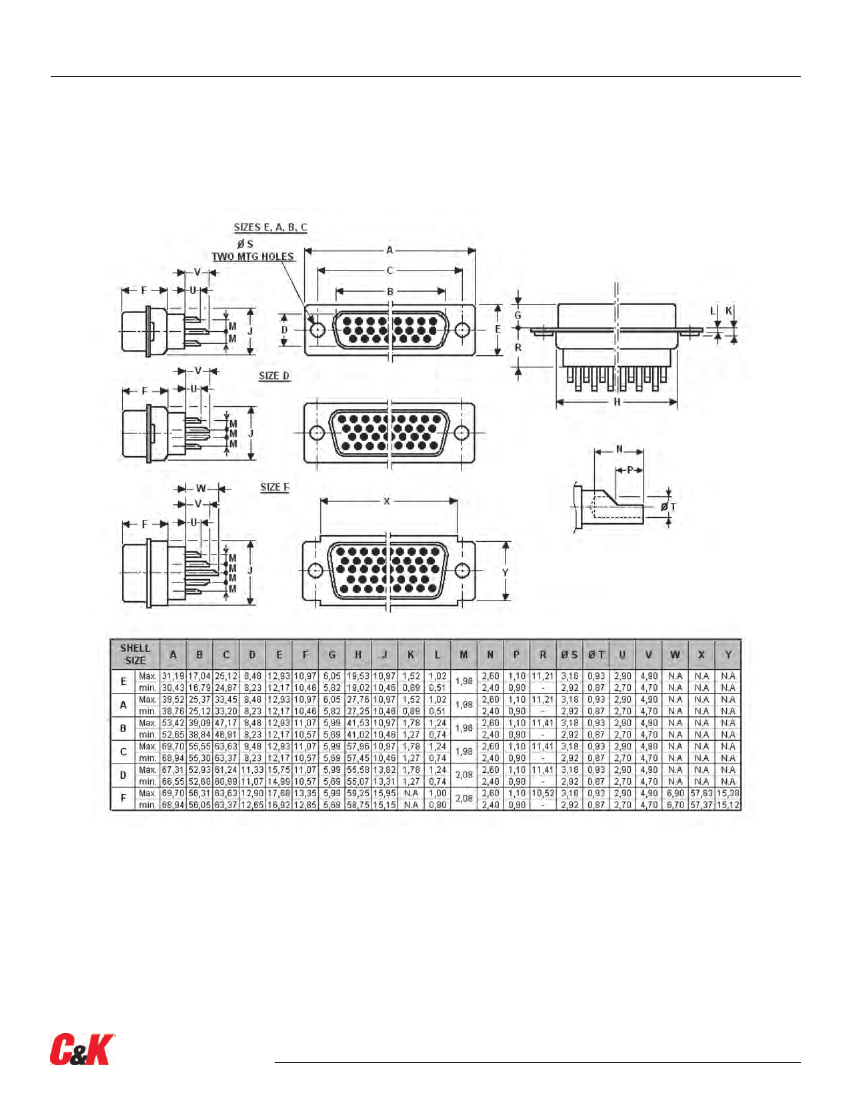

Dimensions are shown in mm (inch)
Dimensions subject to change
A4-1
www.ck-components.com
Rev. 23APR13
