54241630-B datasheet, PDF - EEWORLD Datasheet

54241630-B: Descriptionautomotive connectors 16w FM hsing blk black 1.5mm term SZ; CategoryThe connector; File Size743KB，1 Pages; ManufacturerDelphi Connection Systems; Environmental Compliance

Download Datasheet Parametric Compare View All

54241630-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54241630-B	-	-	View	Buy Now

automotive connectors 16w FM hsing blk black 1.5mm term SZ

Parameter Name	Attribute value
Manufacture	Delphi Connection Systems
Product Category	Automotive Connectors
RoHS	Yes
Produc	Connectors
Number of Positions	16
Gende	Female
Mounting Style	Wire
Wire Gauge Range	22
Applicati	Wire to Wire
Associated Terminals	h
Col	Black
Current Rating	25 A
Description/Functi	16 Female, Connector, APEX 1.5 mm, Black, Sealed

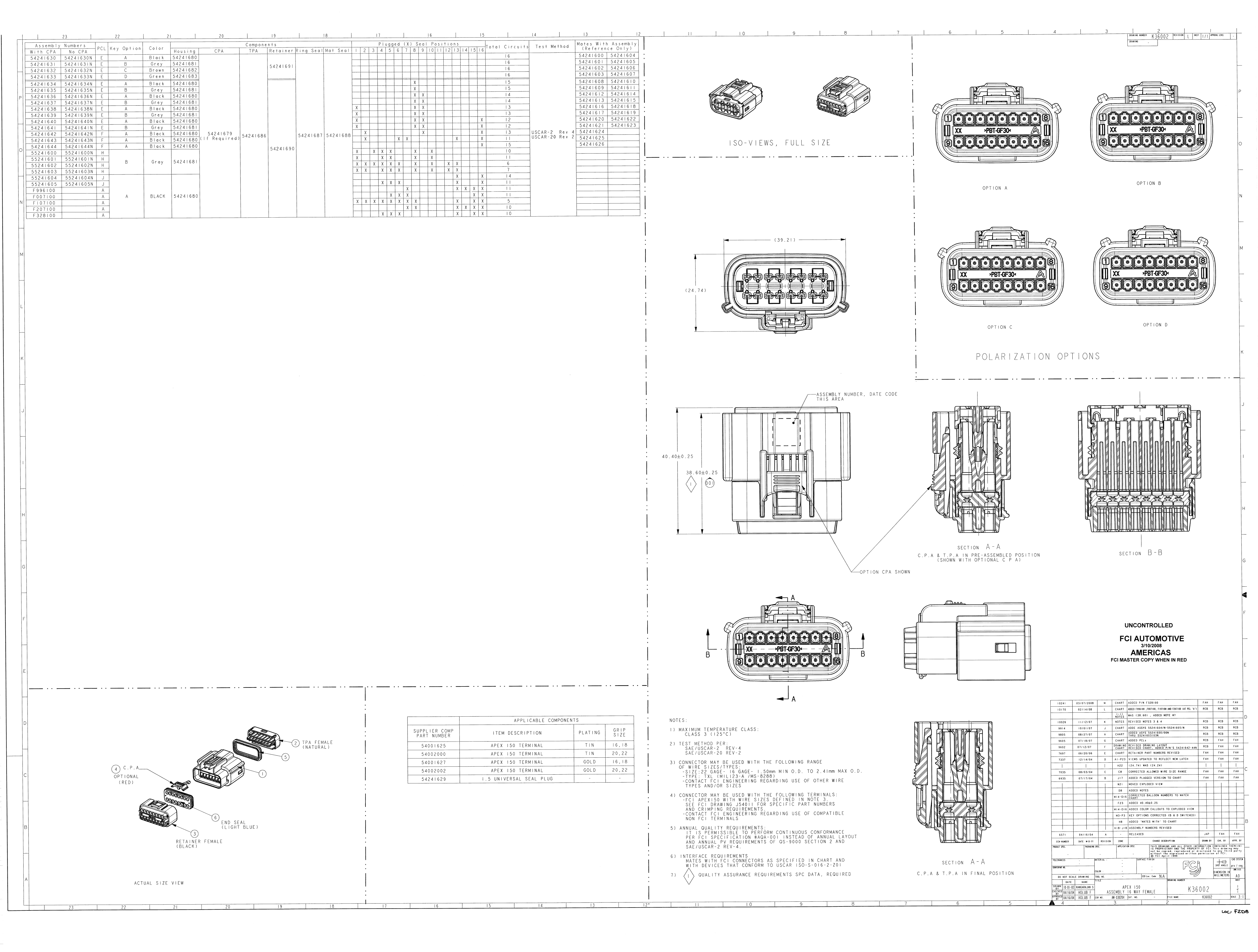

Drawing	h
Family	APEX
Housing Material	Polyamide (PA)
Index Type	A
Locking Mechanism	CPA
Material	Ultramid A3EG7 Nylon 6/6 GF35
Mating Part Numbe	54241600
Mounting Method	Wire
Number of Rows	2
Operating Temperature Range	- 40 C to + 125 C
Pitch	3.5 mm
Second Mating Part Numbe	54241604
Three D Model	h
Type	Connec

	54241630-B	54241630N-B
Description	automotive connectors 16w FM hsing blk black 1.5mm term SZ	automotive connectors 16wf apex 150 assy W/O cpa
Manufacture	Delphi Connection Systems	Delphi Connection Systems
Product Category	Automotive Connectors	Automotive Connectors
Produc	Connectors	Connectors
Number of Positions	16	16
Gende	Female	Female
Mounting Style	Wire	Wire
Wire Gauge Range	22	22
Applicati	Wire to Wire	Wire to Wire
Associated Terminals	h	h
Col	Black	Black
Current Rating	25 A	25 A
Description/Functi	16 Female, Connector, APEX 1.5 mm, Black, Sealed	16 Female, Connector, APEX 1.5 mm, Black, Sealed
Drawing	h	h
Family	APEX	APEX
Housing Material	Polyamide (PA)	Polyamide (PA)
Index Type	A	A
Locking Mechanism	CPA	CPA
Material	Ultramid A3EG7 Nylon 6/6 GF35	Ultramid A3EG7 Nylon 6/6 GF35
Mating Part Numbe	54241600	54241600
Mounting Method	Wire	Wire
Number of Rows	2	2
Operating Temperature Range	- 40 C to + 125 C	- 40 C to + 125 C
Pitch	3.5 mm	3.5 mm
Second Mating Part Numbe	54241604	54241604
Three D Model	h	h
Type	Connec	Connec
