51720-10101201AB

Description
Board Connector, 14 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size248KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

51720-10101201AB Overview

Board Connector, 14 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

51720-10101201AB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
body width0.574 inch
subject depth0.93 inch
body length1.45 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS12P2
Contact to complete cooperationGOLD (30) OVER NICKEL (50)
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance2 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance10000000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number51720
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts14
UL Flammability Code94V-0
Evacuation force-minimum value.17792 N
Base Number Matches1

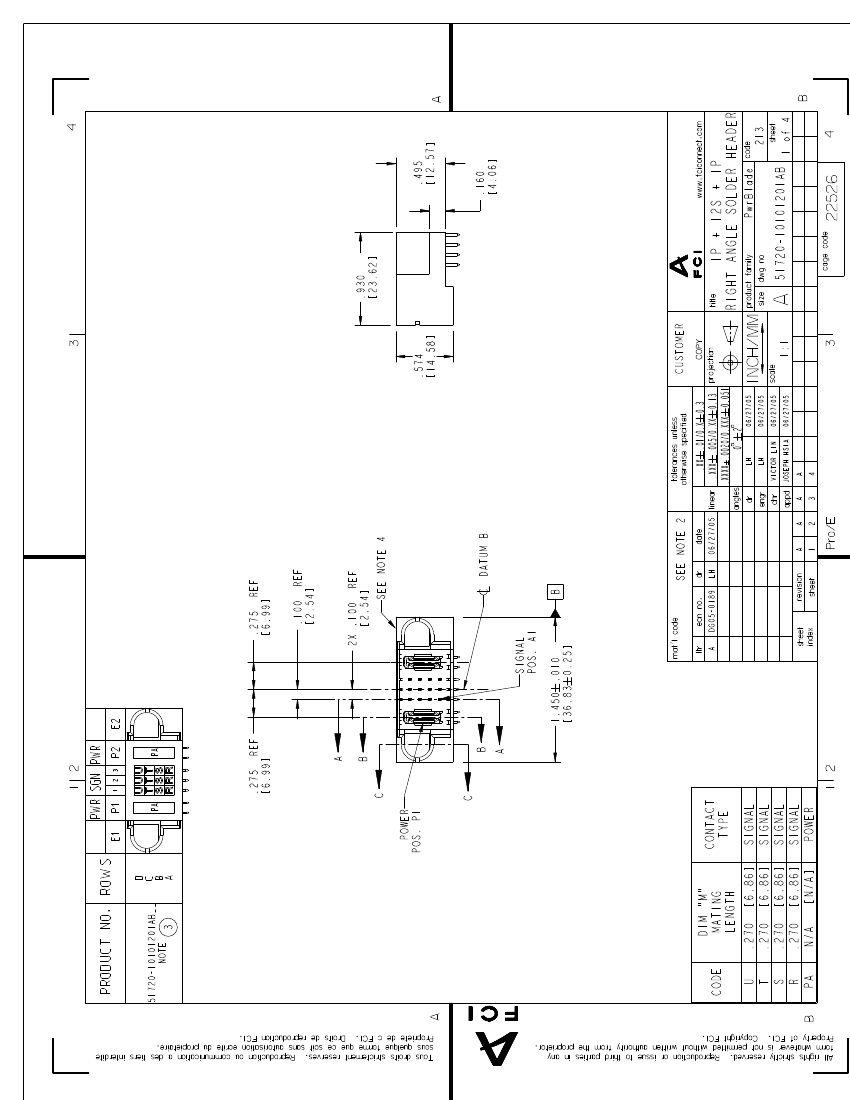

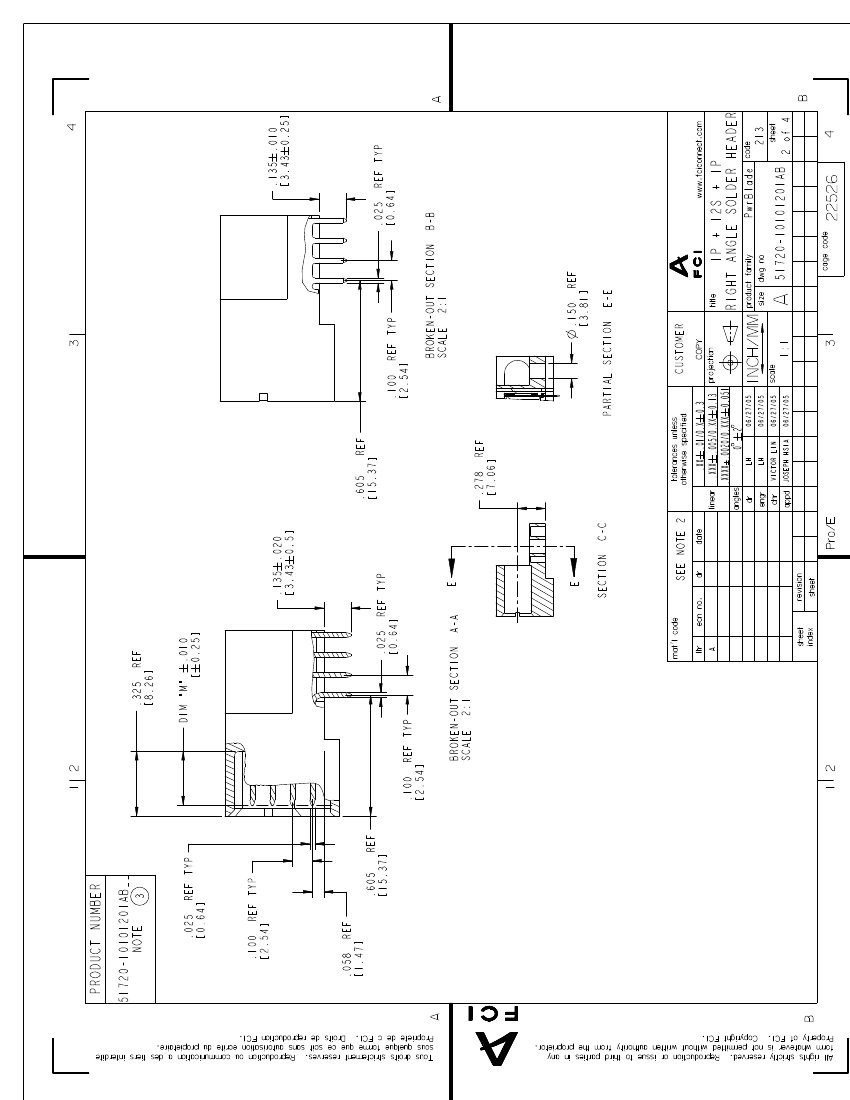

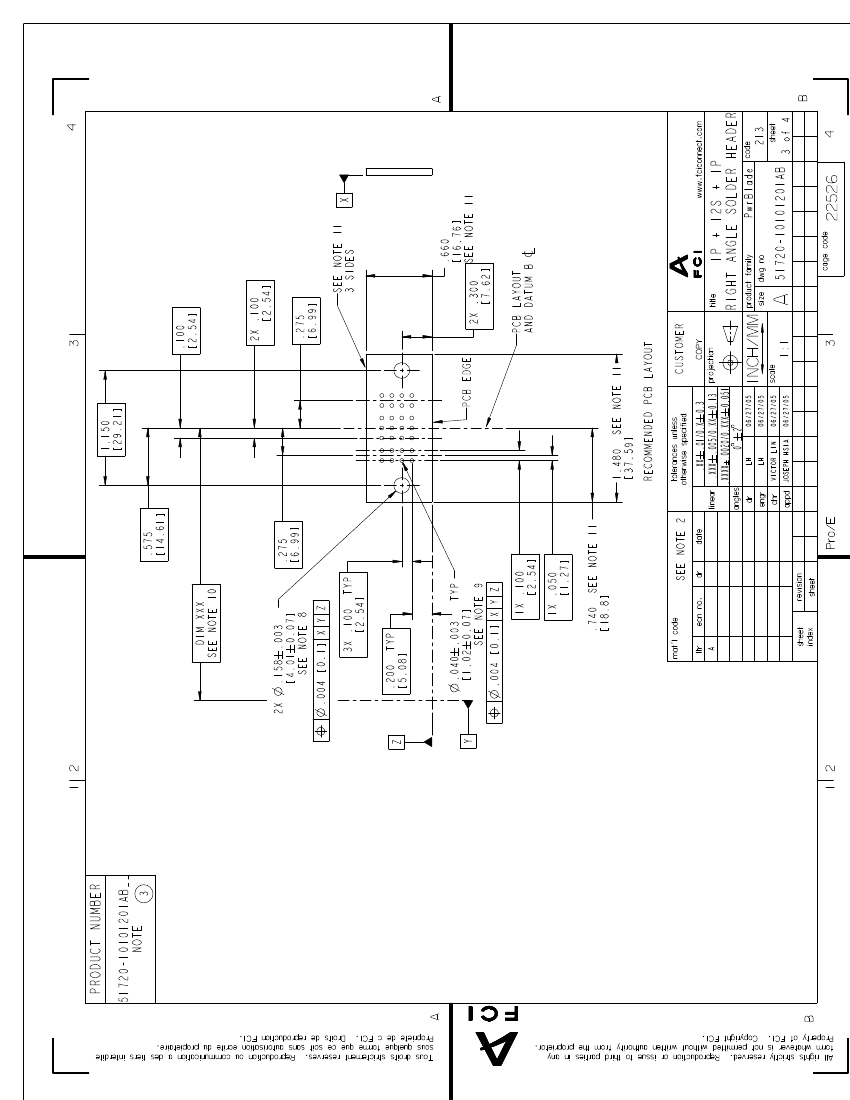

PDM: Rev:A
STATUS:
Released
Printed: Dec 20, 2010
.
