335-10-102-00-160000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 335-10-102-00-160000

335-10-102-00-160000: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, PFOA, PFOS, ROHS AND REACH COMPLIANT; CategoryThe connector The connector; File Size444KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

335-10-102-00-160000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	335-10-102-00-160000	-	-	View	Buy Now

335-10-102-00-160000 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, PFOA, PFOS, ROHS AND REACH COMPLIANT

335-10-102-00-160000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

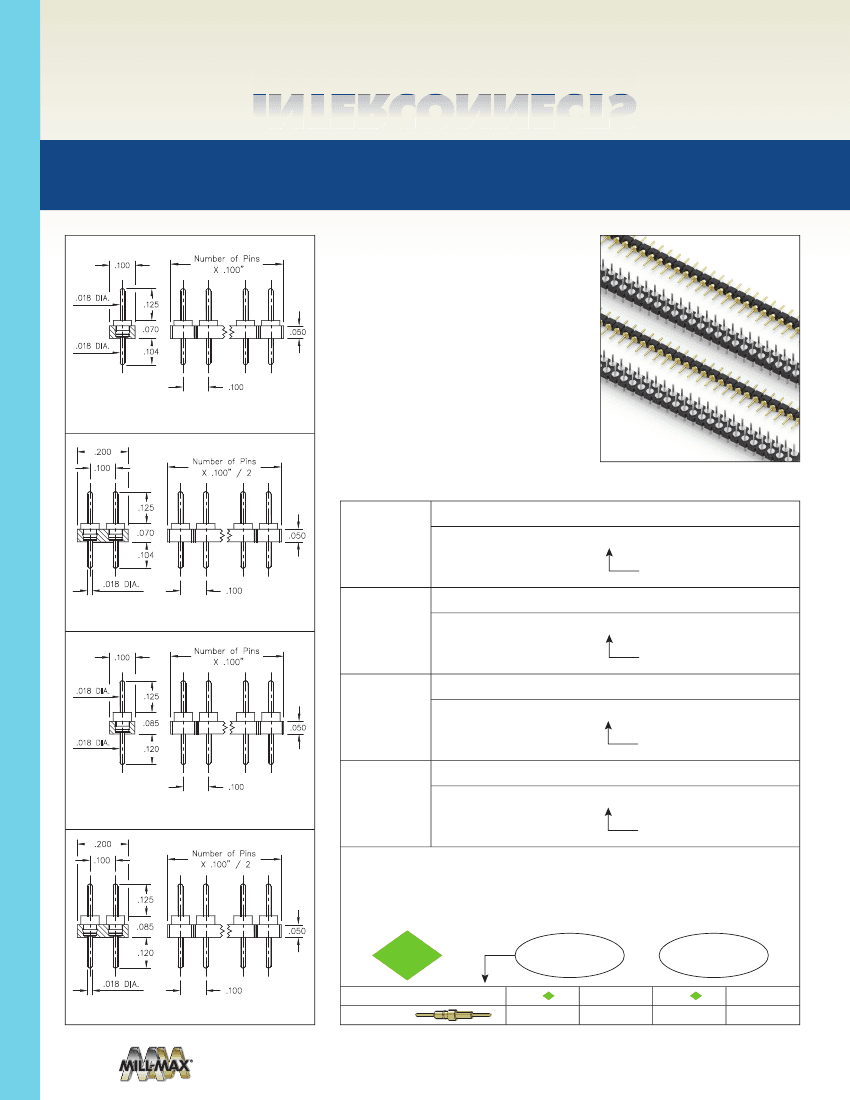

Preview

Download Datasheet

View All

INTERCONNECTS

SERIES 335, 364, 435, 464 • .100” GRID (.018” DIA. PINS),

LOW PROFILE • SINGLE AND DOUBLE ROW STRIPS

•

Series 335 and 435 single and double row PCB

.100

Number of Pins

X .100"

interconnects o er a .070” pro le, the lowest

available

.018 DIA.

.125

.070

•

Series 364 and 464 single and double row PCB

.050

interconnects o er .085” pro le above board

.018 DIA.

.104

•

Series 335 and 435 use MM #3516 pins. See

page 212 for details

.100

•

Series 364 and 464 use MM #6458 pins. See

page 213 for details

FIG. 1

.200

.100

Number of Pins

X .100" / 2

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

Series 335...160

.050

.125

.070

.104

.018 DIA.

Single Row .070” Pro le Pin Header

335 XX 1_ _ 00 160000

FIG. 1

Series 435...160

Specify number of pins

.100

01-32

FIG. 2

.100

Double Row .070” Pro le Pin Header

435 XX 2_ _ 00 160000

FIG. 2

Series 364...580

.050

Number of Pins

X .100"

Specify number of pins

04-72

.018 DIA.

.125

.085

Single Row .085” Pro le Pin Header

364 10 1_ _ 00 580000

FIG. 3

Series 464...580

.018 DIA.

.120

Specify number of pins

01-32

Double Row .085” Pro le Pin Header

464 10 2_ _ 00 580000

.100

FIG. 3

.200

FIG. 4

Specify number of pins

04-72

PAGE 78 | INTERCONNECTS

.100

Number of Pins

X .100" / 2

.125

.085

.120

.050

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.018 DIA.

.100

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
