ZWS150PAF-24/TL datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> ZWS150PAF-24/TL

ZWS150PAF-24/TL: DescriptionAC-DC Regulated Power Supply Module, 151.2W,; CategoryPower/power management The power supply circuit; File Size240KB，2 Pages; ManufacturerTDK-LAMBDA

Download Datasheet Parametric View All

ZWS150PAF-24/TL Overview

AC-DC Regulated Power Supply Module, 151.2W,

ZWS150PAF-24/TL Parametric

Parameter Name	Attribute value
Maker	TDK-LAMBDA
package instruction	,
Reach Compliance Code	compliant
Is Samacsys	N
Other features	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Certification	CE, UL
Efficiency (main output)	82%
high	51 mm
Maximum input voltage	265 V
Minimum input voltage	85 V
length	230 mm
Maximum grid adjustment rate	0.4%
Maximum load regulation	0.8%
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Maximum output current	6.3 A
Nominal output voltage	24 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Maximum total power output	151.2 W
width	90 mm
Base Number Matches	1

Preview

Download Datasheet

View All

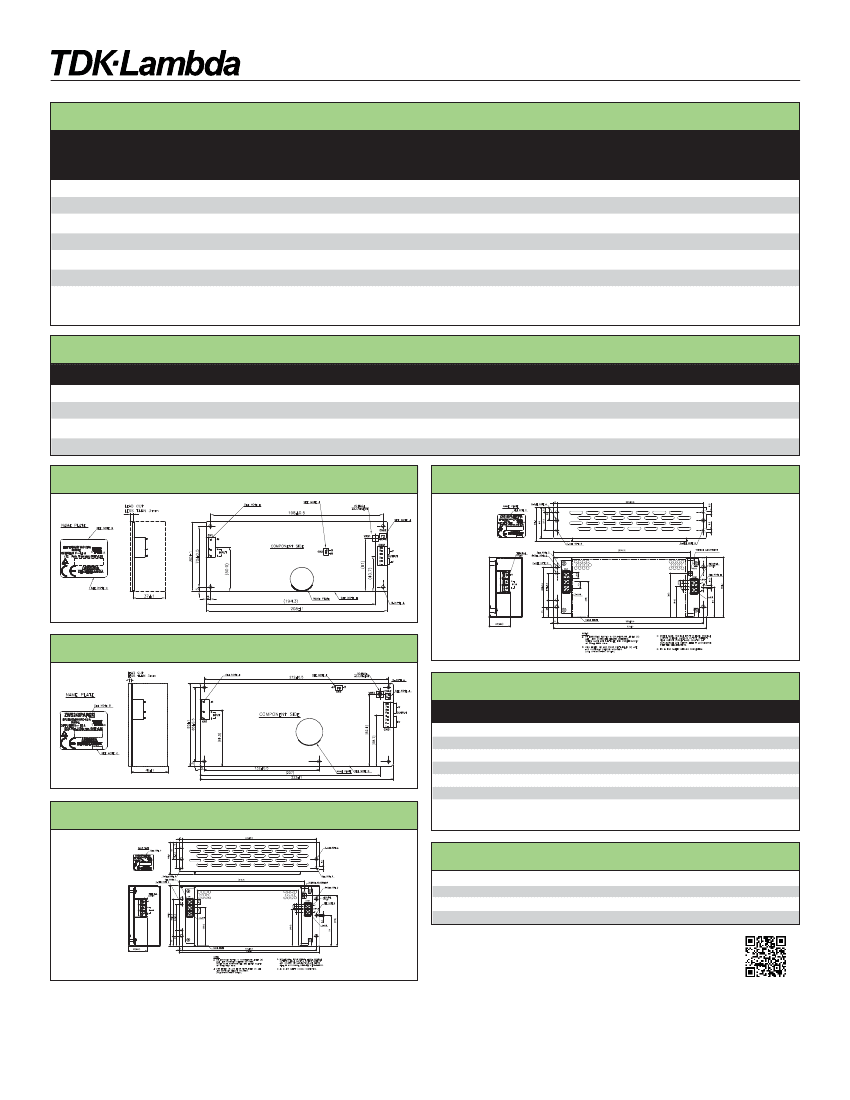

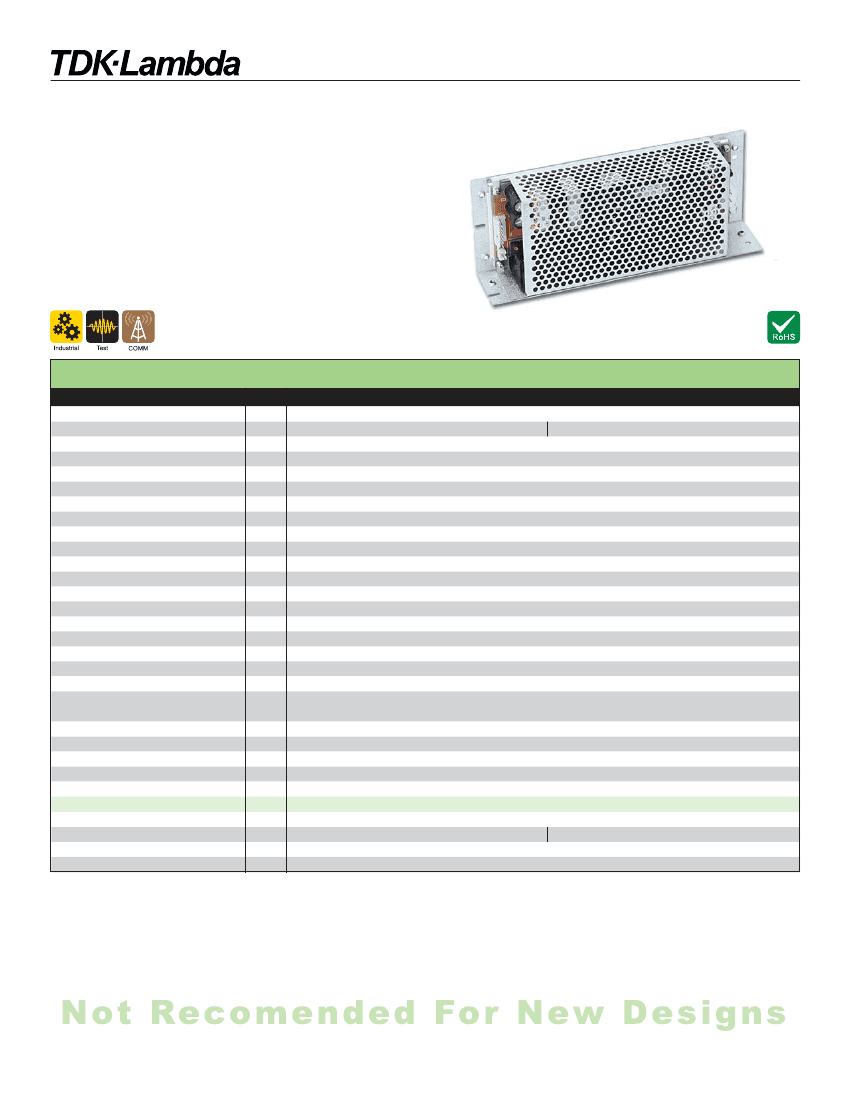

ZWS-PAF Series

150W to 480W Single Output Power Supplies

Features



Universal Input (85 - 265VAC)



Power factor Corrected



200% Peak Power capability



2 year warranty



Less than 0.5mA earth leakage current



Input Transient Protected

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage

Input Current (Forced air (1)

Inrush Current

(1,2)

Power Factor

Leakage Current

Temperature Coefﬁcient

Overcurrent Protection

(3)

Overvoltage Protection

Hold Up Time (Typ) at 100VAC

Efﬁciency

Remote On/Off

Line Regulation

Load Regulation

Ripple & Noise

Operating Temperature

(4)

Operating Temperature

(4)

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Approvals

Conducted & Radiated EMI

Recommended EMI Filter

Immunity

Weight (Typ)

Size (WxHxD)

Warranty

°C

yrs

ZWS150PAF

ZWS240PAF

85-265VAC (47-63Hz), 120-370VDC

2.8/1.4

4.0/2.0

14 / 28

0.99 at 100VAC, 0.95 at 200VAC, Meets EN61000-3-2

0.5mA Max. Typically 0.1mA (100VAC), 0.22mA (230VAC)

<0.02%/°C

>102% of peak current capability

24V: 30-35V, 36V: 43.2-50.4, 48V: 55.2-64.8V

20 (16ms at forced air power ratings)

See installation manual (Not available with /A cover option)

0.4%

0.8%

(Open frame or L bracket) -10°C to +70°C, derate linearly to 70% load from 60°C to 70°C

(With /A cover option) -10°C to +60°C, derate linearly to 70% load from 50°C to 60°C

-30 to +85°C

Operating: 30 - 90% RH, Operating: 10 - 95% RH

Convection or Forced Air Cooled (1.5m/s)

Input to Ground 2kVAC (20mA), Input to Output 3kVAC (20mA),

Output to Ground 500VAC (100mA) for 1 min.

>100M at 25°C & 70% RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178, CE Mark

EN55022/EN55022-B, FCC Class B, VCCI-B

RSEL-2006W

EN61000-4-2, -3, -4, -5, -6, -8, -11

500g (800g with cover)

750g (1100g with cover)

See Outline Drawings

Two Years

Notes:

(1) 100/200VAC

(2) 25°C ambient (cold start)

(3) Avoid prolonged operartion in overload

(4) With 0.7m/s airﬂow. See derating table for convection cooling

1-800-526-2324 • www.us.tdk-lambda.com/lp/

176

Disclaimer: us.tdk-lambda.com/lp/legal.htm
