General Purpose Relays
SCHRACK
Power PCB Relay RP II/1
I
I
I
I
I
1 pole 8 / 12 / 16 A, 1 C/O or 1 N/O contact
4 kV / 8 mm coil-contact
Pinning 3.5 or 5 mm (8 / 12 A) and 5 mm (16 A)
PCB-sockets
RoHS compliant (Directive 2002 / 95 / EC)
as per product date code 0404
Applications
Power supplies, domestic appliances, heating control,
installation
F0146-B
Approvals
V
,
Z
approved types on request
Technical data of
Contact data
Configuration
Type of contact
Rated current
Rated voltage / max.breaking voltage AC
Maximum breaking capacity AC
Make current
Contact material
1 C/O contact or 1 N/O contact
single contact
8A
12 A
16 A
250 Vac / 440 Vac
2000 VA
3000 VA
4000 VA
16 A
20 A
25 A
AgNi 0.15
AgCdO
AgCdO
Contact ratings
Type
Load
RP410
12 A, 250 Vac, cosϕ=1, 1200/h, 40% duty cycle
RP410
9.1 A, 220 Vac, cosϕ=1, 360/h, 15% duty cycle
RP418
3.4 A ON, 0.42 A OFF 220 Vac, cosϕ=0.6
,
RP411
8 A, 250 Vac, cosϕ=1, 50% duty cycle
RP412
8 A, 250 Vac, cosϕ=1, 50% duty cycle
RP330
18.2 A, 250 Vac, cosϕ=1, 600/h, 15% duty cycle
RP330
96 A ON, 16 A OFF 250 Vac, cosϕ=0.6, 450/h
,
Operations
1.1x10
5
2x10
5
>1.1x10
6
10
5
10
5
1.1x10
5
> 3x10
4
Standard
AC 1
AC 1
AC 1
AC 1
AC 1
VDE 0630
Coil data
Nominal voltage
Nominal coil power
Operate category
5...110 Vdc
500 mW
2/b
Coil versions, DC-coil
Coil
Nominal
Pull-in
Release
Maximum
Coil
code
voltage
voltage
voltage
voltage
resistance
Vdc
Vdc
Vdc
Vdc
c
005
5
3.5
0.5
9.0
54+10%
006
6
4.2
0.6
10.8
68+10%
012
12
8.4
1.2
21.6
270+10%
024
24
16.8
2.4
43.2
1100+15%
048
48
33.6
4.8
86.4
4400+15%
060
60
42.0
6.0
108.0
6540+15%
110
110
77
.0
11.0
198.0
23100+15%
All figures are given for coil without preenergization, at ambient temperature +20°C
Other coil voltages on request
Coil
current
mA
92.6
88.2
44.4
21.8
10.9
9.2
4.8
1
Datasheet
Rev. GK1
Issued 2007/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
SCHRACK
Power PCB Relay RP II/1
(Continued)
Dimensions
Insulation
Dielectric strength
coil-contacts
open contact circuit
Clearance / creepage
Insulation to IEC 61810-1
Voltage rating
Pollution degree
Overvoltage category
Insulation to VDE 0110b (2/79)
Insulation category / reference voltage
4000 V
rms
1000 V
rms
8 / 8 mm
250 V
3
III
C / 250
Dimensions in mm
Other data
RoHS - Directive 2002 / 95 / EC
Ambient temperature
Mechanical life
Max. switching rate at rated- / minimum load
Operate- / release time
Bounce time N/O contact/N/C contact
Vibration resistance N/O contact/N/C contact
Shock resistance (destruction)
Category of protection (IEC 61810)
Relay weight
Packaging unit
Accessories
compliant as per product date code 0404
-40...+70 °C
30x10
6
operations
10 min
-1
/ 1200 min
-1
typ. 8 / 2 ms
typ. 2 / 4 ms
>10 / 2 g, 30...300 Hz
100 g
RT II - flux proof, RT III - wash tight
18 g
20 / 500 pcs.
see accessories RT and RP
S0273-AA
PCB layout / terminal assignment
8 / 12 A, pinning 3.5 mm
8 / 12 A, pinning 5 mm
Bottom view on solder pins
Dimensions in mm
16 A, pinning 5 mm
S0163-CQ
S0163-CP
S0163-CO
1 C/O
1 C/O
1 C/O
S0163-BG
S0163-BC
S0163-BE
1 N/O
1 N/O
1 N/O
S0163-BH
S0163-BD
S0163-BF
2
Datasheet
Rev. GK1
Issued 2007/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.

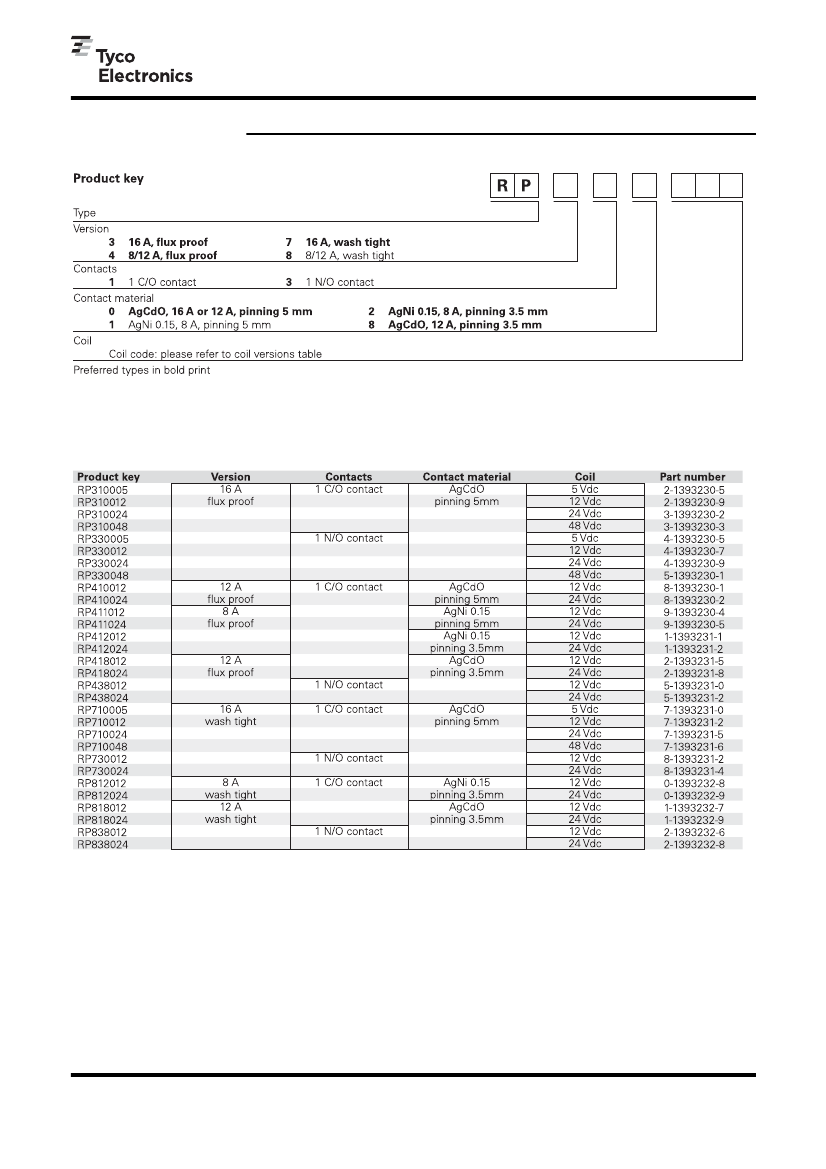

General Purpose Relays
SCHRACK
Power PCB Relay RP II/1
(Continued)
3
Datasheet
Rev. GK1
Issued 2007/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
