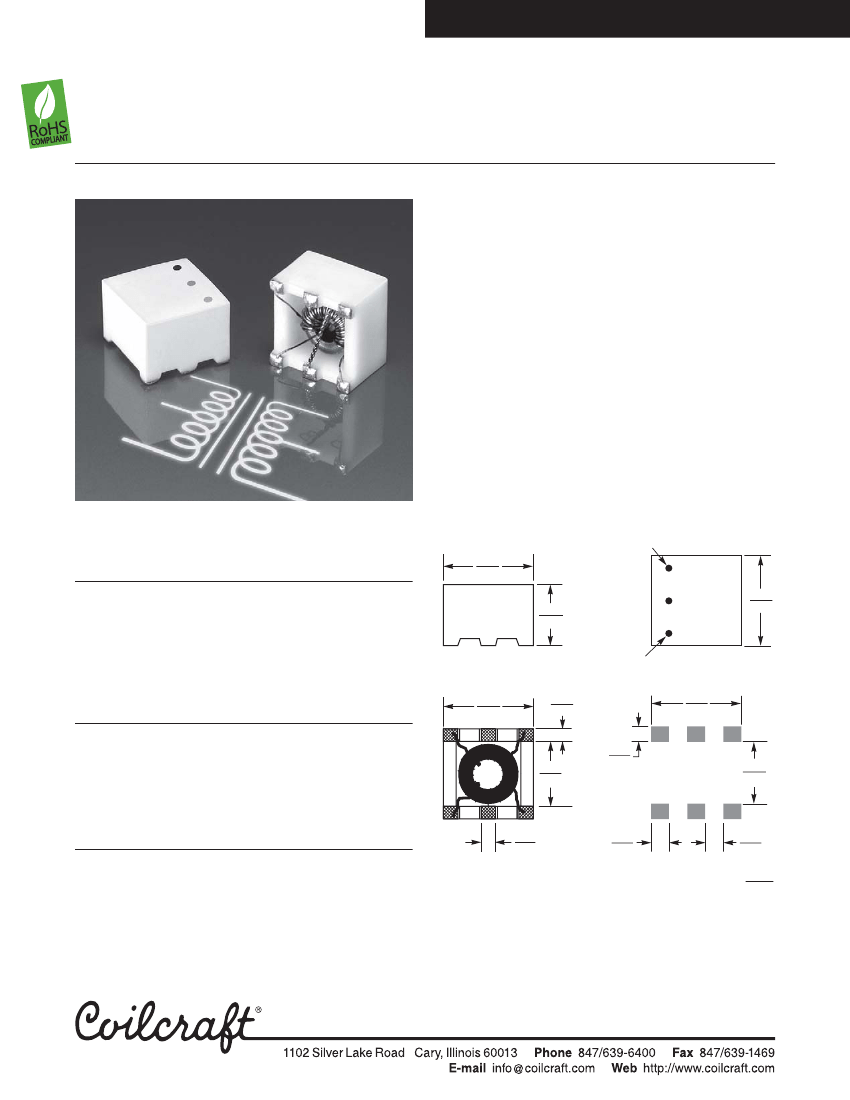

Document 194-1
Surface Mount Wideband RF Transformers
• Tapped and untapped versions
• 400 V interwinding isolation, 1/4 Watt RF input power
• 250 mA max current rating.
Designer’s Kit C329
contains three of each part
Core material
Ferrite
Terminations
RoHS compliant tin-silver-copper over silver-
platinum-glass frit. Other terminations available at additional cost.
Weight
0.37 – 0.43 g
Ambient temperature
–40°C to +85°C
Storage temperature
Component: –40°C to +85°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Mean Time Between Failures (MTBF)
16,666,667 hours
Packaging
1000 per 13″ reel; Plastic tape: 16 mm wide, 0.34 mm
thick, 12 mm pocket spacing, 4.83 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Typical Frequency Response
Part
number
TTWB-1-AL_
TTWB-1.5-AL_
TTWB-2-AL_
TTWB-4-AL_
TTWB-16-AL_
TTWB1010L_
TTWB1010-1L_
TTWB1015L_
TTWB1040L_
TTWB-1-BL_
TTWB-1.5-BL_
TTWB-2-BL_
TTWB-4-BL_
TTWB-16-BL_
TTWB2010L_
TTWB2010-1L_
TTWB2040L_
TTWB-1-CL_
TTWB-1.5-CL_
TTWB-2-CL_
TTWB-4-CL_
TTWB3010L_
TTWB3010-1L_
TTWB3015L_
TTWB3040L_
3 dB
(MHz)
0.08 - 450
0.03 - 300
0.05 - 200
0.15 - 500
0.05 - 80
0.0035 - 125
0.03 - 250
0.07 - 225
0.15 - 400
0.13 - 425
0.50 - 250
0.20 - 400
0.14 - 700
0.075 - 90
0.0035 - 125
0.03 - 250
0.15 - 400
0.10 - 300
0.15 - 200
0.13 - 285
0.14 - 500
0.0035 - 125
0.03 - 250
0.07 - 225
0.15 - 400
2 dB
(MHz)
0.13 - 325
0.035 - 250
0.06 - 160
0.24 - 300
0.06 - 75
0.0045 - 100
0.04 - 225
0.10 - 200
0.25 - 350
0.18 - 325
0.80 - 175
0.225 - 275
0.20 - 400
0.11 - 75
0.0045 - 100
0.04 - 225
0.25 - 350
0.13 - 200
0.225 - 150
0.20 - 175
0.20 - 230
0.0045 - 100
0.04 - 225
0.10 - 200
0.25 - 350
1 dB
(MHz)
0.30 - 190
0.06 - 150
0.10 - 100
0.60 - 140
0.11 - 30
0.007 - 80
0.06 - 200
0.20 - 125
0.80 - 250
0.32 - 190
1.50 - 120
0.50 - 150
0.40 - 150
0.20 - 65
0.007 - 80
0.06 - 200
0.80 - 250
0.20 -150
0.35 - 100
0.325 - 125
0.40 - 110
0.007 - 80
0.06 - 200
0.20 - 125
0.80 - 250
Dimensions
0.240
6,10
0.185
+0.005 /
–
0.010
4,70
+0,127 /
–
0,254
3rd color dot
over pin 6
0.255
6,48
1st color dot
over pin 1
0.240
6,10
1
2
3
0.035
0,89
6
0.250
6,35
5
4
0.180
4,57
0.045
1,14
Recommended
0.170
Land Pattern
4,32
6
5
4
1
2
3
0.040
1,02
Unless otherwise noted, tolerance
for all dimensions ±0.005/0,127.
0.050
1,27
0.050
1,27
Dimensions are in
inches
mm
Specifications subject to change without notice.
Please check our website for latest information.
Document 194-1
Revised 10/21/08
© Coilcraft, Inc. 2008
Document 194-2
Surface Mount Wideband RF Transformers
Impedance
Bandwidth
ratio
2
Type
Part number
1
pri:sec
(MHz)
TTWB-1-AL_
1:1
0.08 - 450
TTWB-1.5-AL_
1:1.5
0.03 - 300
1:2
0.05 - 200
1
6
TTWB-2-AL_
TTWB-4-AL_
1:4
0.15 - 500
TTWB-16-AL_
1:16
0.05 - 80
3
4
TTWB1010L_
1:1
0.0035 - 125
Type A
TTWB1010-1L_ 1:1
0.03 - 250
TTWB1015L_
1:1.5
0.07 - 225
TTWB1040L_
1:4
0.15 - 400
TTWB-1-BL_
6
TTWB-1.5-BL_
1
5
TTWB-2-BL_
TTWB-4-BL_
3
4
TTWB-16-BL_
Type B
TTWB2010L_
TTWB2010-1L_
TTWB2040L_
TTWB-1-CL_
6
TTWB-1.5-CL_
1
TTWB-2-CL_
5
2
TTWB-4-CL_
3
4
TTWB3010L_
Type C
TTWB3010-1L_
TTWB3015L_
TTWB3040L_
1:1
1:1.5
1:2
1:4
1:16
1:1
1:1
1:4
1:1
1:1.5
1:2
1:4
1:1
1:1
1:1.5
1:4
0.13 - 425
0.50 - 250
0.20 - 400
0.14 - 700
0.075 - 90
0.0035 - 125
0.03 - 250
0.15 - 400
0.10 - 300
0.15 - 200
0.13 - 285
0.14 - 500
0.0035 - 125
0.03 - 250
0.07 - 225
0.15 - 400
Idc
(mA)
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Insertion
Pins 1-3
Pins 6-4
loss max L min
3
DCR max L min
3
DCR max
(dB)
(µH)
(Ohms)
(µH)
(Ohms)
0.60
40
0.070
40
0.070
0.35
110
0.080
160
0.110
0.25
75
0.088
150
0.120
0.50
25
0.075
98
0.135
0.35
75
0.260
1250
0.910
0.20
780
0.320
780
0.320
0.20
95
0.200
95
0.200
0.40
51
0.130
80
0.145
0.40
25
0.115
95
0.160
0.40
0.40
0.35
0.50
0.30
0.20
0.20
0.40
0.60
0.30
0.30
0.50
0.20
0.20
0.40
0.40
22
140
75
25
75
780
95
25
22
140
75
25
780
95
51
25
0.070
0.100
0.088
0.075
0.260
0.320
0.200
0.115
0.070
0.110
0.105
0.075
0.320
0.200
0.130
0.115
22
200
150
98
1250
780
95
95
22
200
150
98
780
95
80
95
0.070
0.120
0.130
0.135
0.910
0.320
0.200
0.160
0.070
0.120
0.130
0.135
0.320
0.200
0.145
0.160
Color code
Black Black Green
Black Brown Green
Black Red Green
Black Yellow Green
Black Orange Green
Black Black Black
Black Black Violet
Black Black Brown
Black Black Yellow
Brown Black Green
Brown Brown Green
Brown Red Green
Brown Yellow Green
Brown Orange Green
Brown Black Black
Brown Black Violet
Brown Black Yellow
Red Black Green
Red Brown Green
Red Red Green
Red Yellow Green
Red Black Black
Red Black Violet
Red Black Brown
Red Black Yellow
1. When ordering, please specify
termination
and
packaging
codes:
TTWB-1-ALD
Termination: L
= RoHS compliant tin-silver-copper over silver-platinum-glass frit.
Special order:
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine ready reel. EIA-481 embossed plastic tape, 1000 parts per full reel.
B
= Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter D instead.
2. Impedance ratio is for the full primary winding to the full secondary winding.
3. Inductance tested at 130 kHz, 0.1 Vrms, 0 Adc.
4. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 194-2
Revised 10/21/08
© Coilcraft, Inc. 2008
Document 194-3

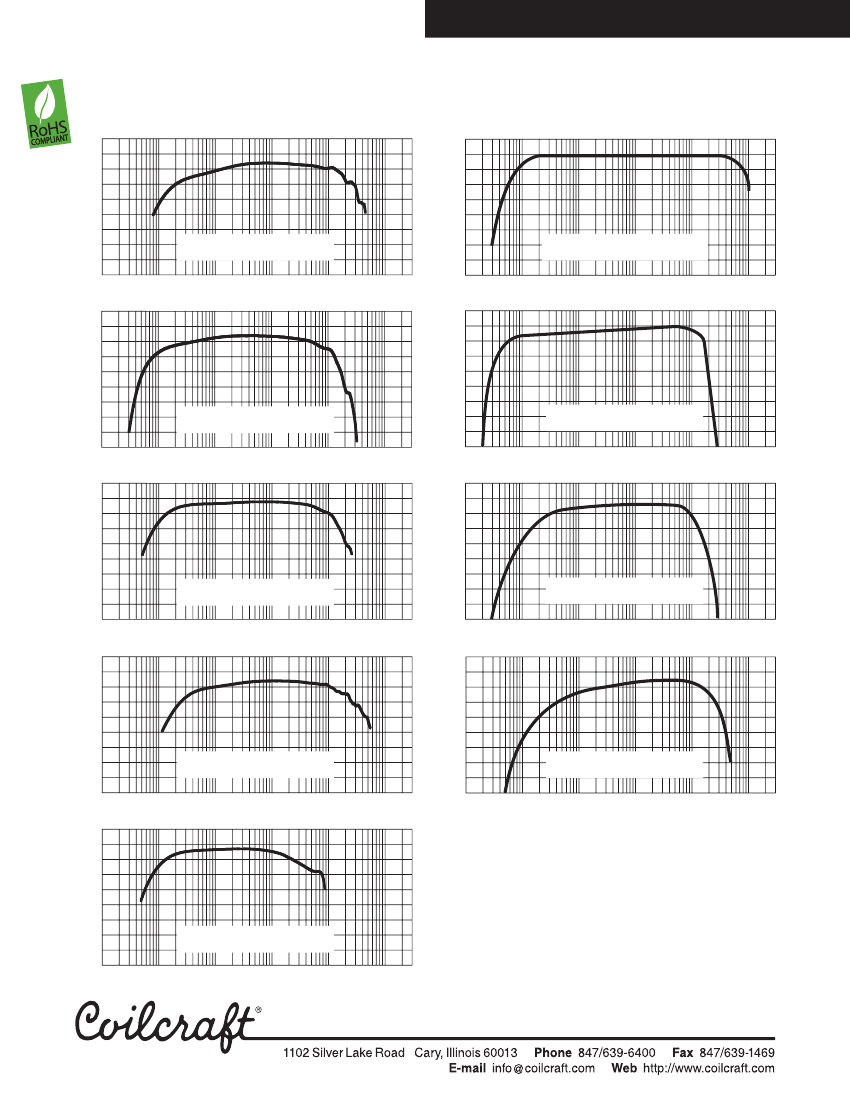

Type A Transformers
-1
0
-1
0
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-1-A
3 dB bandwidth 0.08 - 450 MHz
0.01
0.1
1
10
100
1000
TTWB1010
3 dB bandwidth 0.0035 - 125 MHz
0.001
0.01
0.1
1
10
100
Frequency (MHz)
-1
0
-1
0
Frequency (MHz)
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-1.5-A
3 dB bandwidth 0.03 - 300 MHz
0.01
0.1
1
10
100
1000
TTWB1010-1
3 dB bandwidth 0.03 - 250 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
-1
0
-1
0
Frequency (MHz)
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-2-A
3 dB bandwidth 0.05 - 200 MHz
0.01
0.1
1
10
100
1000
TTWB1015
3 dB bandwidth 0.07 - 225 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
-1
0
Frequency (MHz)
-1
0
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-4-A
3 dB bandwidth 0.15 - 500 MHz
0.01
0.1
1
10
100
1000
TTWB1040
3 dB bandwidth 0.15 - 400 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
-1
0
Frequency (MHz)
dBm Attenuation
1
2
3
4
5
6
7
8
TTWB-16-A
3 dB bandwidth 0.05 - 80 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
Specifications subject to change without notice.
Please check our website for latest information.
Document 194-3
Revised 10/21/08
© Coilcraft, Inc. 2008
Document 194-4

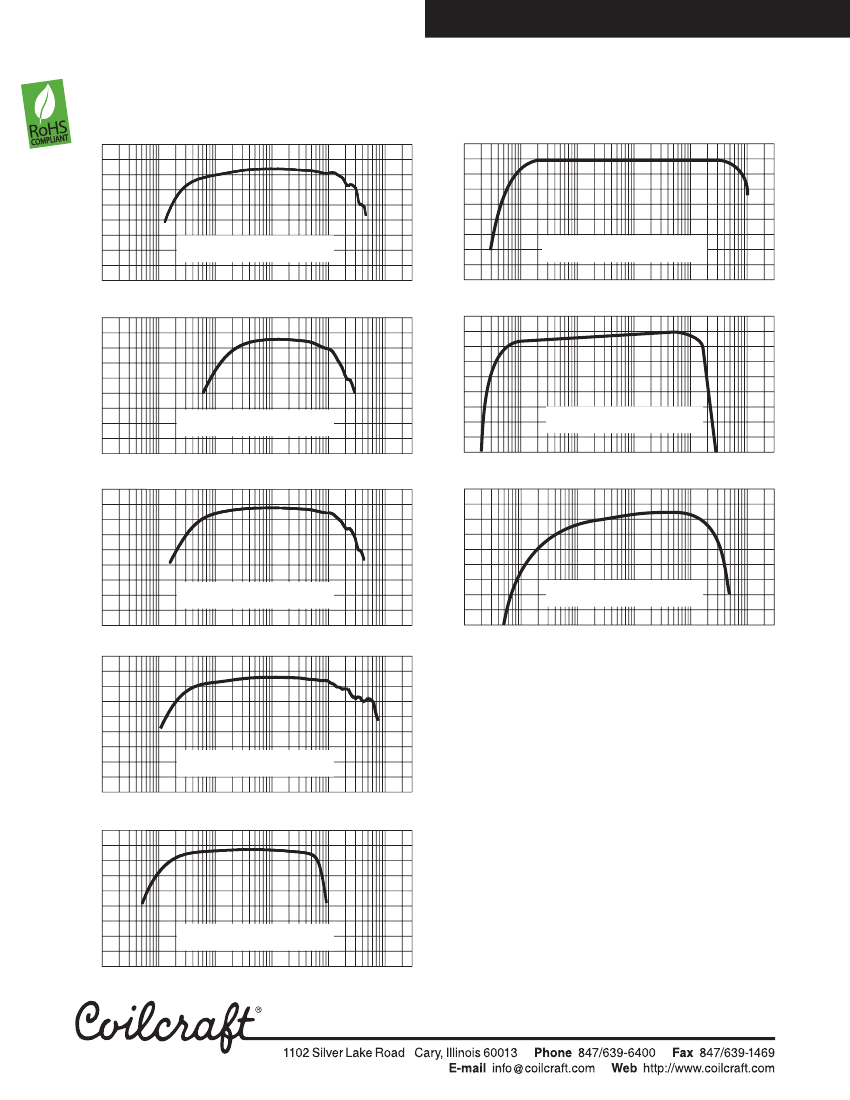

Type B Transformers
-1
0
-1
0
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-1-B
3 dB bandwidth 0.13 - 425 MHz
0.01
0.1
1
10
100
1000
TTWB2010
3 dB bandwidth 0.0035-125 MHz
0.001
0.01
0.1
1
10
100
Frequency (MHz)
-1
0
Frequency (MHz)
-1
0
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-1.5-B
3 dB bandwidth 0.50 - 250 MHz
0.01
0.1
1
10
100
1000
TTWB2010-1
3 dB bandwidth 0.03 - 250 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
-1
0
-1
0
Frequency (MHz)
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-2-B
3 dB bandwidth 0.20 - 400 MHz
0.01
0.1
1
10
100
1000
TTWB2040
3 dB bandwidth 0.15 - 400 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
-1
0
Frequency (MHz)
dBm Attenuation
1
2
3
4
5
6
7
8
TTWB-4-B
3 dB bandwidth 0.14 - 700 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
-1
0
dBm Attenuation
1
2
3
4
5
6
7
8
TTWB-16-B
3 dB bandwidth 0.075 - 90 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
Specifications subject to change without notice.
Please check our website for latest information.
Document 194-4
Revised 10/21/08
© Coilcraft, Inc. 2008
Document 194-5

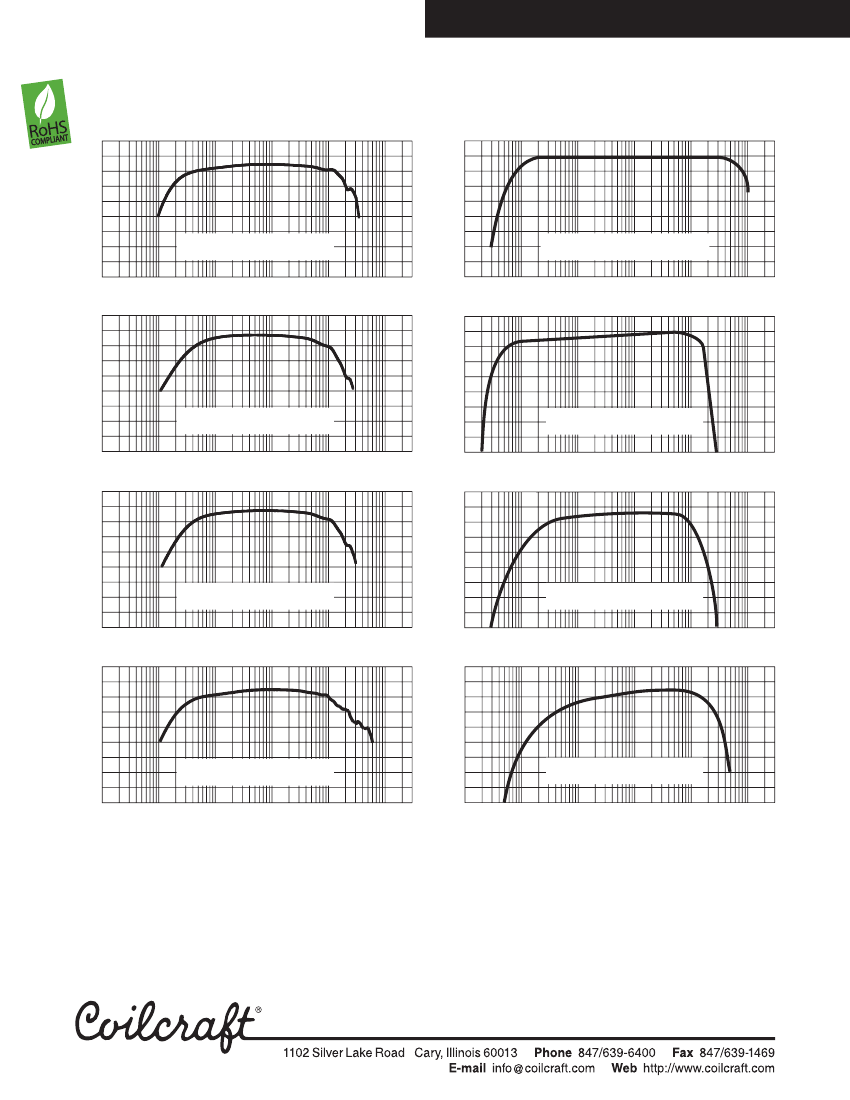

Type C Transformers
-1
0
-1
0
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-1-C
3 dB bandwidth 0.10 - 300 MHz
0.01
0.1
1
10
100
1000
TTWB3010
33 dB bandwidth .0035-125 MHz
dB bandwidth 0.0035 - 125 MHz
0.001
0.01
0.1
1
10
100
Frequency (MHz)
-1
0
-1
0
Frequency (MHz)
dBm Attenuation
1
2
3
4
5
6
7
8
dBm Attenuation
1
2
3
4
5
6
7
8
TTWB-1.5-C
3 dB bandwidth 0.15 - 200 MHz
0.01
0.1
1
10
100
1000
TTWB3010-1
3 dB bandwidth 0.03--250 MHz
3 dB bandwidth .03 250 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
-1
0
-1
0
Frequency (MHz)
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-2-C
3 dB bandwidth 0.13 - 285 MHz
0.01
0.1
1
10
100
1000
TTWB3015
3 dB bandwidth 0.07--225 MHz
3 dB bandwidth .07 225 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
-1
0
-1
0
Frequency (MHz)
dBm Attenuation
dBm Attenuation
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TTWB-4-C
3 dB bandwidth 0.14 - 50 MHz
0.01
0.1
1
10
100
1000
TTWB3040
3 dB bandwidth 0.15--400 MHz
3 dB bandwidth .15 400 MHz
0.01
0.1
1
10
100
1000
Frequency (MHz)
Frequency (MHz)
Specifications subject to change without notice.
Please check our website for latest information.
Document 194-5
Revised 10/21/08
© Coilcraft, Inc. 2008
京公网安备 11010802033920号
EEWORLD
