2x3mm RECTANGULAR SOLID LAMPS
L169XHx BRIGHT RED
L169XIx HIGH EFFICIENCY RED
L169XPGx PURE GREEN
L169XGx GREEN
L169XYx YELLOW
L169XAT YELLOW
Features
!
LOW
Description
The Bright Red source color devices are made with Gallium
Phosphide Red Light Emitting Diode.
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Pure Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
POWER CONSUMPTION.
BRIGHTNESS IS AVAILABLE .
AND RUGGED.
UNIFORMITY OF LIGHT OUTPUT.
FOR LEVEL INDICATOR.
!
ULTRA
!
RELIABLE
!
EXCELLENT
!
SUITABLE
!
LONG
LIFE - SOLID STATE RELIABILITY.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: CDA0733
APPROVED: J.LU
REV NO: V.1
CHECKED:
D
i
g
i
t
a
l
l
y
s
i
g
n
e
d
b
y
Y
A
N
G
S
H
O
U
F
E
N
c
n
=
Y
A
N
G
S
H
O
U
F
E
N
,
o
u
=
K
I
N
G
B
R
I
H
G
T
,
o
=
4
2
,
c
=
U
S
D
a
t
e
:
2
0
0
1
.
1
1
.
1
1
1
9
:
4
7
:
0
DATE: NOV/11/2001
DRAWN: S.H.CHEN
PAGE: 1 OF 5
Selection Guide
Par t No .
L169XHD
L169XHT
L169XID
L169XIT
L169XGD
L169XGT
L169XYD
L169XYT
L169XAT
L169XPGD
L169XPGTL
Dic e
BRIGHT RED (GaP)
BRIGHT RED (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
GREEN (GaP)
YELLOW (GaAsP/GaP)
YELLOW (GaAsP/GaP)
YELLOW (GaAsP/GaP)
PURE GREEN (GaP)
PURE GREEN (GaP)
L en s Ty p e
RED DIFFUSED
RED TRANSPARENT
RED DIFFUSED
RED TRANSPARENT
GREEN DIFFUSED
GREEN TRANSPARENT
YELLOW DIFFUSED
YELLOW TRANSPARENT
AMBER TRANSPARENT
GREEN DIFFUSED
GREEN TRANSPARENT
Iv (m c d )
@ 10 m A
Min .
1.2
2
8
12
5
5
5
5
5
2
3
Ty p .
3
5
15
30
15
20
10
15
15
5
8
V i ew i n g
An g l e
2θ1/2
10 0 °
30 °
100°
30 °
10 0 °
30 °
10 0 °
30 °
30 °
10 0 °
30 °
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Par am et er
D ev i c e
Bright Red
High Efficiency Red
Green
Yellow
Pure Green
Bright Red
High Efficiency Red
Green
Yellow
Pure Green
Ty p .
700
627
565
590
555
660
625
568
588
555
45
45
30
35
30
40
15
15
20
45
2.25
2.0
2.2
2.1
2.25
2.5
2.5
2.5
2.5
2.5
10
Max .
Un it s
Tes t Co n d it io n s
λ
peak
Peak Wavelength
nm
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
Bright Red
High Efficiency Red
Spectral Line Halfwidth Green
Yellow
Pure Green
Bright Red
High Efficiency Red
Green
Yellow
Pure Green
Bright Red
High Efficiency Red
Green
Yellow
Pure Green
All
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
V
F
Forward Voltage
V
IF=20mA
I
R
Reverse Current
uA
V R = 5V
SPEC NO: CDA0733
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/11/2001
DRAWN: S.H.CHEN
PAGE: 2 OF 5
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
B r i g h t R ed
120
25
120
5
Hig h
E f f i c i en c y
R ed
105
30
160
5
Gr een
105
25
14 0
5
Yello w
105
30
140
5
Pu r e
Gr een
105
25
135
5
Un it s
mW
mA
mA
V
-40
°
C To +85
°C
260
°
C For 5 Seconds
Bright Red L169XHD,L169XHT
SPEC NO: CDA0733
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/11/2001
DRAWN: S.H.CHEN
PAGE: 3 OF 5

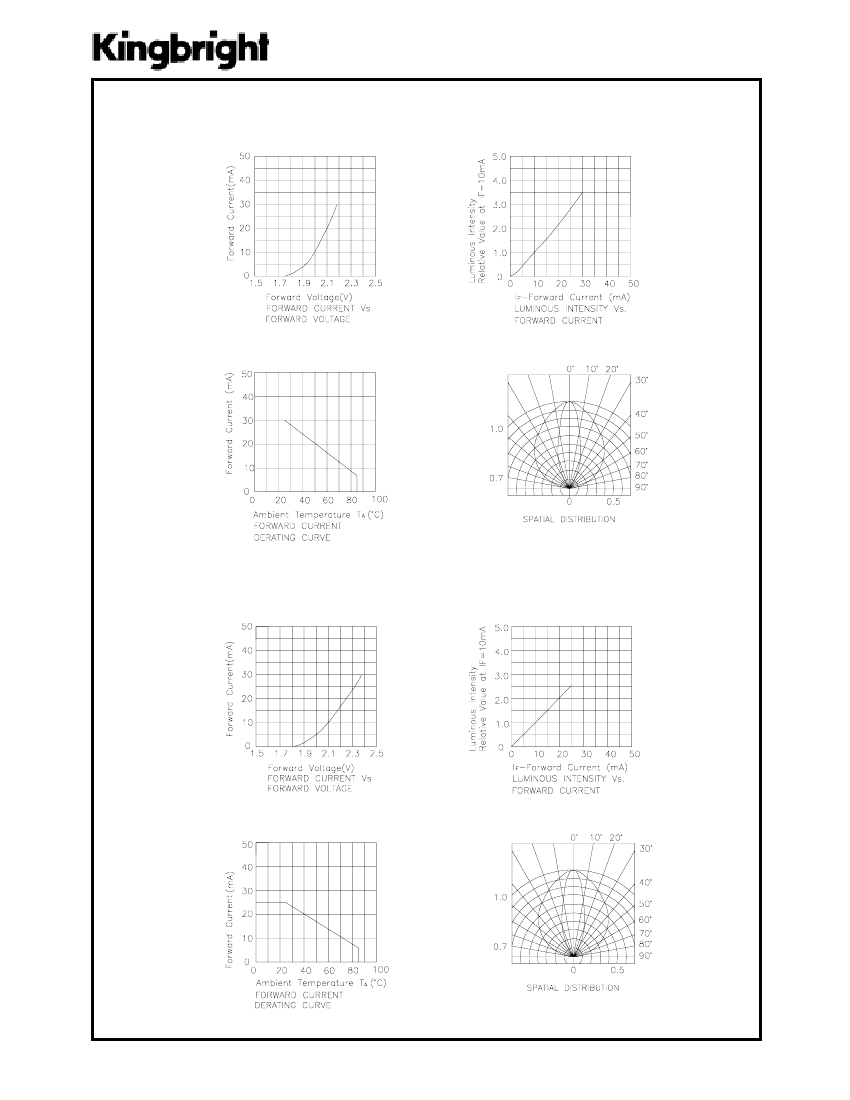

Yellow L169XYD,L169XYT,L169XAT
Pure Green L169XPGD,L169XPGTL
SPEC NO: CDA0733
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/11/2001
DRAWN: S.H.CHEN
PAGE: 5 OF 5
