HM1S51FRR000H4 datasheet, PDF - EEWORLD Datasheet

HM1S51FRR000H4: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Plug; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

HM1S51FRR000H4 Overview

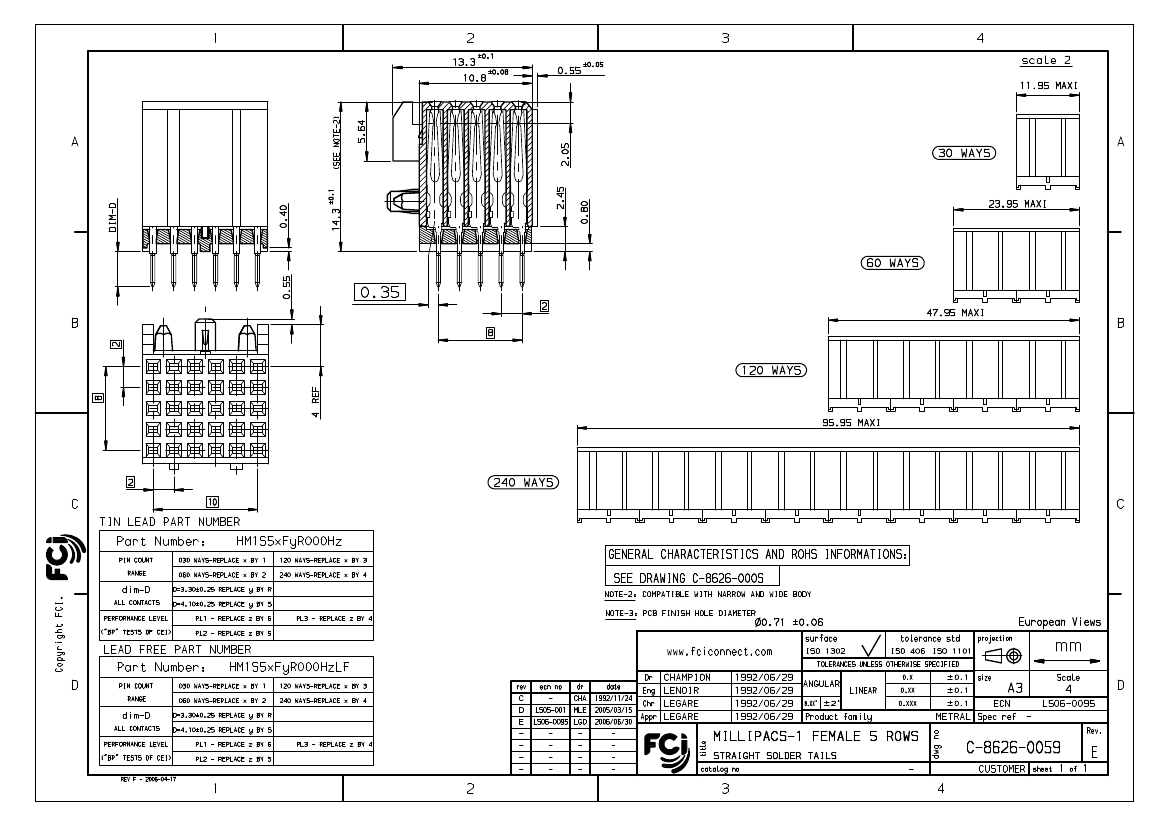

Board Connector, 30 Contact(s), 5 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Plug

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	HEAT STAKE RETENTION PEGS
Board mount options	PEG
body width	0.545 inch
subject depth	0.563 inch
body length	0.47 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	HM1
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	HOUSING SIDE
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	30
Base Number Matches	1

PDM: Rev:E

STATUS:

Released

Printed: Aug 26, 2006
