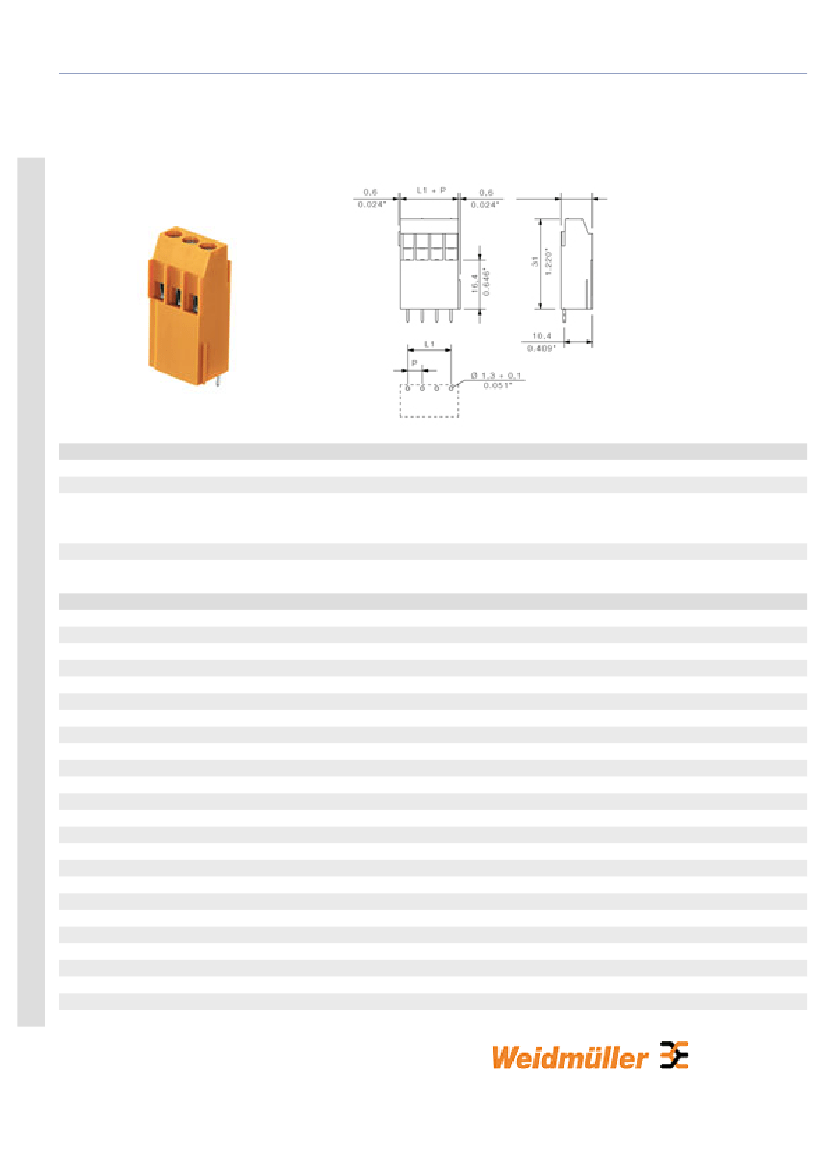

Product catalogue | PCB connection systems | PCB terminals | Clamping yoke connection | LL 5.00/5.08 multi-tier | LL1N
5.08/90
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Product family
Conductor connection system
Fitted to PCB
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
Fitted by customer
Max. adjacent poles per row
No. of rows
Solder pin length
Dia. of fitting hole
Fitting hole tolerance
No. of solder pins per pole
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
1975400000
LL1N 5.08/06/90 3.2 OR
PCB terminal, Clamping yoke connection,
Soldered connection, Clamping range, max.: 6
mm², Pitch: 5.08 mm, No. of poles: 6, 90°, Box
4032248672622
50 pc(s).
System LL
Clamping yoke connection
Soldered connection
90°
5.08 mm
0.2 inch
6
yes
12
1
3.2 mm
1.3 mm
+ 0.1 mm
1
0.6 x 3.5
DIN 5264
0.5 Nm
0.6 Nm
M3
6 mm
25.4 mm
1 inch
IP 20
Safe from finger touch
-1-
Product catalogue | PCB connection systems | PCB terminals | Clamping yoke connection | LL 5.00/5.08 multi-tier | LL1N
5.08/90
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Storage temperature, min.
Storage temperature, max.
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
Approvals
Approvals institutes
Wemid (PA)
orange
Similar to RAL 2000
I
V-0
>= 600
Copper alloy
tinned
-25 °C
55 °C
0.08 mm²
6 mm²
26
12
0.5 mm²
6 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
2.8 mm x 2.4 mm; 3.0 mm
4 kV
4 kV
4 kV
3 x 1s with 120 A
Classifications
eClass 5.1
27-26-11-01
-2-
Product catalogue | PCB connection systems | PCB terminals | Clamping yoke connection | LL 5.00/5.08 multi-tier | LL1N
5.08/90
Similar products
Order No.
1975360000
1975370000
1975380000
1975390000
1975410000
1975420000
1975430000
1975440000
1975460000
1975470000
Part designation
LL1N 5.08/02/90 3.2 OR
LL1N 5.08/03/90 3.2 OR
LL1N 5.08/04/90 3.2 OR
LL1N 5.08/05/90 3.2 OR
LL1N 5.08/07/90 3.2 OR
LL1N 5.08/08/90 3.2 OR
LL1N 5.08/09/90 3.2 OR
LL1N 5.08/10/90 3.2 OR
LL1N 5.08/11/90 3.2 OR
LL1N 5.08/12/90 3.2 OR
Version
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 2, 90°,
Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 3, 90°,
Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 4, 90°,
Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 5, 90°,
Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 7, 90°,
Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 8, 90°,
Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 9, 90°,
Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 10, 90°,
Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 11, 90°,
Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 6 mm², Pitch: 5.08 mm, No. of poles: 12, 90°,
Box
-3-
