Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Crimp Terminal, M2, Black Insulator, Receptacle,

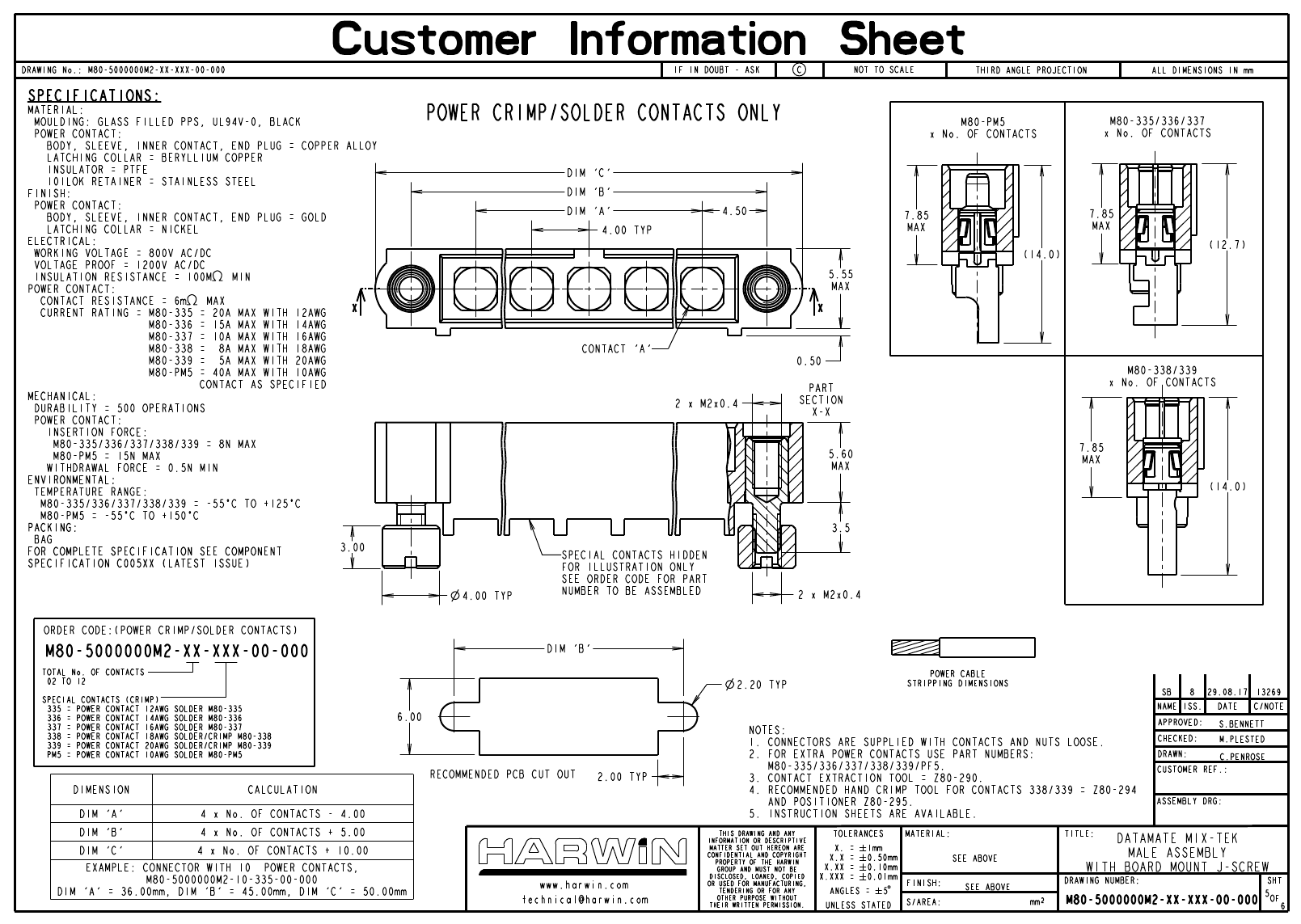

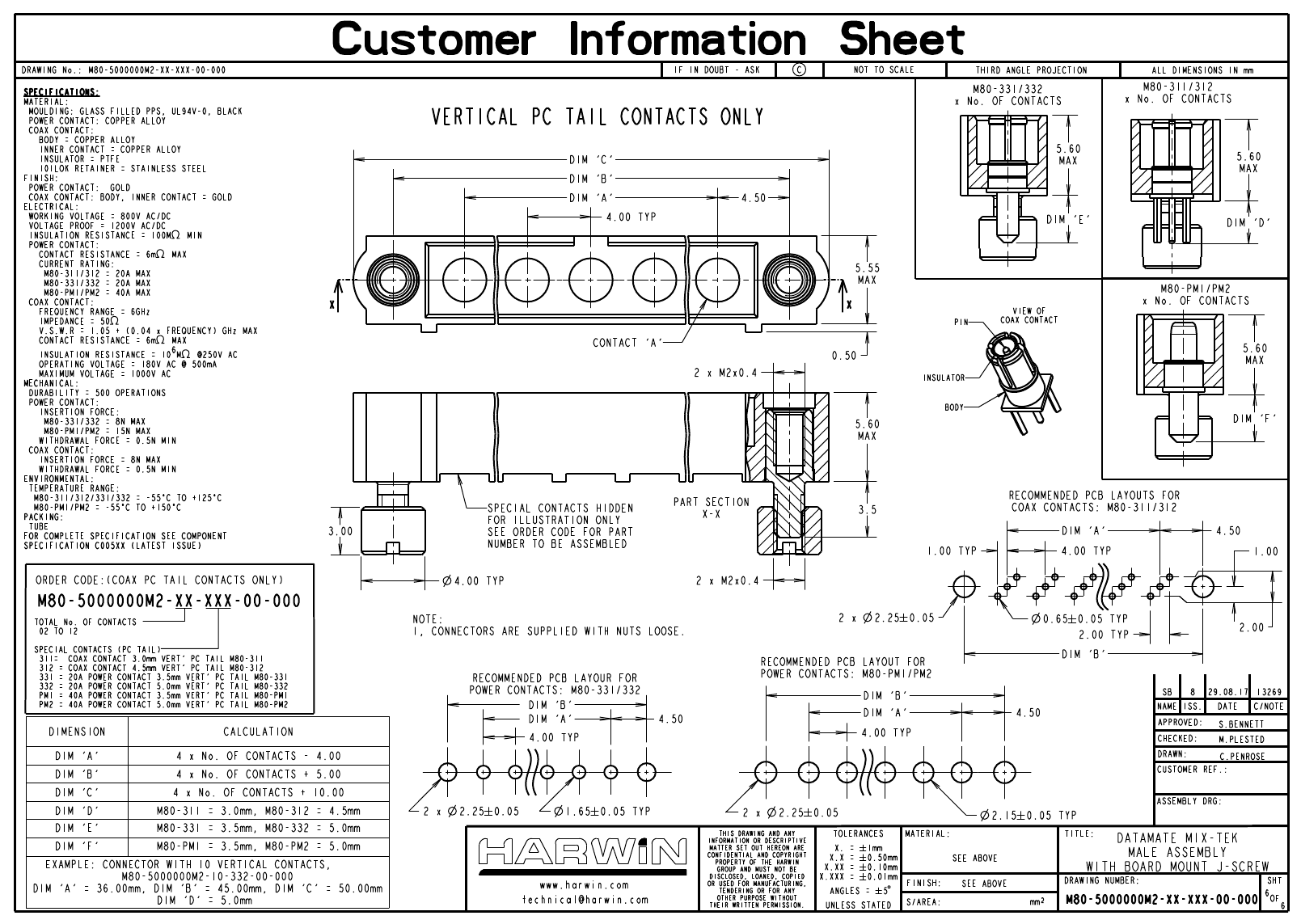

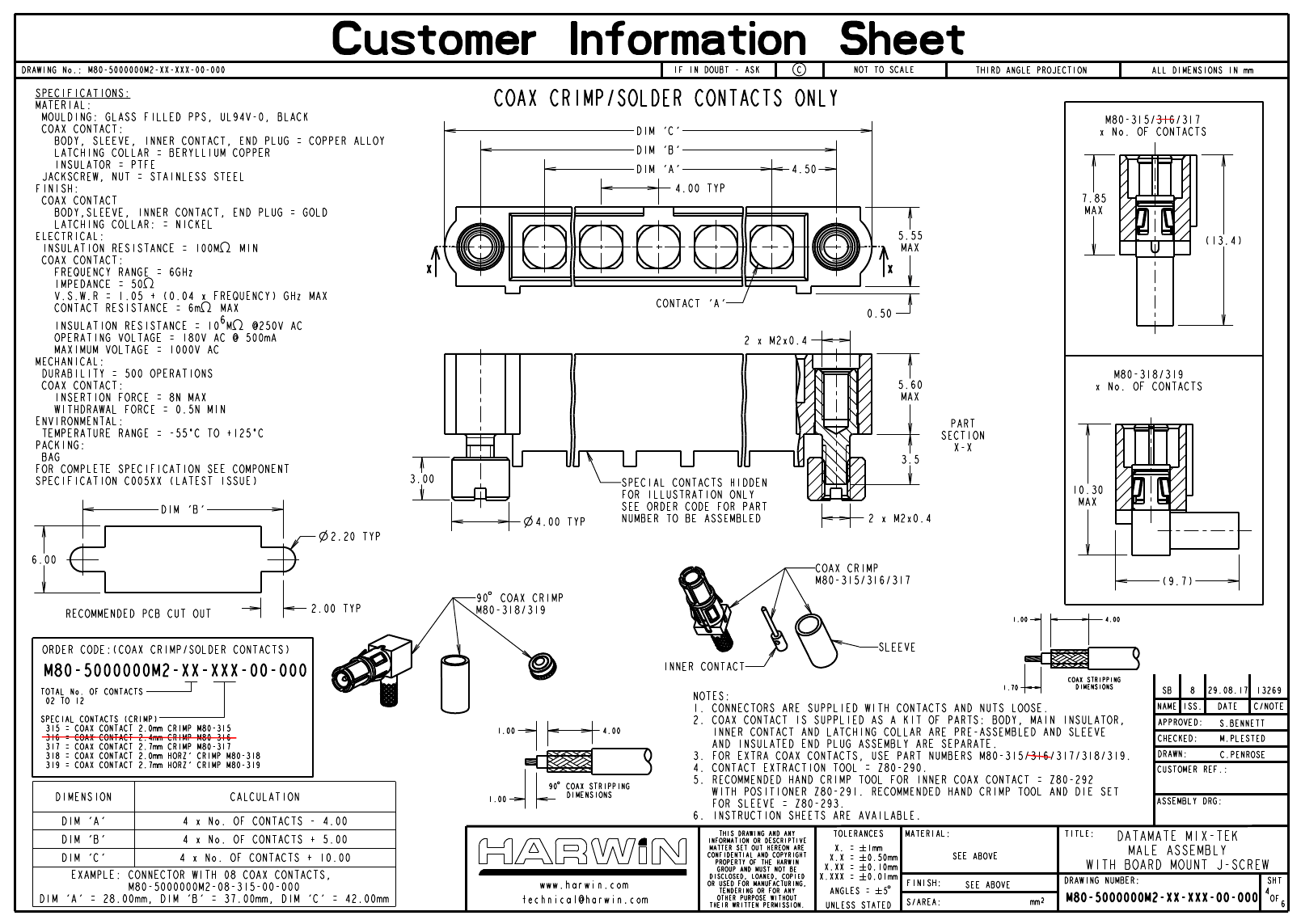

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.238 inch |
| subject depth | 0.309 inch |
| body length | 0.866 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact arrangement | S0C3 |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| Contact resistance | 6 mΩ |
| DIN compliance | NO |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.8928 N |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation option 1 | M2 |
| Installation option 2 | JACKSCREW |
| Installation method | STRAIGHT |
| Installation type | CABLE |
| Number of connectors | ONE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Guideline | UL |
| reliability | COMMERCIAL |
| Termination type | CRIMP |
| Total number of contacts | 3 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| M80-5000000M2-03-316-00-000 | M80-5000000M2-12-316-00-000 | M80-5000000M2-06-316-00-000 | M80-5000000M2-07-316-00-000 | M80-5000000M2-04-316-00-000 | M80-5000000M2-05-316-00-000 | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Crimp Terminal, M2, Black Insulator, Receptacle, | Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, Crimp Terminal, M2, Black Insulator, Receptacle, | Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Crimp Terminal, M2, Black Insulator, Receptacle, | Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Crimp Terminal, M2, Black Insulator, Receptacle, | Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Crimp Terminal, M2, Black Insulator, Receptacle, | Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Crimp Terminal, M2, Black Insulator, Receptacle, |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compli | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| body width | 0.238 inch | 0.238 inch | 0.238 inch | 0.238 inch | 0.238 inch | 0.238 inch |
| subject depth | 0.309 inch | 0.309 inch | 0.309 inch | 0.309 inch | 0.309 inch | 0.309 inch |
| body length | 0.866 inch | 2.283 inch | 1.339 inch | 1.496 inch | 1.024 inch | 1.181 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact arrangement | S0C3 | S0C12 | S0C6 | S0C7 | S0C4 | S0C5 |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact resistance | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| maximum insertion force | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation option 1 | M2 | M2 | M2 | M2 | M2 | M2 |
| Installation option 2 | JACKSCREW | JACKSCREW | JACKSCREW | JACKSCREW | JACKSCREW | JACKSCREW |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Termination type | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 3 | 12 | 6 | 7 | 4 | 5 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - |
