Part Number

Search

1-647133-2

Description
12 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size165KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

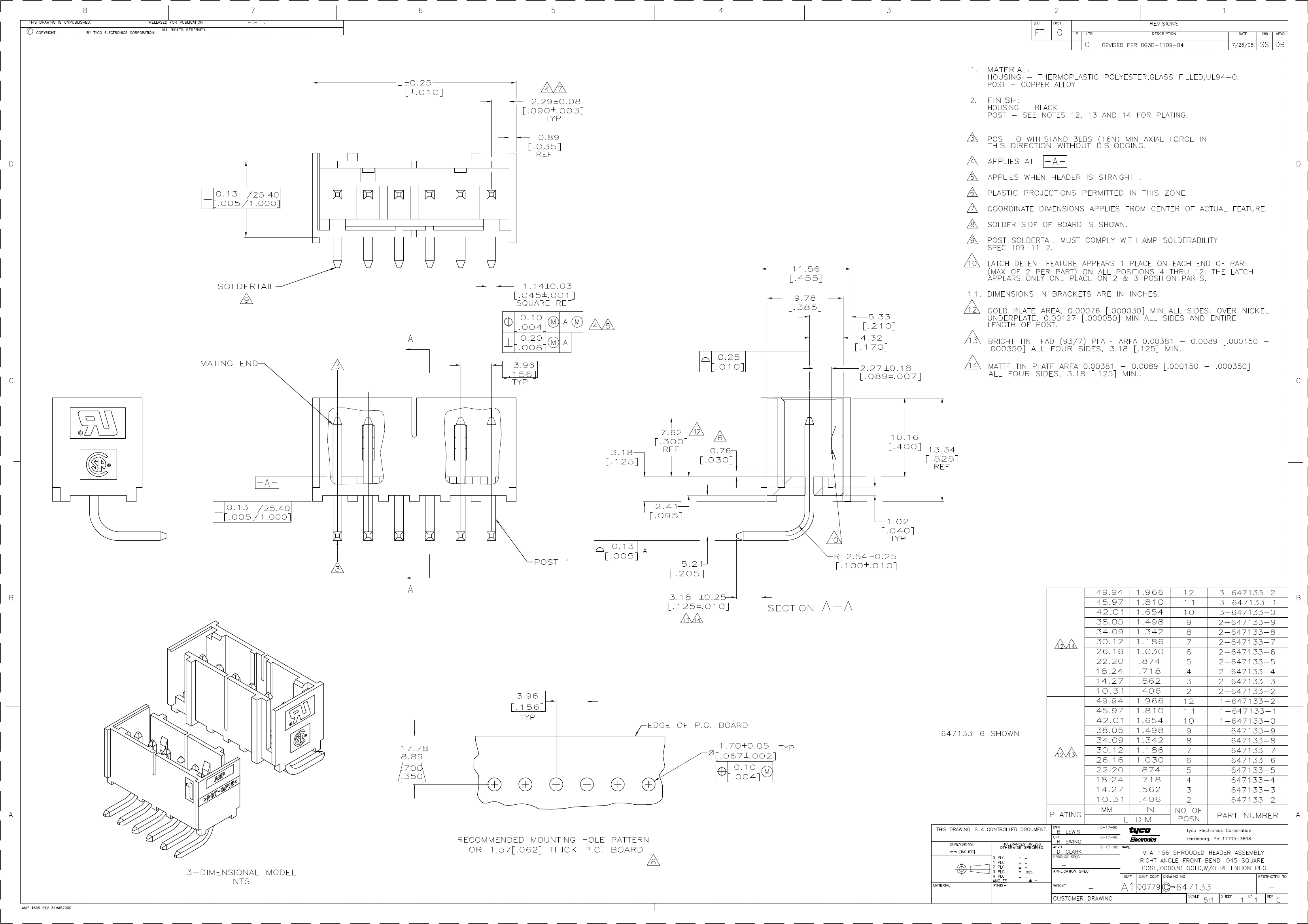

1-647133-2 Overview

12 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

1-647133-2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresLATCHED
body width0.455 inch
subject depth0.7 inch
body length1.966 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance3 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1250VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force5.7824 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Manufacturer's serial number647133
Plug contact pitch0.156 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1DETENT
Installation option 2LATCH
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)7 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch3.96 mm
Termination typeSOLDER
Total number of contacts12
UL Flammability Code94V-0
Evacuation force-minimum value.4448 N
Base Number Matches1
