1478605-7: DescriptionSnap Acting/Limit Switch, SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 16A, 125VDC, 5.3mm, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size203KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1478605-7 Overview

Snap Acting/Limit Switch, SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 16A, 125VDC, 5.3mm, PANEL MOUNT, ROHS COMPLIANT

1478605-7 Parametric

Parameter Name	Attribute value
Brand Name	Alcoswitch
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Actuator stroke	5.3 mm
Actuator type	SIMULATED ROLLER
Other features	SOLDER LUG TERMINALS ALSO AVAILABLE
body width	10.3 mm
body height	15.9 mm
Body length or diameter	29.8 mm
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	16 A
Contact (DC) maximum rated R load	16A@125VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	125 V
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	1478605
Installation features	PANEL MOUNT
Maximum operating force	1.76 N
Maximum operating temperature	130 °C
Minimum operating temperature	-20 °C
Maximum pre-travel	4 mm
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	SILVER
Termination type	QUICK CONNECT/SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

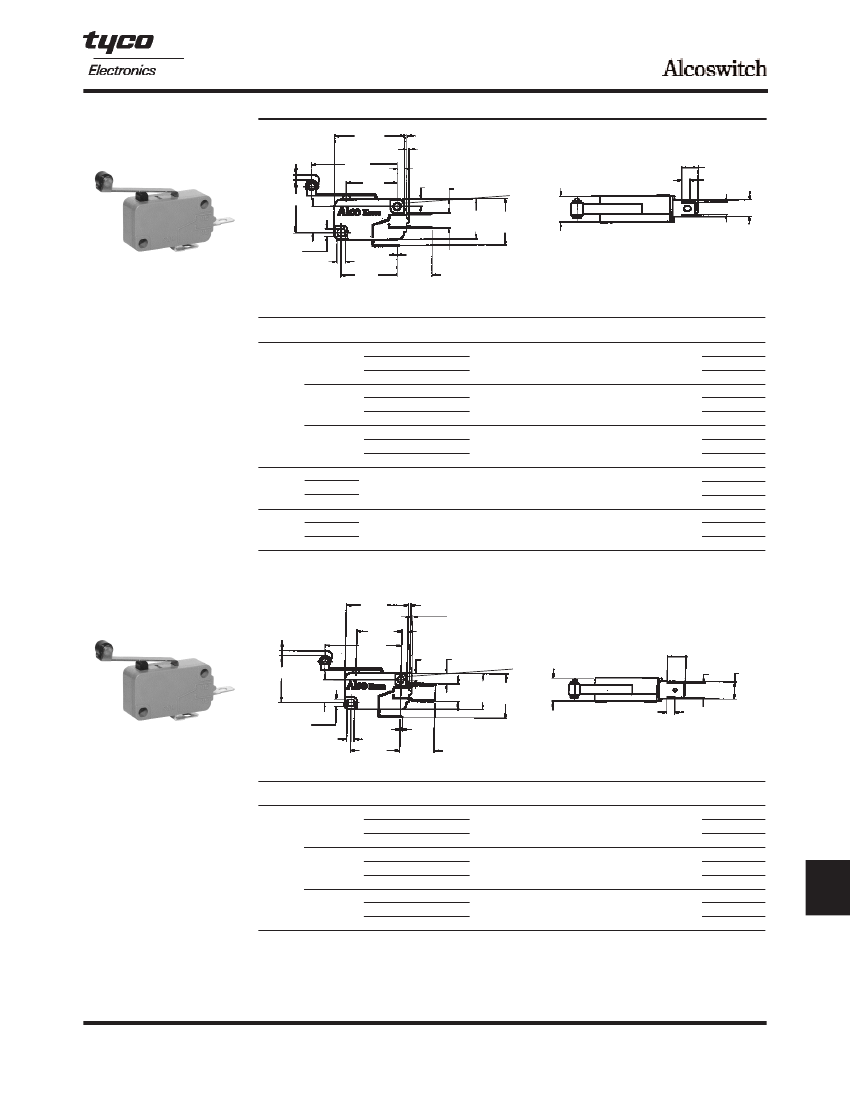

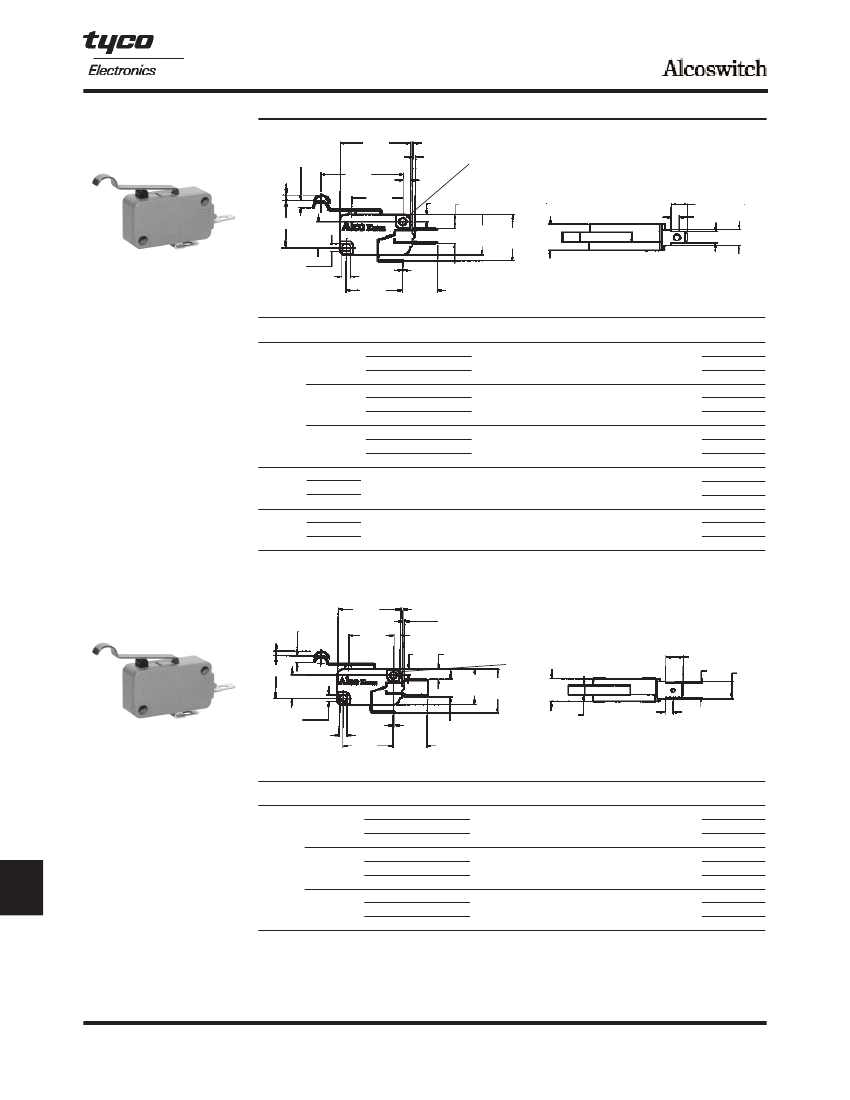

Microswitches

Miniature Normal Roller

Spade/Solder Type

Terminal

1.094

(27.8)

P.T

1.340

(34.0)

.795

(20.2)

.039

(1.00)

.039

(1.00)

.110

(2.80)

.110

(2.80)

* Refer to Pages L2 for

Product Specifications

.126

(3.20)

.252

(6.40)

.213

(5.40)

O.P

.406

(10.3)

.122

(3.10)

.122

Dia.

(3.10)

.406

(10.3)

.626 .724

(15.9) (18.4)

.189 .252

(4.80) (6.40)

Product Facts

n

.187

.134

(3.40)

.874

(22.2)

.008

(0.20)

.543

(13.8)

.240

(6.10)

[4.75] tab with solder

AMP

Switch

Position

SPDT

Operating

Force

60g

120g

180g

60g

120g

180g

60g

120g

180g

60g

Releasing

Force

10g

20g

30g

10g

20g

30g

10g

20g

30g

10g

Pre Travel

(P.T.)

4.0 m/m

[.157]

4.0 m/m

[.157]

4.0 m/m

[.157]

4.0 m/m

[.157]

4.0 m/m

[.157]

Operating

Position

20.7 ±1.6

[.815±.063]

20.7 ±1.6

[.815±.063]

20.7 ±1.6

[.815±.063]

20.7 ±1.6

[.815±.063]

20.7 ±1.6

[.815±.063]

Over

Travel

1.3 m/m

[.051]

1.3 m/m

[.051]

1.3 m/m

[.051]

1.3 m/m

[.051]

1.3 m/m

[.051]

Movement

Differential

1.2 m/m

[.047]

1.2 m/m

[.047]

1.2 m/m

[.047]

1.2 m/m

[.047]

1.2 m/m

[.047]

Part

Number

1478603-6

1478604-6

1478605-6

1478609-6

1478610-6

1478611-6

1478615-6

1478616-6

1478617-6

1478667-6

1478668-6

1478669-6

1478670-6

1478671-6

1478672-6

hole

n

Use with .187 [4.75]

FASTON receptacles or

solder directly to terminal

n

Roller to increase travel and

operating position as well

as reduce operating force

16

SPNC

SPNO

SPDT

SPNC

SPNO

SPDT

SPNC

SPNO

5

0.1

35g

6g

Spade Type Terminal

P.T

1.09

(27.8)

.795

(20.2)

1.340

(34.0)

.039

(1.00) .039

(1.00)

.110

(2.80)

.173

(4.40)

.315

(8.00).251

(6.40)

O.P

.406

(10.3)

.122

(3.10)

.122 Dia.

(3.10)

.406

.626 .776

(10.3)

(15.9) (19.7)

.134

(3.40)

.295

(7.50)

.134

(3.40)

.031

(0.80)

.874

(22.2)

.602

(15.3)

.319

(8.10)

Product Facts

n

.250

[6.35] tab for use with

.250 [6.35] FASTON

receptacles

n

Roller to increase travel and

operating position as well

as reduce operating force

AMP

Switch

Position

SPDT

16

SPNC

SPNO

Operating

Force

60g

120g

180g

60g

120g

180g

60g

120g

180g

Releasing

Force

10g

20g

30g

10g

20g

30g

10g

20g

30g

Pre Travel

(P.T.)

4.0 m/m

[.157]

4.0 m/m

[.157]

4.0 m/m

[.157]

Operating

Position

20.7 ±1.6

[.815±.063]

20.7 ±1.6

[.815±.063]

20.7 ±1.6

[.815±.063]

Over

Travel

1.3 m/m

[.051]

1.3 m/m

[.051]

1.3 m/m

[.051]

Movement

Differential

1.2 m/m

[.047]

1.2 m/m

[.047]

1.2 m/m

[.047]

Part

Number

1478606-6

1478607-6

1478608-6

1478612-6

1478613-6

1478614-6

1478618-6

1478619-6

1478620-6

L

Miniature Normal Roller

L9

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967
