Fiber Optic Products Catalog
MPO SECURE Cable Assemblies
Product Facts
■
For use with MT-RJ SECURE
System MPO Cassettes on
page 12 only
Feature colored/keyed MPO
connectors which only mate
with like colored MPO
couplers to limit access to
secure networks
12-Fibers per MPO
connector
Pulling socks protect
connectors during
installation
Available in 50 µm, Laser
Optimized (10 Gig), and
62.5 µm Multimode as
listed
Red
■

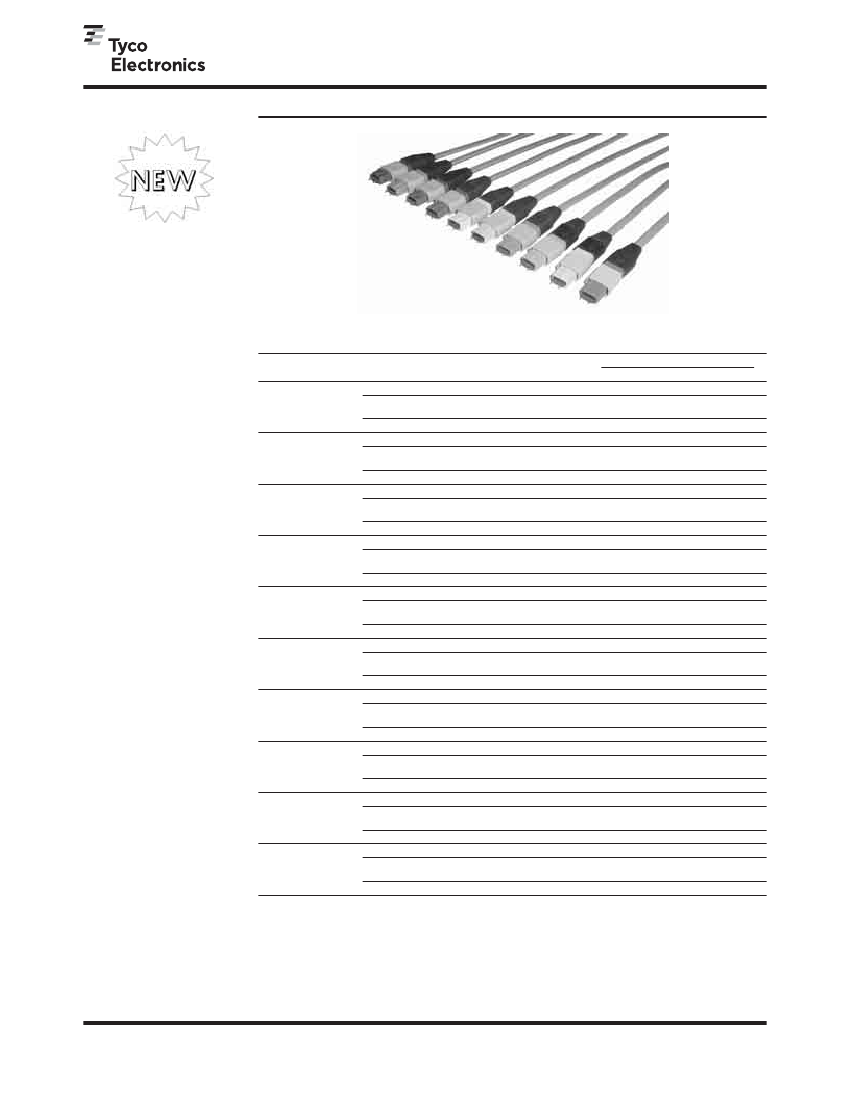

MPO SECURE Trunk Cable Assemblies
MPO SECURE
Color
Fiber Type
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
50/125 µm Multimode
Laser Optimized (10 Gig)
(850 nm LO 50/125 µm) Multimode
62.5/125 µm Multimode
Part Numbers
12 Fiber
6754273-X
6754420-X
6754269-X
6754276-X
6754421-X
6754272-X
6754274-X
6754422-X
6754270-X
6754275-X
6754423-X
6754271-X
1918741-X
1918753-X
1918747-X
1918742-X
1918754-X
1918748-X
1918743-X
1918755-X
1918749-X
1918744-X
1918756-X
1918750-X
1918745-X
1918758-X
1918751-X
1918746-X
1918759-X
1918752-X
24 Fiber
6754281-X
6754424-X
6754277-X
6754284-X
6754425-X
6754280-X
6754282-X
6754426-X
6754278-X
6754283-X
6754427-X
6754279-X
1918759-X
1918771-X
1918765-X
1918760-X
1918772-X
1918766-X
1918761-X
1918773-X
1918767-X
1918762-X
1918774-X
1918768-X
1918763-X
1918775-X
1918769-X
1918764-X
1918776-X
1918770-X
■
■
■
Yellow
Green
Blue
Rose
Aqua
Brown
Violet
Orange
Slate
Note:
X denotes length in feet: -1 = 10, -2 = 20, -3 =
30,
-4 = 40, -5 = 50, -6 = 60, -7 = 70, -8 =
80,
-9 = 90, 1- -0 = 100,
1- -1 = 110, 1- -2 = 120, 1- -3 = 130, 1- -4 = 140, 1- -5 = 150, 1- -6 = 160, 1- -7 = 170, 1- -8 = 180, 1- -9 = 190, 2- -0 = 200,
2- -1 = 210, 2- -2 = 220, 2- -3 = 230, 2- -4 = 240, 2- -5 = 250, 2- -6 = 260, 2- -7 = 270, 2- -8 = 280, 2- -9 = 290,
3-
-0 =
300.
Note:
All part numbers
are
RoHS compliant.
108
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639

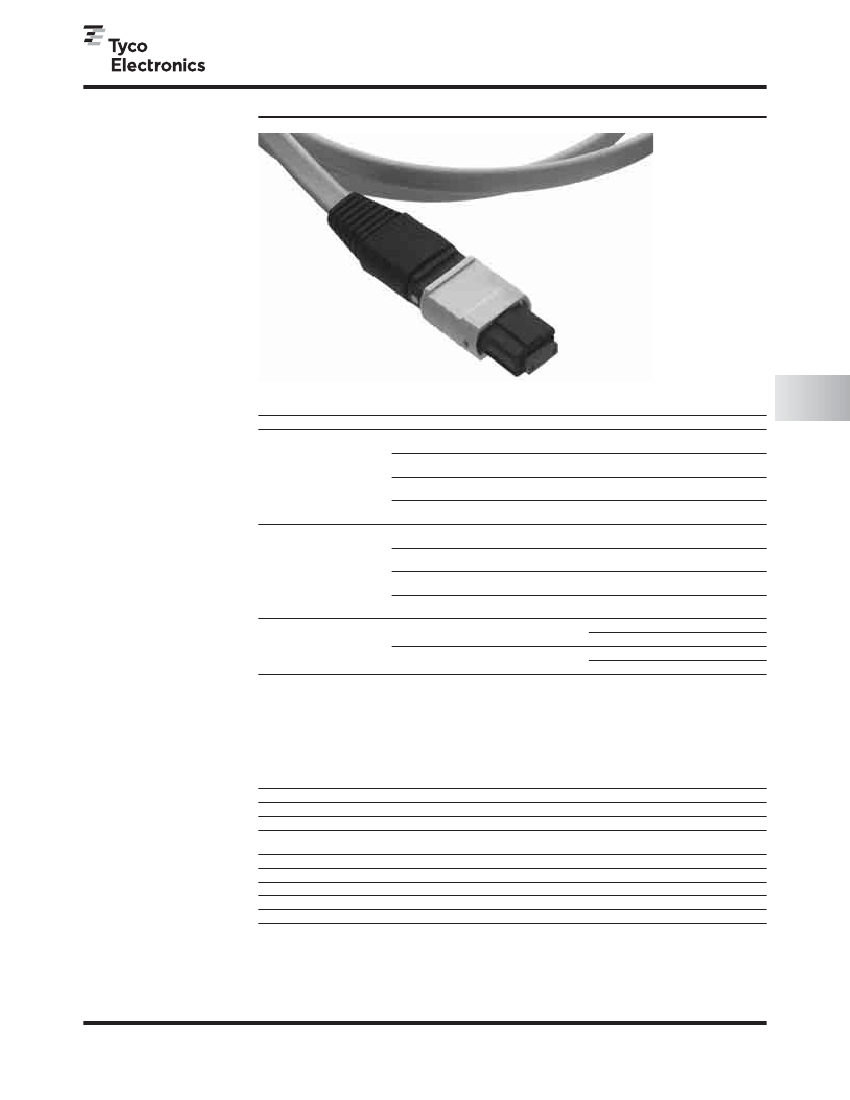

Fiber Optic Products Catalog
MPO Cable Assemblies
MPO to MPO
Trunk Cable Assemblies
Product Facts
■
■
Quick connection of
12 fibers
Pulling socks protect
connectors during
installation
Available in
■
62.5/125 µm
■
50/125 µm
■
50/125 µm laser optimized
■
Singlemode
Cable Assemblies &
Backplane Interconnects
■
Description
50/125 µm Multimode
12 Fiber,
Pair-Flipped (AB/BA)
Laser Optimized (10 Gig)
(850 nm 50/125 µm) Multimode
62.5/125 µm Multimode
Singlemode
50/125 µm Multimode
24 Fiber,
Pair-Flipped (AB/BA)
Laser Optimized (10 Gig)
(850 nm 50/125 µm) Multimode
62.5/125 µm Multimode
Singlemode
50/125 µm Multimode
72-Fiber,
Pair-Flipped (AB/BA)
62.5/125 µm Multimode
UL/NEC Ratings
Riser (OFNR)/
Plenum (OFNP)
Riser (OFNR)/
Plenum (OFNP)
Riser (OFNR)/
Plenum (OFNP)
Riser (OFNR)/
Plenum (OFNP)
Riser (OFNR)/
Plenum (OFNP)
Riser (OFNR)/
Plenum (OFNP)
Riser (OFNR)/
Plenum (OFNP)
Riser (OFNR)/
Plenum (OFNP)
Plenum (OFNP)
Riser (OFNR)
Plenum (OFNP)
Riser (OFNR)
Part Number
6435028-X
6693087-X
6435024-X
6435070-X
6435029-X
6754687-X
6435025-X
6754882-X
6435031-X
6435039-X
6435027-X
6435035-X
2
Note:
X denotes length in feet: -1 = 10, -2 = 20, -3 = 30, -4 = 40, -5 = 50, -6 = 60, -7 = 70, -8 = 80, -9 = 90, 1- -0 = 100,
1- -1 = 110, 1- -2 = 120, 1- -3 = 130, 1- -4 = 140, 1- -5 = 150, 1- -6 = 160, 1- -7 = 170, 1- -8 = 180, 1- -9 = 190,
2- -0 = 200, 2- -1 = 210, 2- -2 = 220, 2- -3 = 230, 2- -4 = 240, 2- -5 = 250, 2- -6 = 260, 2- -7 = 270, 2- -8 = 280,
2- -9 = 290, 3- -0 = 300.
Other Standard MPO
Cable Assemblies
Other Standard MPO Cable Assemblies
Part Number
6588930-X
6588688-X
6693182-X
6693088-X
1588388-X
6457988-X
6828375-X
6828420-X
Description
12-f MPO (f) - MPO (f), 50/125, jacketed ribbon, straight fiber path
12-f MPO (f) - MPO (f), 50/125, jacketed ribbon, reversed fiber path
12-f MPO (f) - MPO (f), 50/125, jacketed ribbon, reversed fiber path
(For POP4 TxRx applications. Center 4 fibers not tested.)
12-f MPO (f) - MPO (f), SM, jacketed ribbon, straight fiber path
12-f MPO (f) - MPO (f), 62.5/125, jacketed ribbon, reversed fiber path
12-f MPO (f) - MPO (f), 62.5/125, jacketed ribbon, straight fiber path
12-f MPO (m) - MPO (m), 50/125, jacketed ribbon, straight fiber path
12-f MPO (m) - MPO (m), 50/125, jacketed ribbon, reversed fiber path
Note:
X denotes length in feet: -1 = 10, -2 = 20, -3 = 30, -4 = 40, -5 = 50, -6 = 60, -7 = 70, -8 = 80, -9 = 90, 1- -0 = 100,
1- -1 = 110, 1- -2 = 120, 1- -3 = 130, 1- -4 = 140, 1- -5 = 150, 1- -6 = 160, 1- -7 = 170, 1- -8 = 180, 1- -9 = 190,
2- -0 = 200, 2- -1 = 210, 2- -2 = 220, 2- -3 = 230, 2- -4 = 240, 2- -5 = 250, 2- -6 = 260, 2- -7 = 270, 2- -8 = 280,
2- -9 = 290, 3- -0 = 300.
All part numbers are RoHS compliant.
125
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
Fiber Optic Products Catalog
MPO Cable Assemblies
(Continued)

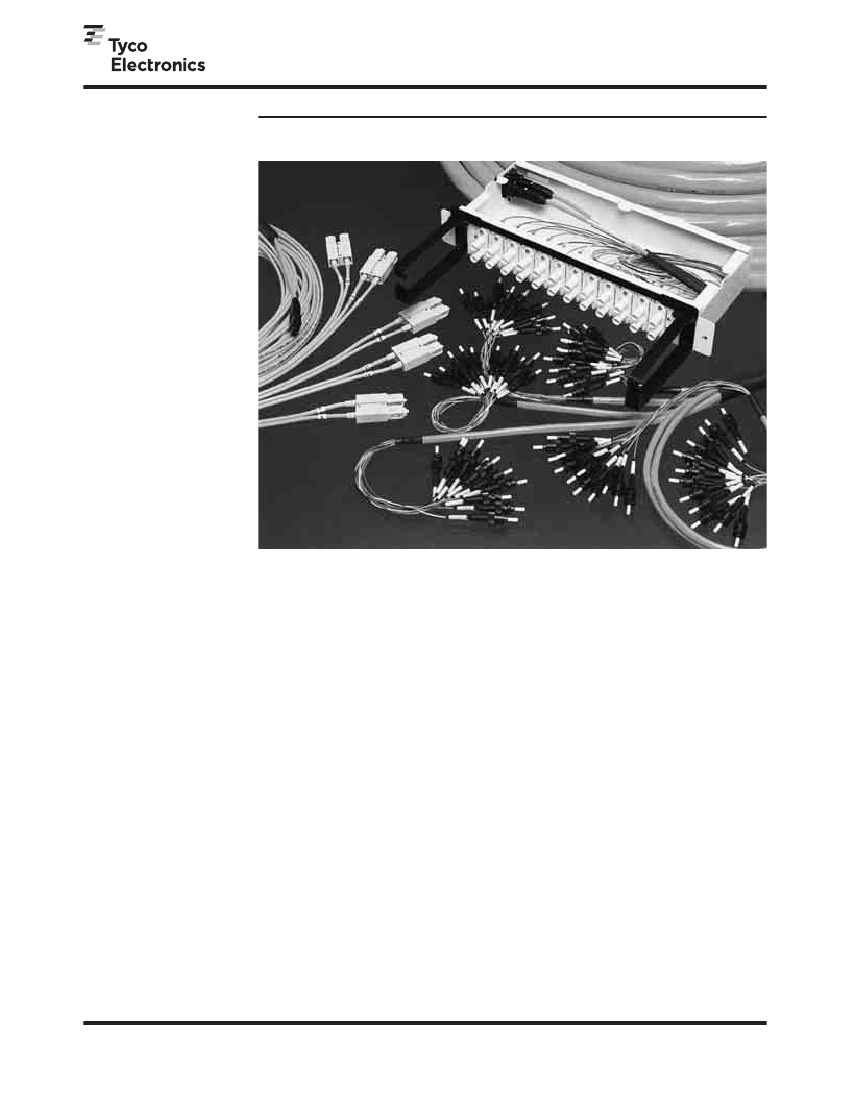

MPO Cable Assemblies for Premise Networks
Description
■
A modular “plug-and-go”
optical cabling system
Applications
■
A high-performance option
for AMP NETCONNECT
zone cabling and cabling
systems
Product Facts
■
Uses proven NTT MT linear
array technology in the MPO
connector
MPO packs up to 12 optical
fibers into a single
miniaturized connector
about the same size as
one SC type
Cables are pre-terminated
and tested
Distribution hardware is
pre-loaded
Cable rating options:
■
Riser rated, UL-OFNR
■
Plenum rated, UL-OFNP
(std.)
■
Low Smoke, Zero
Halogen rated, LSZH
Singlemode or Multimode
■
■
■
■
■
Other Applications
■
Cabling System for
Mainframes Catalog 889414
Performance Characteristics
Insertion Loss
—
Singlemode — 0.35 dB typical
Multimode — 0.50 dB typical
Return Loss
—
Angled Singlemode — -50 dB typical
Flat Multimode — -40 dB typical
Durability
—
After 500 matings
≤
0.1 dB change
Temperature Range
—
-40°C to +80°C
■
Initially designed to replace
thick copper parallel cables
used under floors of
computer rooms in large
mainframe centers,
Tyco Electronics’ MPO
Cabling System also makes
perfect sense for campus
and premise type Local
Area Networks. It provides
unparalleled ease and flexi-
bility in cabling applications
such as backbone and hori-
zontal distribution to the
desktop.
The MPO System uses the
same simple concepts
found in most structured
networks following TIA/EIA
568A guidelines. The
difference is that with MPO
Systems the cables come
pre-terminated and tested,
with a pulling sock over
each end. Just pull through
the conduit, remove the
netting, and plug it in —
that’s it.

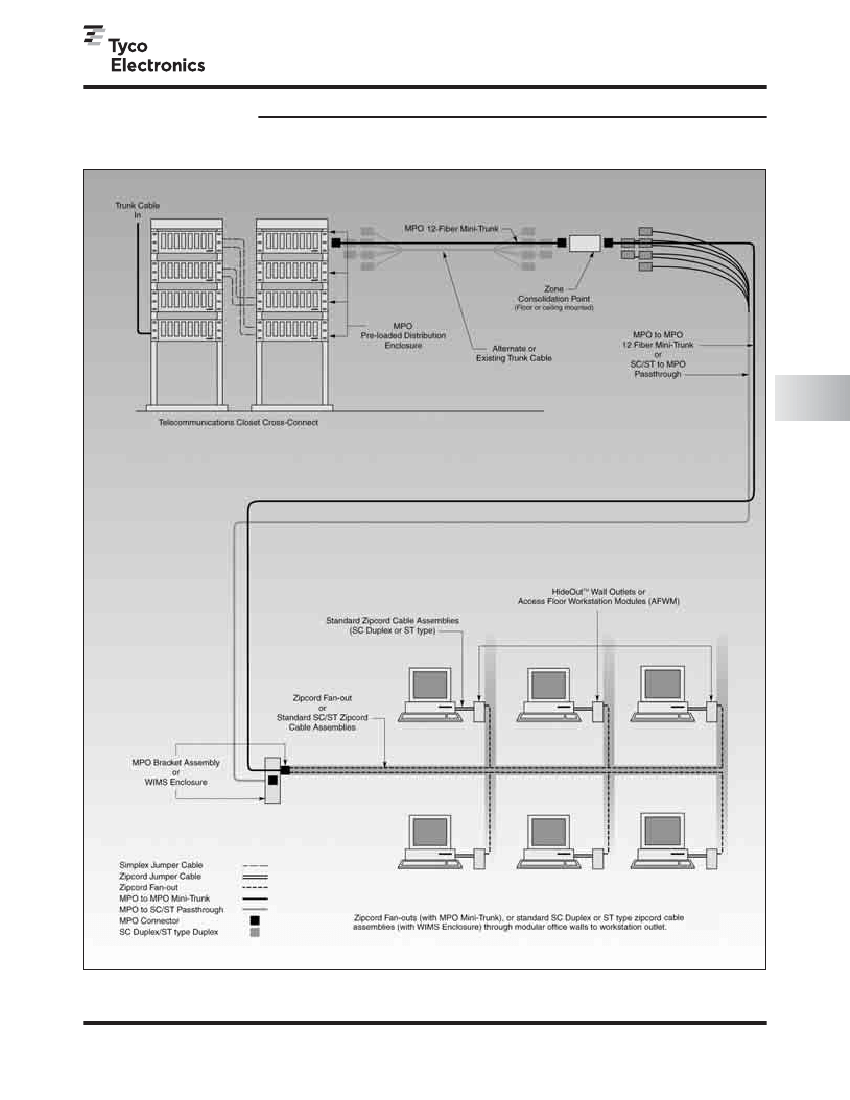

MPO trunk cables run
through the building verti-
cally between floors, and
horizontally through walls,
ceilings, and under floors to
distribution enclosures and
consolidation points strate-
gically located within the
building. Mini-trunks and
fanout assemblies connect
the consolidation point to
the workstation outlets.
Jumper cables connect the
outlet to the workstation,
and are also used for cross-
connecting in the telecom-
munications closet.
Installation is easier and
faster with cables selected
specifically for each site.
MPO cabling is a high
performance option for
AMP NETCONNECT zone
cabling, and complements
the system as a furniture
cabling solution. MPO
cables can reside parallel to
existing UTP without fear of
crosstalk.
Mini-trunk feeder cables
and fan-out cable assem-
blies are an ideal solution
for the open office environ-
ment. Their small size
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
allows easy storage in
modular office panels and
raceways. When it’s time
to move add or change the
zone, the mini-trunks are
simply unplugged from
nearby zone enclosures and
moved with the furniture.
Data outage is contained to
the zone under construction.
After the zone is reconfig-
ured, just plug the MPO
connectors back in to the
network, and your worksta-
tions are up and running.
There’s no longer a need to
bring in a network staff to
shut down the entire system
to re-terminate and test the
cabling for moves, adds,
and changes. Moves can
usually be done by the
end-user’s facilities crew or
someone with minimal net-
work experience. At last,
“modular” is living up to its
promise. You can take an
office apart, move it, and
put it back together —
quick and simple!
Produced under a Quality
Management System
certified to ISO 9001
A copy of the certificate is
available upon request
126
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
Fiber Optic Products Catalog
MPO Cable Assemblies
(Continued)
MPO Cable Assemblies for Premise Networks
(Continued)
127
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
Cable Assemblies &
Backplane Interconnects
2
Fiber Optic Products Catalog
MPO Cable Assemblies
(Continued)
MPO Cable Assemblies for Premise Networks
(Continued)
Pairs Flipped Versus
Straight Through Fiber
Path Configuration
Unlike the mainframe
application counterparts,
Tyco Electronics’ MPO
trunks for Premise applica-
tions typically do not require
“pair flipping”.
Pair Flipping, or “AB/BA”
transmit/receive configura-
tion is a sequential channel
cross-over scheme used for
IBM Enterprise Systems
Connectivity (ESCON)
architecture. MPO premise
trunk fiber pairs are config-
ured as “AB/AB”. For exam-

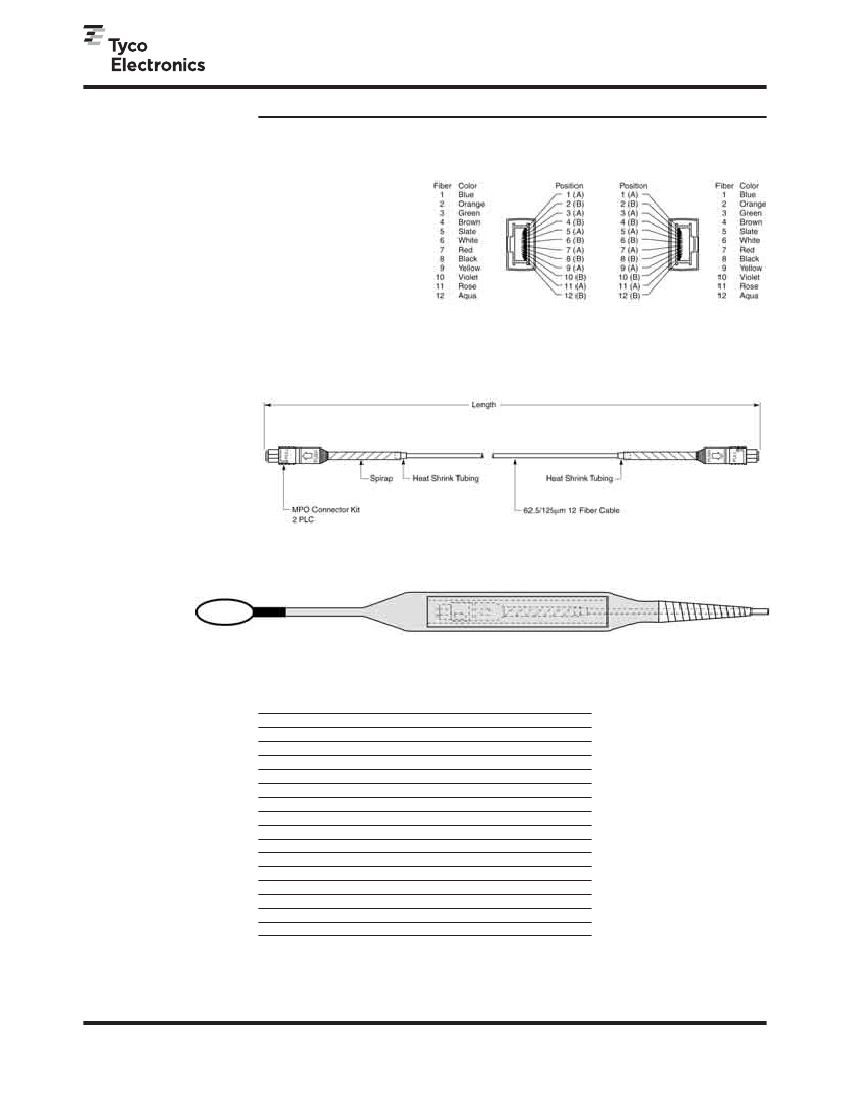

ple — blue fiber (1) travels
straight through the cable
and exits on the opposite
end in the same position (1),
as illustrated (right). This
fiber path configuration is
known as “straight through”.
Straight Through
Fiber Path Configuration
MPO to MPO Mini-Trunk
Cable Assembly
4 pair (8 fiber),
straight through
62.5/125 multimode
Pulling Sock (included on each end)
MPO to MPO Mini-Trunks
Trunk Length
6 meter [19.7 feet]
8 meter [26.3 feet]
10 meter [32.8 feet]
15 meter [49.2 feet]
20 meter [65.6 feet]
23 meter [75.5 feet]
27 meter [88.6 feet]
30 meter [98.4 feet]
33 meter [108.3 feet]
38 meter [124.7 feet]
43 meter [141.1 feet]
46 meter [150.9 feet]
50 meter [164.1 feet]
53 meter [173.9 feet]
61 meter [200.1 feet]
Part Number (OFNP)
1-5492105-9
2-5492105-0
5492105-2
5492105-7
5492105-3
2-5492105-1
2-5492105-2
5492105-4
2-5492105-3
1-5492105-5
2-5492105-4
1-5492105-6
5492105-8
1-5492105-7
1-5492105-3
Additional lengths available.
Custom lengths can be built to customer’s specifications.
ESCON is a trademark of IBM
Corporation.
Note:
All part numbers are RoHS compliant.
128
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
京公网安备 11010802033920号
EEWORLD
