511150350 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 511150350

511150350: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size279KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

511150350 Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle

511150350 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.213 inch
subject depth	0.173 inch
body length	1.075 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	5111
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.6896 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

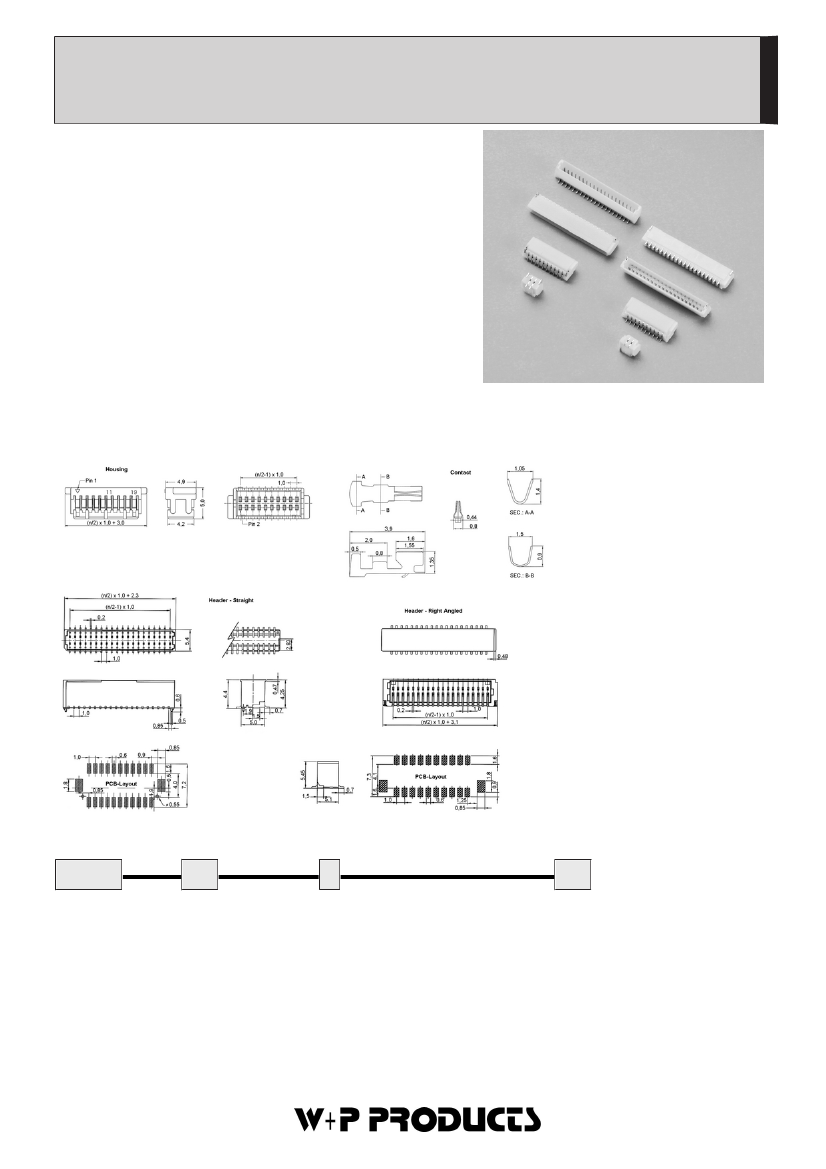

5111

SMT - Stift-/Buchsenleisten - Crimp-Rast-System - RM 1,00mm

SMT - Friction Lock Header and Crimp Housing - Pitch 1,00mm

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Messing, verzinnt

Contact Material

Brass, tin plated

Aderquerschnitt

AWG 28 ... 32

Applicable wire Gauge

AWG 28 ... 32

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

500V

Test Voltage

500V

Nennspannung

50V

AC/DC

max.

Voltage Rating

50V

AC/DC

max.

Nennstrom

Current Rating

Temperaturbereich

-25°C ... +85°C

Temperature Range

-25°C ... +85°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Series

Contacts

Type

Plating

5111

20/30/40/50

Buchsengehäuse

Housing

Buchsenkontakte

Crimp contacts

Stiftleiste gerade

Straight pin header

Stiftleiste gewinkelt

Right angled pin header

Verzinnt (Standard)

für Gehäuse nicht erforderlich

Tin plated (Standard)

(not necessary for housings)

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
