Fine Pitch SMT
Board to Board Connectors
Series 5602

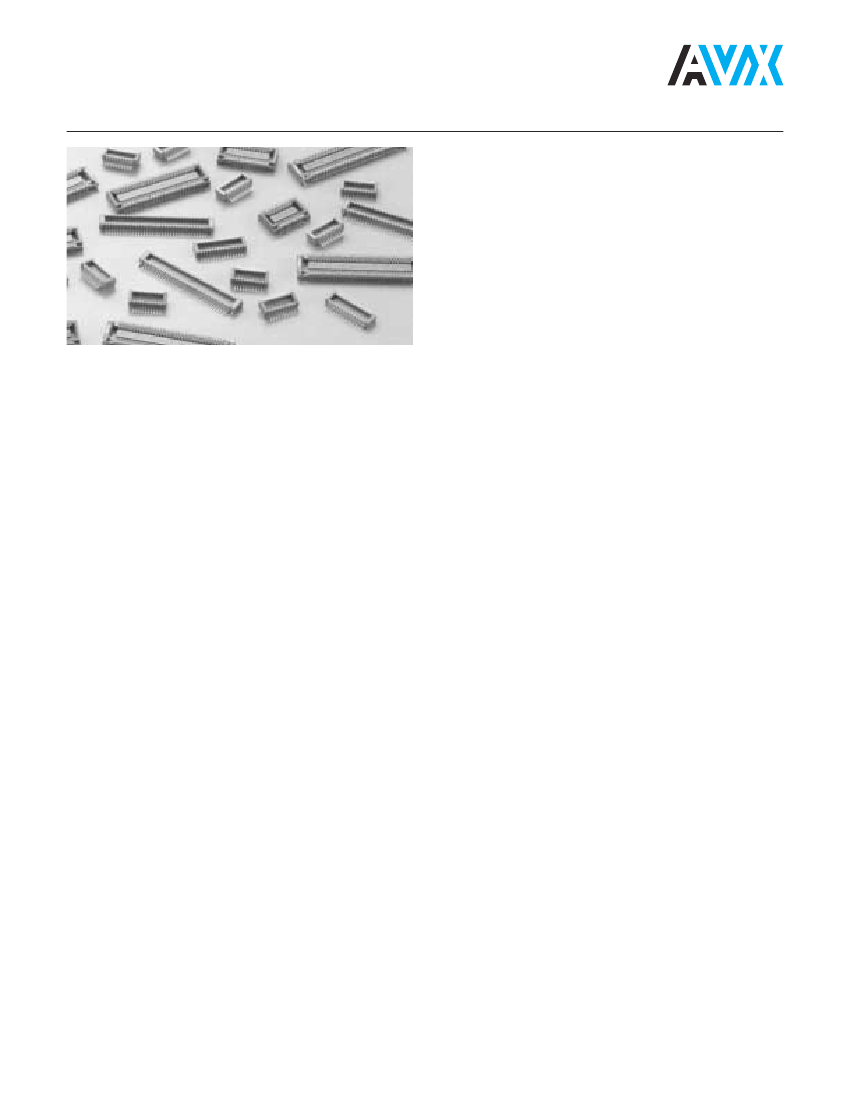

Series 5602 is a two-piece 0.4mm pitch, PCB stacking
connector. Offered at a 1.5mm stack height, Series 5602 is
ideal for high density packaging applications.
Market applications include mobile PC’s, PDA’s, DVD, Cell
Phones and Digital Cameras.
FEATURES
0.4mm fine pitch and low profile connector, with stacking
height of 1.5mm. These features result in the highest density
stacking connector in the industry.
The connector design provides for an audible click, which
confirms that the contacts are properly mated.
Offered with, and without, metal strain relief and boss.
Designed to prevent solder wicking.
Enclosed SMT contacts, provide for high density routing, by
allowing traces to be located under the connector.
Ideal for FPC to PCB connections.
Compatible with high temperature, lead free, soldering
processes.
Packaging consists of 2,000 connectors per reel.
SPECIFICATIONS
Series
Mated Height
Pitch
Current
Voltage
D.W. Voltage
Mating Cycles
5602
1.5mm
0.4mm
0.4A Max
50V Max
250V Max/min.
30
ELCO
3
Fine Pitch SMT
Board to Board Connectors

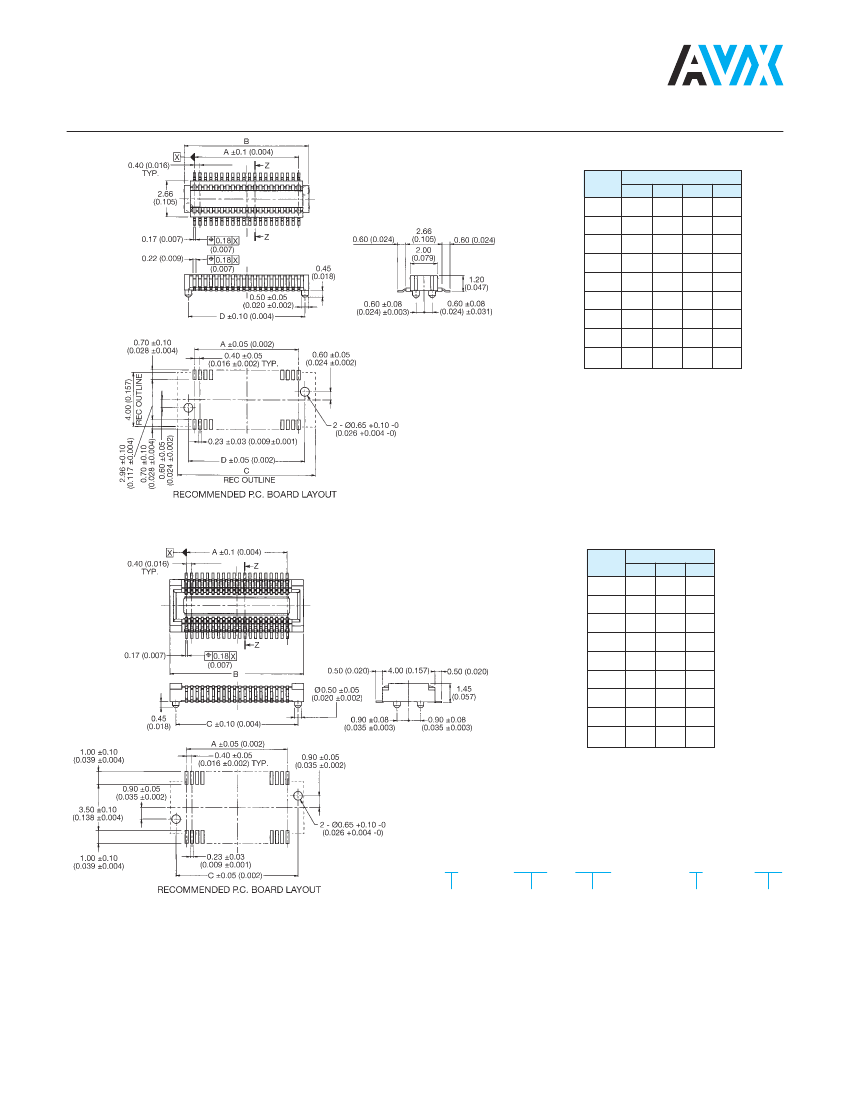

Series 5602 – 1.5mm Mated Height, without Strain Relief
PLUG
No. of
Pos.
020
024
030
034
040
050
060
070
080
A
Dimension
B
C
5.1
(0.201)
5.9
(0.232)
7.1
(0.280)
7.9
(0.311)
9.1
(0.358)
11.1
(0.437)
13.1
(0.516)
15.1
(0.594)
17.1
(0.673)
6.1
(0.205)
6.9
(0.272)
8.1
(0.319)
8.9
(0.350)
10.1
(0.571)
12.1
(0.478)
14.1
(0.555)
16.1
(0.634)
18.1
(0.713)
D
4.5
(0.177)
5.3
(0.209)
6.5
(0.256)
7.3
(0.287)
8.5
(0.335)
10.5
(0.413)
12.5
(0.492)
14.5
(0.571)
16.5
(0.650)
3.6
(0.142)
4.4
(0.173)
5.6
(0.220)
6.4
(0.252)
7.6
(0.705)
9.6
(0.378)
11.6
(0.457)
13.6
(0.535)
15.6
(0.614)
RECEPTACLE
No. of
Pos.
020
024
030
034
040
050
060
070
080
A
Dimension
B
C
6.1
(0.240)
6.9
(0.272)
8.1
(0.319)
8.9
(0.350)
10.1
(0.571)
12.1
(0.476)
14.1
(0.555)
16.1
(0.634)
18.1
(0.713)
5.2
(0.20)
6.0
(0.236)
7.2
(0.283)
8.0
(0.315)
9.2
(0.709)
11.2
(0.441)
13.2
(0.520)
15.2
(0.598)
17.2
(0.677)
3.6
(0.142)
4.4
(0.173)
5.6
(0.220)
6.6
(0.260)
7.6
(0.705)
9.6
(0.378)
11.6
(0.457)
13.6
(0.535)
15.6
(0.614)
HOW TO ORDER
X4
Prefix
14 = Plug
24 = Receptacle
5602
Series
Number
XXX
00X
829
Parts are supplied in tape and reel packaging
with 2000 pieces per reel.
Number of
Variation Code
Finish
Positions
0 = Without Strain Relief
Code
020
and without Boss
024
1 = Without Strain Relief
030
and with Boss
034
040
050
060
070
080
4
ELCO
Fine Pitch SMT
Board to Board Connectors

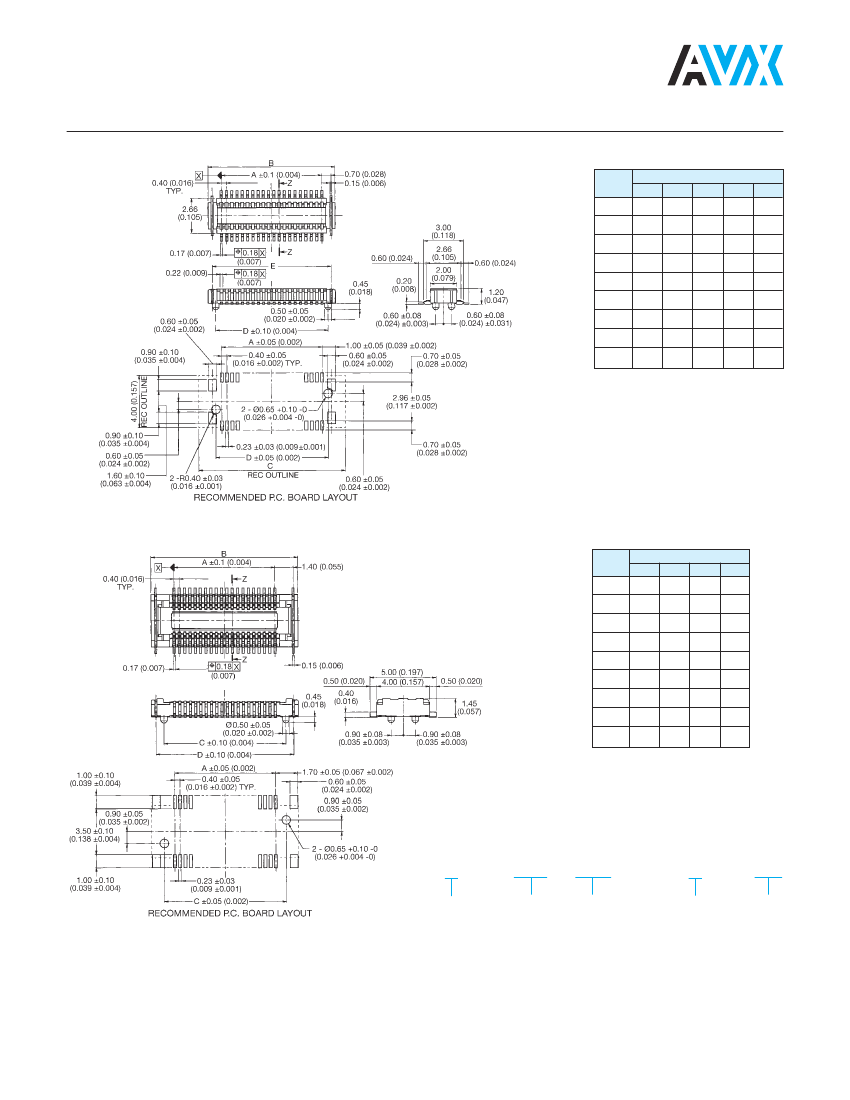

Series 5602 – 1.5mm Mated Height, with Strain Relief
PLUG
No. of
Pos.
020
024
030
034
040
050
060
070
080
A
3.6
(0.142)
4.4
(0.173)
5.6
(0.220)
6.4
(0.252)
7.6
(0.705)
9.6
(0.378)
11.6
(0.457)
13.6
(0.535)
15.6
(0.614)
B
Dimension
C
D
7.1
(0.280)
7.9
(0.3112)
9.1
(0.358)
9.9
(0.390)
11.1
(0.437)
13.1
(0.516)
15.1
(0.594)
17.1
(0.673)
19.1
(0.752)
4.5
(0.177)
5.3
(0.209)
6.5
(0.256)
7.3
(0.287)
8.5
(0.335)
10.5
(0.413)
12.5
(0.492)
14.5
(0.571)
16.5
(0.650)
E
5.0
(0.197)
5.8
(0.228)
7.0
(0.276)
7.8
(0.307)
9.0
(0.354)
11.0
(0.433)
13.0
(0.512)
15.0
(0.591)
17.0
(0.669)
5.6
(0.220)
6.4
(0.252)
7.6
(0.299)
8.4
(0.331)
9.6
(0.378)
11.6
(0.457)
13.6
(0.535)
15.6
(0.614)
17.6
(0.693)
RECEPTACLE
No. of
Pos.
020
024
030
034
040
050
060
070
080
A
3.6
(0.142)
4.4
(0.173)
5.6
(0.220)
6.4
(0.2520)
7.6
(0.705)
9.6
(0.378)
11.6
(0.457)
13.6
(0.535)
15.6
(0.614)
Dimension
B
C
7.1
(0.280)
7.9
(0.311)
9.1
(0.358)
9.9
(0.390)
11.1
(0.437)
13.1
(0.476)
15.1
(0.594)
17.1
(0.673)
19.1
(0.752)
5.2
(0.205)
6.0
(0.236)
7.2
(0.283)
8.0
(0.315)
9.2
(0.709)
11.2
(0.441)
13.2
(0.520)
15.2
(0.598)
17.2
(0.677)
D
6.4
(0.252)
7.2
(0.283)
8.4
(0.331)
9.2
(0.362)
10.4
(0.409)
12.4
(0.488)
14.4
(0.567)
16.4
(0.646)
18.4
(0.724)
HOW TO ORDER
X4
Prefix
14 = Plug
24 = Receptacle
5602
Series
Number
XXX
00X
829
Finish
Code
Parts are supplied in tape and reel packaging
with 2000 pieces per reel.
Number of
Variation Code
Positions
2 = With Strain Relief
020
and without Boss
024
3 = With Strain Relief
030
and with Boss
034
040
050
060
070
080
ELCO
5
Fine Pitch SMT
Board to Board Connectors
Series 5602

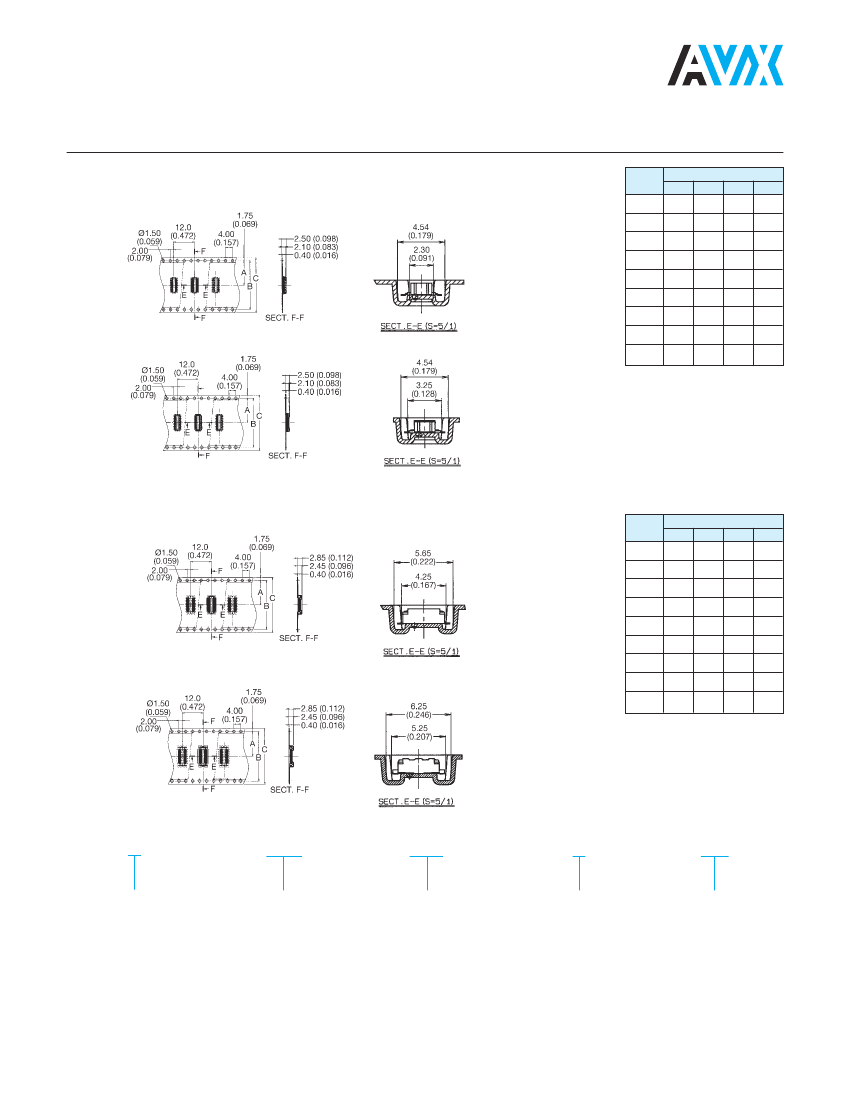

Tape and Reel Package for Mated Height 1.5mm
PLUG
Without Strain Relief
No. of
Pos.
020
024
030
034
040
050
060
070
A
11.5
(0.453)
11.5
(0.453)
11.5
(0.453)
11.5
(0.453)
11.5
(0.453)
14.2
(0.559)
14.2
(0.559)
14.2
(0.559)
14.2
(0.559)
Dimension
B
C
–
–
–
–
–
28.4
(0.921)
28.4
(0.921)
28.4
(0.921)
28.4
(0.921)
24
(0.945)
24
(0.945)
24
(0.945)
24
(0.945)
24
(0.945)
32
(1.260)
32
(1.260)
32
(1.260)
32
(1.260)
D
30.4
(1.197)
30.4
(1.197)
30.4
(1.197)
30.42
(1.197)
30.4
(1.197)
38.4
(1.512)
38.4
(1.512)
38.4
(1.512)
38.4
(1.512)
With Strain Relief
080
RECEPTACLE
Without Strain Relief
No. of
Pos.
020
024
030
034
040
050
A
11.5
(0.453)
11.5
(0.453)
11.5
(0.453)
11.5
(0.453)
11.5
(0.453)
14.2
(0.559)
14.2
(0.559)
14.2
(0.559)
14.2
(0.559)
Dimension
B
C
–
–
–
–
–
28.4
(0.921)
28.4
(0.921)
28.4
(0.921)
28.4
(0.921)
24
(0.945)
24
(0.945)
24
(0.945)
24
(0.945)
24
(0.945)
32
(1.260)
32
(1.260)
32
(1.260)
32
(1.260)
D
30.4
(1.197)
30.4
(1.197)
30.4
(1.197)
30.42
(1.197)
30.4
(1.197)
38.4
(1.512)
38.4
(1.512)
38.4
(1.512)
38.4
(1.512)
With Strain Relief
060
070
080
HOW TO ORDER
X4
5602
XXX
00X
829
Prefix
14 = Plug
24 = Receptacle
Series Number
Specification of the catalog might be changed without notice.
Please verify our drawing and specification with your design.
Parts are supplied in tape and reel packaging
with 2000 pieces per reel.
Number of Positions
020
024
030
034
040
050
060
070
080
Variation Code
0 = Without Strain Relief
and without Boss
1 = Without Strain Relief
and with Boss
2 = With Strain Relief and
without Boss
3 = With Strain Relief
and with Boss
Finish Code
