1.5SMCJ60CA: DescriptionTrans Voltage Suppressor Diode, 1500W, 60V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size115KB，4 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric View All

1.5SMCJ60CA Overview

Trans Voltage Suppressor Diode, 1500W, 60V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN

1.5SMCJ60CA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DO-214AB
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Maximum breakdown voltage	74 V
Minimum breakdown voltage	66.7 V
Breakdown voltage nominal value	70.35 V
Maximum clamping voltage	96.8 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	60 V
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

1.5SMCJ5.0 ... 1.5SMCJ170CA

Surface mount unidirectional and bidirectional Transient Voltage Suppressor Diodes

Unidirektionale und bidirektionale Spannungs-Begrenzer-Dioden für die Oberflächenmontage

Version 2013-12-11

7.9

±0.2

2.2

±0.3

2.1

±0.2

Peak pulse power dissipation

Impuls-Verlustleistung

Nominal Stand-off voltage

Nominale Sperrspannung

Plastic case

Kunststoffgehäuse

1500 W

5.0...170 V

~ SMC

~ DO-214AB

0.21 g

1.2

0.15

5.8

Type

Typ

Weight approx. – Gewicht ca.

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Standard packaging taped and reeled

Standard Lieferform gegurtet auf Rollen

±0.2

7.2

±0.5

Dimensions - Maße [mm]

For bidirectional types (add suffix “C” or “CA”), electrical characteristics apply in both directions.

Für bidirektionale Dioden (ergänze Suffix “C” oder “CA”) gelten die elektrischen Werte in beiden Richtungen.

Maximum ratings and Characteristics

Peak pulse power dissipation (10/1000 µs waveform)

Impuls-Verlustleistung (Strom-Impuls 10/1000 µs)

Steady state power dissipation

Verlustleistung im Dauerbetrieb

Peak forward surge current, 60 Hz half sine-wave

Stoßstrom für eine 60 Hz Sinus-Halbwelle

Max. instantaneous forward voltage

Augenblickswert der Durchlass-Spannung

Operating junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Thermal resistance junction to ambient air

Wärmewiderstand Sperrschicht – umgebende Luft

Thermal resistance junction to terminal

Wärmewiderstand Sperrschicht – Anschluss

= 25°C

= 75°C

= 25°C

= 25 A

PPM

Grenz- und Kennwerte

1500 W

)

100 A

)

< 3.0 V

)

-50...+150°C

< 33 K/W

)

< 10 K/W

M(AV)

FSM

thA

thT

TVS diodes having breakdown voltage

= 220 ... 550 V: please refer to datasheet 1.5SMC220

TVS-Dioden mit Abbruchspannung

= 220 ... 550 V: siehe Datenblatt 1.5SMC220

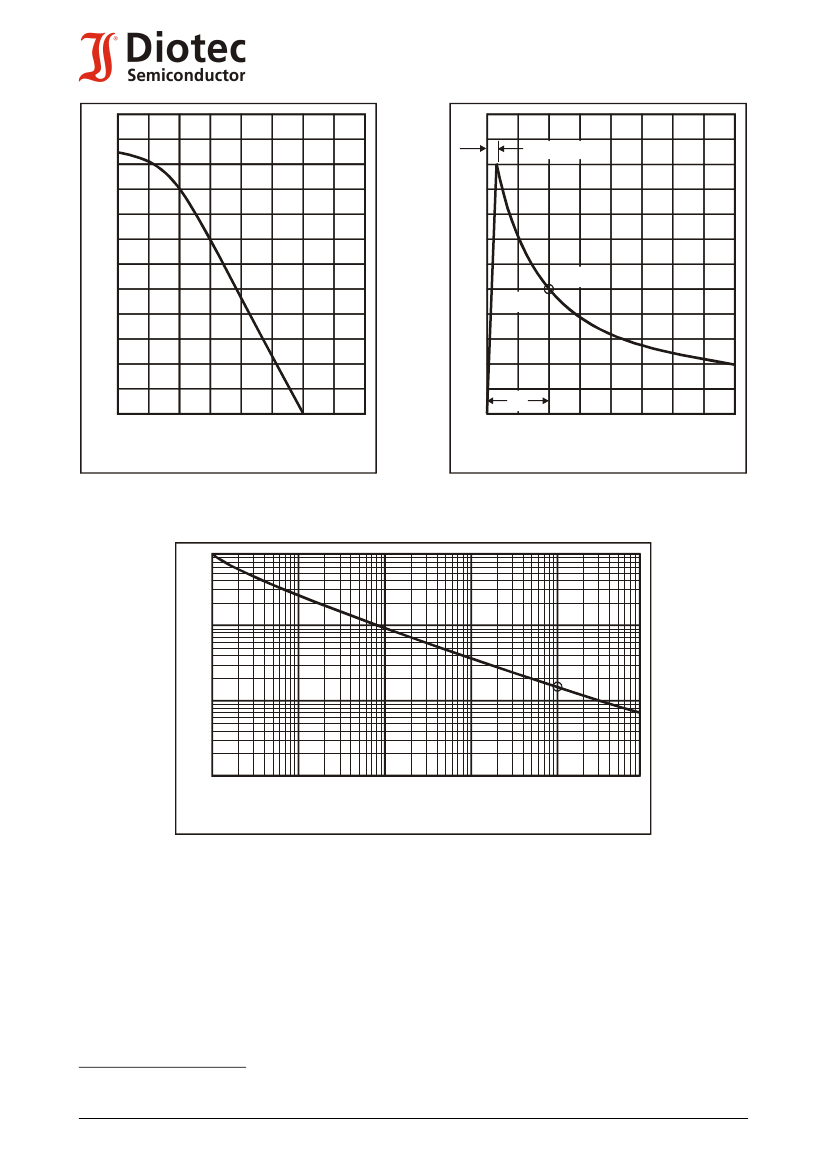

Non-repetitive pulse see curve I

= f (t) / P

= f (t)

Höchstzulässiger Spitzenwert eines einmaligen Impulses, siehe Kurve I

= f (t) / P

= f (t)

Unidirectional diodes only – Nur für unidirektionale Dioden

Mounted on P.C. board with 50 mm

copper pads at each terminal

Montage auf Leiterplatte mit 50 mm

Kupferbelag (Lötpad) an jedem Anschluss

http://www.diotec.com/
