41772-0493: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

41772-0493 Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal

41772-0493 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	KK
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	41772
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

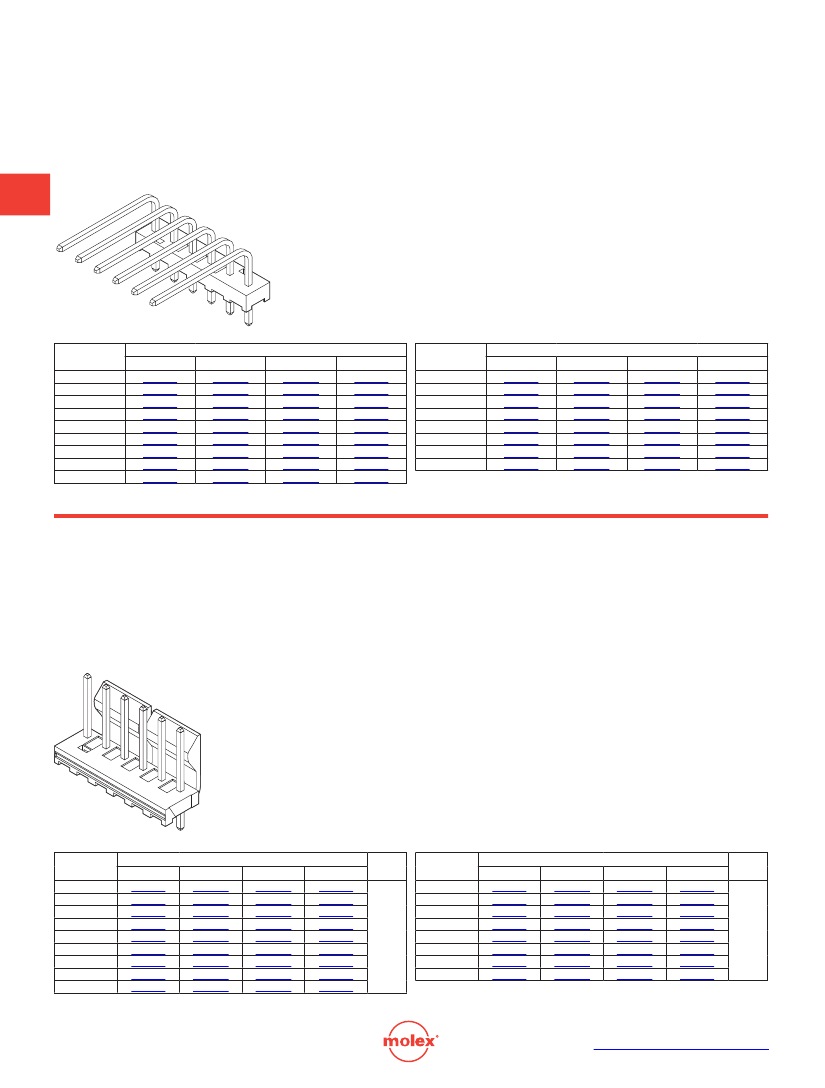

3.96mm (.156") Pitch

Solid Header

41772

Right Angle

Without Pegs

Features and Benefits

■

Sizes 2 to 18 circuits

■

Optional voided circuits available (contact Molex)

■

Various pin lengths available (contact Molex)

■

End-to-end stackable

Reference Information

Product Specification: PS-08-50

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

TUV File No.: R75108

Mates With: 2139, 2145, 3069, 6442, 7674, 7675,

41695 and 41815

Designed In: Inches

Electrical

Voltage: 250V

Current: 7.0A

Contact Resistance: 6 milliohms max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 50,000 Megohms min.

Mechanical

Durability:

Tin—25 cycles max.

Gold—100 cycles max.

Physical

Housing: Polyester, UL 94V-0

Contact: Brass, 1.14mm (.045") square

Plating: See Table

Operating Temperature: -40 to +105˚C

3.00 to 7.92mm (.118 to .312") Pitch PCB and Wire Connectors

Circuits

Order No.

Tin

26-60-3020

26-60-3030

26-60-3040

26-60-3050

26-60-3060

26-60-3070

26-60-3080

26-60-3090

26-60-3100

15m" Select Gold

41772-0463

41772-0464

41772-0465

41772-0466

41772-0467

41772-0468

41772-0469

41772-0470

41772-0471

30m" Select Gold

41772-0480

41772-0481

41772-0482

41772-0483

41772-0484

41772-0485

41772-0486

41772-0487

41772-0488

Overall Gold

26-61-3020

26-61-3030

26-61-3040

26-61-3050

26-61-3060

26-61-3070

26-61-3080

26-61-3090

26-61-3100

Circuits

Order No.

Tin

26-60-3110

26-60-3120

26-60-3130

26-60-3140

26-60-3150

26-60-3160

26-60-3170

26-60-3180

15m" Select Gold

41772-0472

41772-0473

41772-0474

41772-0475

41772-0476

41772-0477

41772-0478

41772-0479

30m" Select Gold

41772-0489

41772-0490

41772-0491

41772-0492

41772-0493

41772-0494

41772-0495

41772-0496

Overall Gold

26-61-3110

26-61-3120

26-61-3130

26-61-3140

26-61-3150

26-61-3160

26-61-3170

26-61-3180

Circuit number designation is for ordering purposes only, check corresponding circuit designation on mating connector

3.96mm (.156") Pitch

Solid Header

41791

Vertical, Friction Lock

Features and Benefits

■

Sizes 2 to 18 circuits

■

Provides left to right polarization when mated with

41695 or 43061 .156" crimp housing with the optional

polarizing ribs

■

Various pin lengths available

■

Voided circuits available (contact Molex)

■

Passive locking feature is used to maintain

interconnection, ideal for high vibration

applications

■

End-to-end stackable

Reference Information

Product Specification: PS-08-50

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

TUV File No.: R75108

Mates With: 2139, 2145, 3069, 6442, 7674, 7675,

41695 and 41815

Designed In: Inches

Electrical

Voltage: 250V

Current: 7.0A

Contact Resistance: 6 milliohms max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 50K Megohms min.

Mechanical

Durability: in—25 cycles max.

Gold—100 cycles max.

Physical

Housing: Polyester, UL 94V-0

Contact: Brass, 1.14mm (.045") pin

Plating: See Table

Operating Temperature: 0 to +75˚C

Circuits

Order No.

Tin

26-60-4020

26-60-4030

26-60-4040

26-60-4050

26-60-4060

26-60-4070

26-60-4080

26-60-4090

26-60-4100

15m" Select Gold 30m" Select Gold

41791-0832

41791-0849

41791-0833

41791-0850

41791-0834

41791-0851

41791-0835

41791-0852

41791-0836

41791-0853

41791-0837

41791-0854

41791-0838

41791-0855

41791-0839

41791-0856

41791-0840

41791-0857

Overall Gold

26-61-4020

26-61-4030

26-61-4040

26-61-4050

26-61-4060

26-61-4070

26-61-4080

26-61-4090

26-61-4100

Lead-free

Circuits

Order No.

Tin

26-60-4110

26-60-4120

26-60-4130

26-60-4140

26-60-4150

26-60-4160

26-60-4170

26-60-4180

15m" Select Gold 30m" Select Gold

41791-0841

41791-0858

41791-0842

41791-0859

41791-0843

41791-0860

41791-0844

41791-0861

41791-0845

41791-0862

41791-0846

41791-0863

41791-0847

41791-0864

41791-0848

41791-0865

Overall Gold

26-61-4110

26-61-4120

26-61-4130

26-61-4140

26-61-4150

26-61-4160

26-61-4170

26-61-4180

Lead-free

Yes

Circuit number designation is for ordering purposes only, check corresponding circuit designation on mating connector

D-8 MX07
